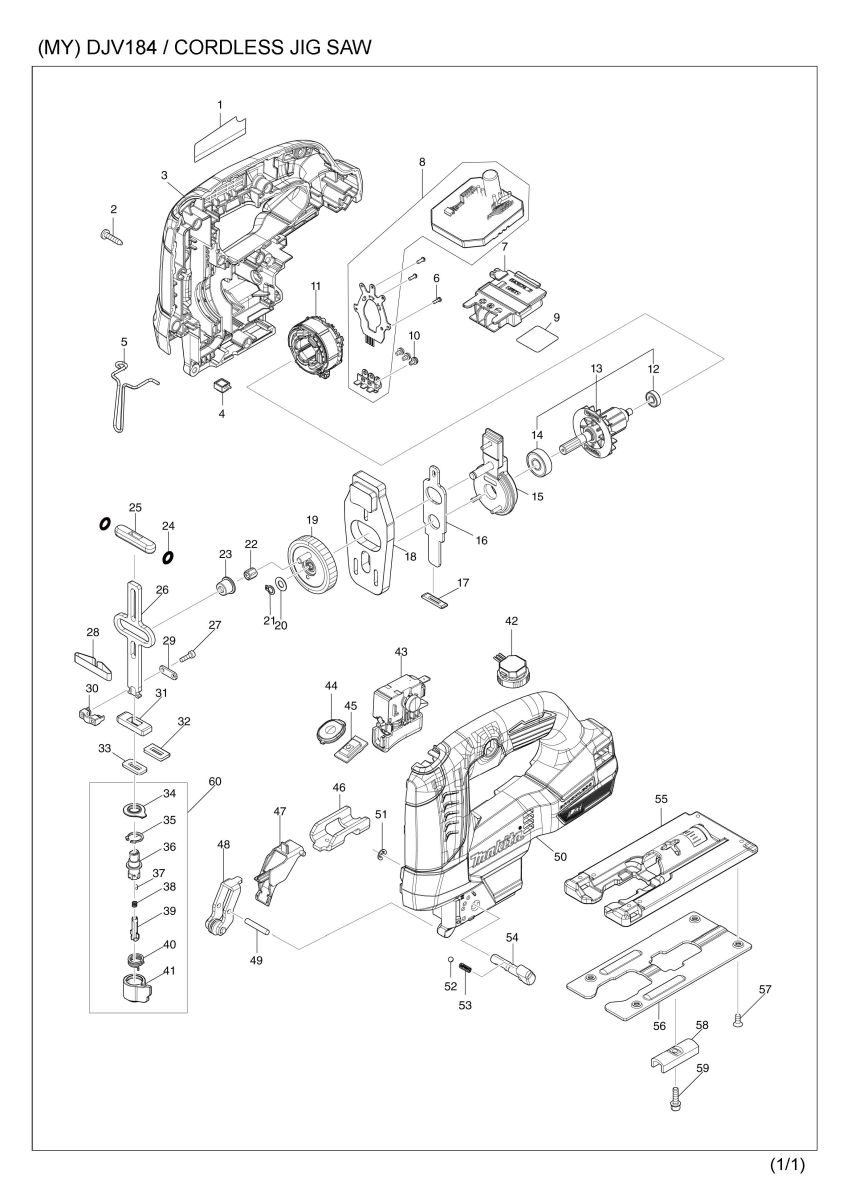

Part Diagram
Total: 92 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 8117T5-5 | DJV184 NAME PLATE | 1 | |
| 2 | 266326-2 | TAPPING SCREW 4X18 | 11 | |
| 3 | 183V10-5 | HOUSING SET | 1 | |
| 3 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 3 | D10 | INC. 50 | ||
| 4 | 620713-3 | LED CIRCUIT | 1 | |
| 5 | 323748-0 | SAFETY WIRE | 1 | |
| 6 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 7 | 643874-2 | TERMINAL | 1 | |
| 8 | 620H99-3 | CONTROLLER | 1 | |
| 9 | 8117U4-4 | DJV184 SERIAL NO. LABEL | 1 | |
| 10 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 11 | 629B14-8 | STATOR | 1 | |
| 12 | 210039-7 | BALL BEARING 695DDW | 1 | |
| 13 | 510536-6 | ROTOR ASS'Y | 1 | |
| 13 | D10 | INC. 12,14 | ||
| 14 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 15 | 144820-3 | BEARING CASE COMPLETE | 1 | |
| 16 | 347249-4 | PUSH PLATE | 1 | |
| 17 | 416703-0 | DUST SEAL | 1 | |
| 18 | 310812-6 | BALANCE PLATE | 1 | |
| 19 | 141H68-6 | GEAR COMPLETE | 1 | |
| 20 | 253715-0 | FLAT WASHER 6 | 1 | |
| 21 | 961002-0 | RETAINING RING S-6 | 1 | |
| 22 | 212265-4 | NEEDLE CAGE 508 | 1 | |
| 23 | 257872-6 | SHOULDER SLEEVE 8 | 1 | |
| 24 | 213038-8 | O RING 5 | 2 | |
| 25 | 313082-6 | SLIDER GUIDE | 1 | |
| 26 | 347966-6 | SLIDER | 1 | |
| 27 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 28 | 232183-0 | LEAF SPRING | 1 | |
| 29 | 347247-8 | PLATE | 1 | |
| 30 | 310811-8 | BLADE CLAMP | 1 | |
| 31 | 313086-8 | SLIDER SUPPORT | 1 | |
| 32 | 344686-3 | SEAL PLATE | 1 | |
| 33 | 423307-1 | POLYURETHANE SPONGE SEAL | 1 | |
| 34 | 424437-1 | DUST COVER | 1 | |
| 35 | 962063-3 | RETAINING RING R-13 | 1 | |
| 36 | 310810-0 | BLADE GUIDE | 1 | |
| 37 | 256528-8 | PIN 2 | 1 | |
| 38 | 233314-4 | COMPRESSION SPRING 4 | 1 | |
| 39 | 310485-5 | LOCK PIN | 1 | |
| 40 | 233591-8 | TORSION SPRING 10 | 1 | |
| 41 | 452850-3 | INSERT HOLDER | 1 | |
| 42 | 620D30-5 | DIAL CIRCUIT | 1 | |
| 43 | 650025-0 | SWITCH C3JW-4B-2AL-R | 1 | |
| 44 | 142303-7 | SWITCH PLATE COMPLETE | 1 | |
| 45 | 620J21-2 | SWITCH UNIT | 1 | |
| 46 | 347251-7 | HOLDER | 1 | |
| 47 | 457866-3 | RETAINER GUIDE | 1 | |
| 48 | 144629-3 | RETAINER COMPLETE | 1 | |
| 49 | 256206-0 | PIN 4 | 1 | |
| 50 | 183V10-5 | HOUSING SET | 1 | |
| 50 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 50 | D10 | INC. 3 | ||
| 51 | 961011-9 | STOP RING E-4 | 1 | |
| 52 | 216008-6 | STEEL BALL 4 | 1 | |
| 53 | 233151-6 | COMPRESSION SPRING 4 | 1 | |
| 54 | 271441-9 | LEVER 19 | 1 | |
| 55 | 312C90-2 | BASE | 1 | |
| 56 | 345441-6 | BASE PLATE | 1 | |
| 57 | 912107-9 | COUNTERSUNK HEAD SCREW M4X8 | 4 | |
| 58 | 344685-5 | CLAMP PLATE | 1 | |
| 59 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 1 | |
| 60 | 135941-2 | BLADE GUIDE ASS'Y | 1 | |
| 60 | D10 | INC. 34-41 | ||
| A01 | B-06460 | JIGSAW BLADE B-50 | 1 | |
| A02 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A03 | 457867-1 | COVER PLATE | 1 | |
| A06B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A06B | C10 | 453974-8 | LATCH | 4 |
| A07B | 8051S1-0 | DJV184RFJ PLASTIC CASE LABEL | 2 | |
| A08B | 8051R2-1 | DJV184RFJ INDICATION LABEL | 1 | |
| A09B | 8352U6-6 | INNER TRAY | 1 | |
| A10B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A10B | D10 | COMPO-PARTS | ||
| A11B | 450128-8 | BATTERY COVER | 1 | |
| A12B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A14 | A-85737 | JIGSAW BLADE NO.B22 | 1 | |
| A15 | A-85628 | JIGSAW BLADE NO.B10 | 1 | |
| A16 | A-85793 | JIGSAW BLADE NO.BR13 | 1 | |
| F02 | 194416-0 | SHEET 10000 SET | 1 | |
| F03 | 192557-6 | ANTI-SPLITERING DEVICE | 1 | |
| F05 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F06 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F07 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F08 | 198704-7 | GUIDE RAIL ADAPTER SET | 1 | |
| F09 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F10 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F14 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F15 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F16 | 194910-2 | POSITION SHEET 1900 SET | 1 |
