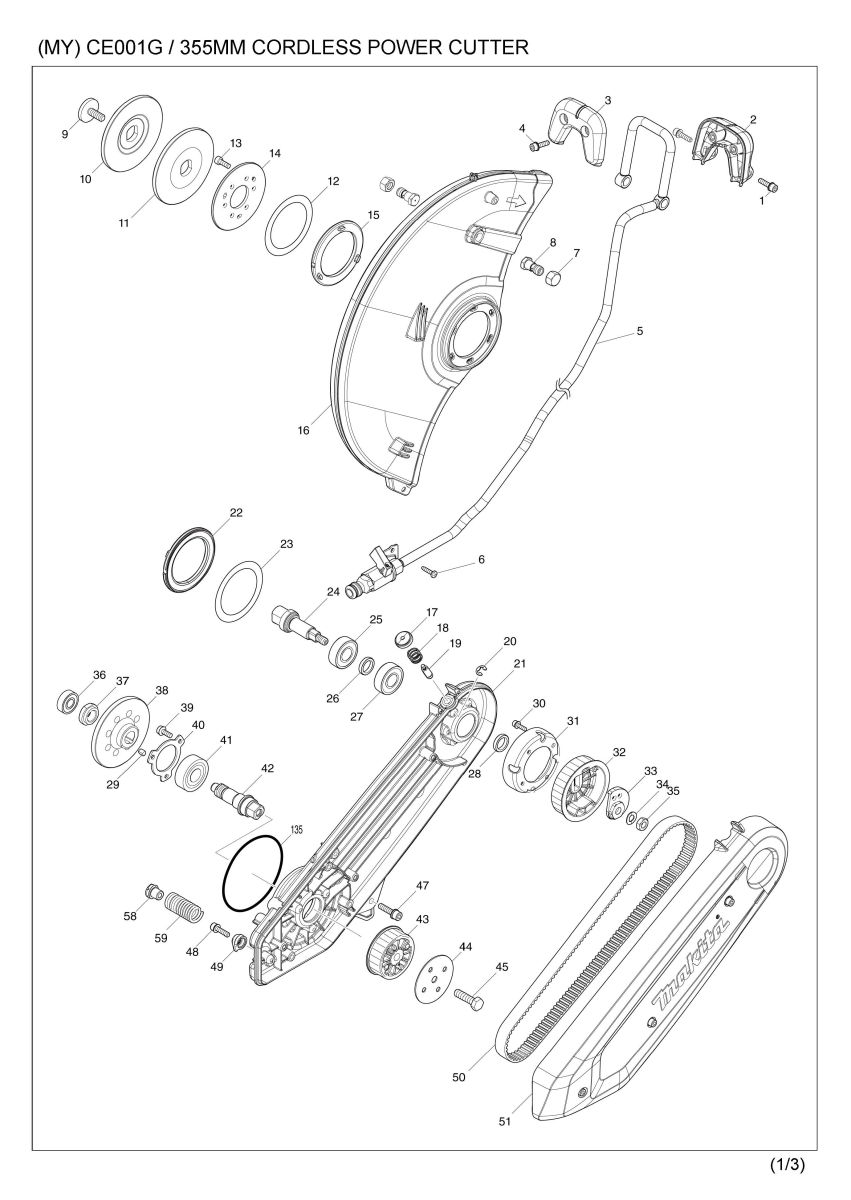

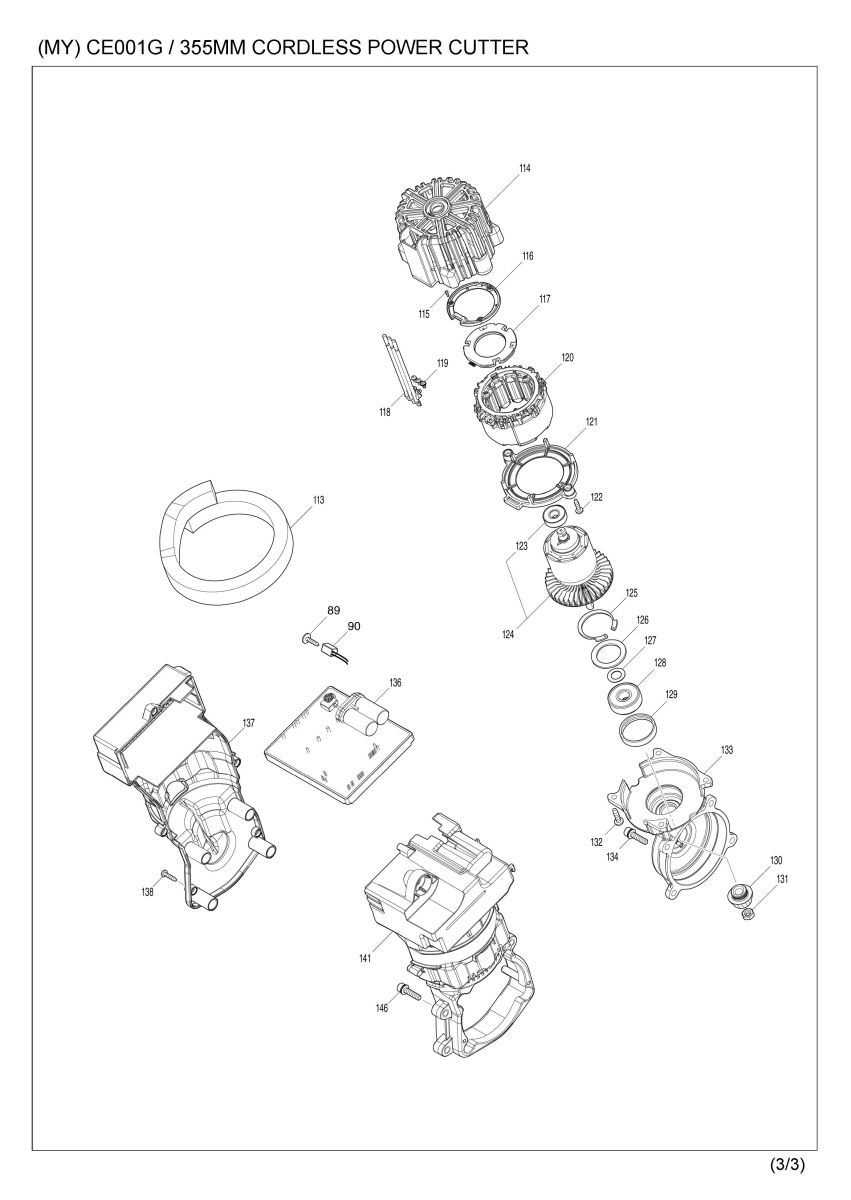

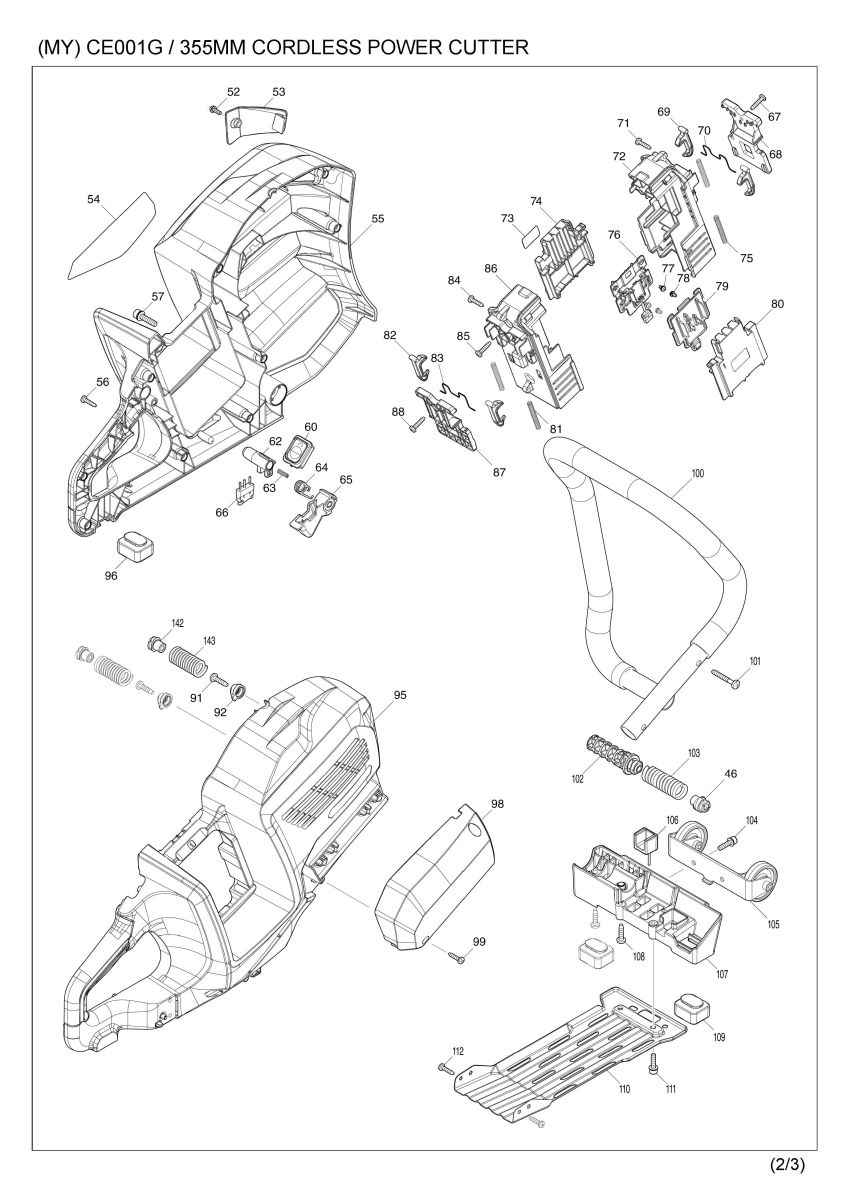

Part Diagram
Total: 175 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 2 | |
| 2 | 183U98-9 | WHEEL COVER GRIP SET | 1 | |
| 2 | D10 | INC. 3 | ||
| 3 | 183U98-9 | WHEEL COVER GRIP SET | 1 | |
| 3 | D10 | INC. 2 | ||
| 4 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 2 | |
| 5 | 122B46-9 | HOSE ASSEMBLY | 1 | |
| 6 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 7 | 252306-4 | HEX.NUT M10 | 2 | |
| 8 | 265C26-9 | HEX.BOLT M10X21 | 2 | |
| 9 | 266976-3 | HEX. BOLT M8X25 | 1 | |
| 10 | 224622-4 | FLANGE 92 | 1 | |
| 11 | 224622-4 | FLANGE 92 | 1 | |
| 12 | 424792-1 | SLIDING DISK | 1 | |
| 13 | 922217-4 | HEX. SOCKET HEAD BOLT M5X14 | 6 | |
| 14 | 347917-9 | SPINDLE PLATE 83 | 1 | |
| 15 | 422822-2 | RUBBER RING 56 | 1 | |
| 16 | 312C31-8 | WHEEL COVER 355 | 1 | |
| 016-1 | 312D96-6 | WHEEL COVER 355 | 1 | |
| 17 | 451485-7 | PIN CAP | 1 | |
| 017-1 | 137186-8 | PIN CAP ASS'Y | 1 | |
| 18 | 233089-5 | COMPRESSION SPRING 12 | 1 | |
| 19 | 256947-8 | SHOULDER PIN 7 | 1 | |
| 20 | 961012-7 | STOP RING E-6 | 1 | |
| 21 | 312C29-5 | CUTTING DEVICE | 1 | |
| 22 | 422822-2 | RUBBER RING 56 | 1 | |
| 23 | 424792-1 | SLIDING DISK | 1 | |
| 24 | 327927-2 | SPINDLE | 1 | |
| 25 | 211238-4 | BALL BEARING 6202LLU | 1 | |
| 26 | 257868-7 | RING 15 | 1 | |
| 27 | 211238-4 | BALL BEARING 6202LLU | 1 | |
| 28 | 257868-7 | RING 15 | 1 | |
| 29 | 254201-4 | KEY 4 | 1 | |
| 30 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 2 | |
| 31 | 347915-3 | PULLEY BOTTOM PLATE | 1 | |
| 32 | 222201-2 | PULLEY 17-70.5 | 1 | |
| 33 | 313415-5 | ECCENTRIC DISK | 1 | |
| 34 | 267822-3 | SPRING WASHER 8 | 1 | |
| 35 | 264022-6 | HEX. NUT M8X1 | 1 | |
| 035-1 | 264053-5 | HEX. NUT M8X1 | 1 | |
| 36 | 211062-5 | BALL BEARING 6000ZZ | 1 | |
| 37 | 252429-8 | NUT M15-23 | 1 | |
| 38 | 227922-1 | SPIRAL BEVEL GEAR 53 | 1 | |
| 39 | 265074-0 | PAN HEAD SCREW M5X16 | 3 | |
| 40 | 285049-3 | BEARING RETAINER 33-59 | 1 | |
| 41 | 211278-2 | BALL BEARING 6203DDW | 1 | |
| 42 | 327926-4 | GEAR SHAFT | 1 | |
| 43 | 222202-0 | PULLEY 17-54.6 | 1 | |
| 44 | 347918-7 | PULLEY PLATE 59 | 1 | |
| 45 | 265C27-7 | HEX.BOLT M8X30 | 1 | |
| 045-1 | 265D39-6 | HEX.BOLT M8X30 | 1 | |
| 46 | 312C35-0 | SPRING HOLDER C | 1 | |
| 47 | 922343-9 | H.S.H.BOLT M6X25 WITH WR | 1 | |
| 48 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 49 | 312C33-4 | SPRING HOLDER A | 1 | |
| 50 | 225106-5 | SYNCHRO BELT 15-750 | 1 | |
| 51 | 141G40-2 | BELT COVER COMPLETE | 1 | |
| 51 | C10 | 265B09-3 | H.S. HEAD BOLT M5X30 WITH WR | 3 |
| 52 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 53 | 413C66-3 | LENS | 1 | |
| 54 | 8116C0-0 | CE001G NAME PLATE | 1 | |
| 55 | 183W18-5 | HANDLE SET | 1 | |
| 55 | C10 | 8040V4-6 | XGT LOGO LABEL | 1 |
| 55 | D10 | INC. 95 | ||
| 055-1 | 183Y19-5 | HANDLE SET | 1 | |
| 055-1 | C10 | 8040V4-6 | XGT LOGO LABEL | 1 |
| 055-1 | D10 | INC. 95 | ||
| 56 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 57 | 922343-9 | H.S.H.BOLT M6X25 WITH WR | 1 | |
| 58 | 312C34-2 | SPRING HOLDER B | 1 | |
| 59 | 232729-2 | COMPRESSION SPRING 13 | 1 | |
| 60 | 141G39-7 | SWITCH CIRCUIT COMPLETE | 1 | |
| 62 | 413C73-6 | LOCK OFF BUTTON | 1 | |
| 63 | 232444-8 | COMPRESSION SPRING 4 | 1 | |
| 64 | 232732-3 | TORSION SPRING 10 | 1 | |
| 65 | 413C72-8 | SWITCH LEVER | 1 | |
| 66 | 632T61-8 | SWITCH UNIT | 1 | |
| 67 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 68 | 413C77-8 | LOCK COVER | 1 | |
| 69 | 413C76-0 | BATTERY ADAPTER LOCK | 2 | |
| 70 | 232731-5 | LEVER SPRING | 1 | |
| 71 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 72 | 183U87-4 | TERMINAL BOX SET | 1 | |
| 72 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 72 | D10 | INC. 86 | ||
| 73 | 8116C7-6 | CE001G SERIAL NO. LABEL | 1 | |
| 74 | 183U89-0 | BATTERY ADAPTER SET | 1 | |
| 74 | D10 | INC. 80 | ||
| 074-1 | 413C74-4 | BATTERY ADAPTER L | 1 | |
| 75 | 232730-7 | COMPRESSION SPRING 5 | 2 | |
| 76 | 632T08-2 | TERMINAL UNIT | 1 | |
| 77 | 652031-1 | PAN HEAD SCREW M3X6 | 2 | |
| 78 | 652031-1 | PAN HEAD SCREW M3X6 | 2 | |
| 79 | 632T08-2 | TERMINAL UNIT | 1 | |
| 80 | 183U89-0 | BATTERY ADAPTER SET | 1 | |
| 80 | D10 | INC. 74 | ||
| 080-1 | 413C75-2 | BATTERY ADAPTER R | 1 | |
| 81 | 232730-7 | COMPRESSION SPRING 5 | 2 | |
| 82 | 413C76-0 | BATTERY ADAPTER LOCK | 2 | |
| 83 | 232731-5 | LEVER SPRING | 1 | |
| 84 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 85 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 86 | 183U87-4 | TERMINAL BOX SET | 1 | |
| 86 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 86 | D10 | INC. 72 | ||
| 87 | 413C77-8 | LOCK COVER | 1 | |
| 88 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 89 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| 90 | 620H50-3 | LED CIRCUIT | 1 | |
| 91 | 266021-4 | TAPPING SCREW 5X20 | 2 | |
| 92 | 312C33-4 | SPRING HOLDER A | 2 | |
| 95 | 183W18-5 | HANDLE SET | 1 | |
| 95 | C10 | 8040V4-6 | XGT LOGO LABEL | 1 |
| 95 | D10 | INC. 55 | ||
| 095-1 | 183Y19-5 | HANDLE SET | 1 | |
| 095-1 | C10 | 8040V4-6 | XGT LOGO LABEL | 1 |
| 095-1 | D10 | INC. 55 | ||
| 96 | 422823-0 | REAR FOOT | 1 | |
| 98 | 413C69-7 | HOSE COVER | 1 | |
| 098-1 | 136926-1 | HOSE COVER ASS'Y | 1 | |
| 098-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 99 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 100 | 327928-0 | FRONT GRIP 26 | 1 | |
| 100-1 | 327C20-0 | FRONT GRIP 26 | 1 | |
| 101 | 266373-3 | TAPPING SCREW 5X35 | 2 | |
| 102 | 413C71-0 | SPRING HOLDER D | 1 | |
| 103 | 232728-4 | COMPRESSION SPRING 12 | 1 | |
| 104 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 2 | |
| 105 | 122B47-7 | CASTER ASSEMBRY | 1 | |
| 106 | 424788-2 | DAMPER | 1 | |
| 107 | 312C32-6 | STAND SUPPORT | 1 | |
| 108 | 266021-4 | TAPPING SCREW 5X20 | 2 | |
| 109 | 422823-0 | REAR FOOT | 2 | |
| 110 | 347916-1 | BOTTOM GUARD | 1 | |
| 111 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 2 | |
| 112 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 113 | 422821-4 | SPONGE SHEET | 1 | |
| 114 | 413C70-2 | MOTOR HOUSING | 1 | |
| 115 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 116 | 687B69-9 | STOPPER | 1 | |
| 117 | 620E26-2 | CONTROLLER B | 1 | |
| 118 | 632T58-7 | LEAD UNIT | 1 | |
| 119 | 652031-1 | PAN HEAD SCREW M3X6 | 3 | |
| 120 | 629A92-2 | STATOR | 1 | |
| 121 | 459144-7 | BAFFLE PLATE | 1 | |
| 122 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 123 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 124 | 519717-9 | ROTOR ASS'Y | 1 | |
| 124 | D10 | INC. 123 | ||
| 124-1 | 519717-9 | ROTOR ASS'Y | 1 | |
| 124-1 | D10 | INC. 123 | ||
| 125 | 962211-4 | RETAINING RING R-42 | 1 | |
| 126 | 253545-9 | FLAT WASHER 28 | 1 | |
| 127 | 267212-0 | FLAT WASHER 12 | 1 | |
| 128 | 211132-0 | BALL BEARING 6301DDW | 1 | |
| 129 | 262085-6 | RUBBER RING 38 | 1 | |
| 130 | 227921-3 | SPIRAL BEVEL GEAR 15 | 1 | |
| 131 | 252178-7 | HEX. NUT M8-12 | 1 | |
| 132 | 266021-4 | TAPPING SCREW 5X20 | 4 | |
| 133 | 141G44-4 | GEAR HOUSING COMPLETE | 1 | |
| 134 | 922343-9 | H.S.H.BOLT M6X25 WITH WR | 4 | |
| 135 | 213806-9 | O RING 90 | 1 | |
| 136 | 620H49-8 | CONTROLLER | 1 | |
| 137 | 183U88-2 | MOTOR HOUSING COVER SET | 1 | |
| 137 | D10 | INC. 141 | ||
| 138 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 141 | 183U88-2 | MOTOR HOUSING COVER SET | 1 | |
| 141 | D10 | INC. 137 | ||
| 142 | 312C34-2 | SPRING HOLDER B | 2 | |
| 143 | 232729-2 | COMPRESSION SPRING 13 | 2 | |
| 146 | 922343-9 | H.S.H.BOLT M6X25 WITH WR | 5 | |
| A01 | 123121-2 | COUPLING SLEEVE | 1 | |
| A02 | 191W53-9 | RING SET | 1 | |
| A03 | 782037-6 | BOX WRENCH 13-19 | 1 | |
| A04 | E-12996 | DIAMOND WHEEL 355MM SEGMENTE | 1 |
