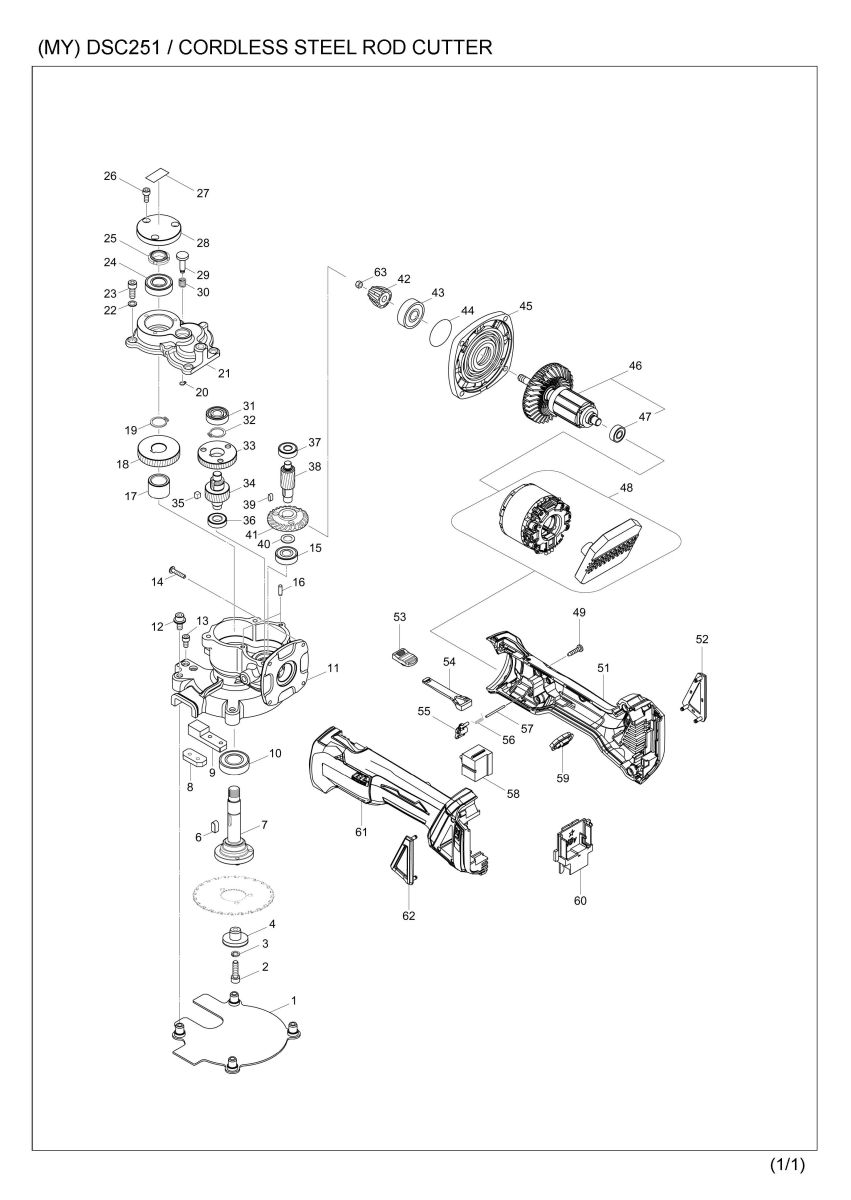

Part Diagram
Total: 78 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | SC09001030 | TIPPED SAW COVER | 1 | |
| 2 | SC07513090 | HEX. SOCKET HEAD BOLT M6X22 | 1 | |
| 3 | SC07651310 | SPRING WASHER 6 | 1 | |
| 4 | SC03510960 | BLADE GUIDE | 1 | |
| 6 | SC03701230 | KEY | 1 | |
| 7 | SC09004230 | SPINDLE (W/PIN) | 1 | |
| 8 | SC03510830 | MATERIAL GUIDE B | 1 | |
| 9 | SC03510880 | MATERIAL GUIDE A | 1 | |
| 10 | SC07101340 | BALL BEARING 6003VV | 1 | |
| 11 | SC03252320 | GEAR CASE | 1 | |
| 12 | SC07541020 | GT CAP SCREW M6X14 | 4 | |
| 13 | SC07512010 | HEX.SOCKET HEAD BOLT M5X10 | 4 | |
| 013-1 | SC07512010 | HEX.SOCKET HEAD BOLT M5X10 | 4 | |
| 14 | SC07554120 | TAPPING SCREW M4X30 | 4 | |
| 15 | SC07101010 | BALL BEARING 6000Z | 1 | |
| 16 | SC06601720 | PIN 4X20 | 2 | |
| 17 | SC03510860 | GEAR29 COLLAR | 1 | |
| 18 | SC03607830 | GEAR29 | 1 | |
| 19 | SC07410100 | CIRCLIP S17 | 1 | |
| 20 | SC07411250 | CIRCLIP STW5 | 1 | |
| 21 | SC03252330 | GEARCASE COVER | 1 | |
| 22 | SC00000066 | WASHER 6 | 4 | |
| 23 | SC07513020 | BOLT HB6X15 | 4 | |
| 24 | SC07000050 | BALL BEARING 6002VV | 1 | |
| 25 | SC07700240 | FINE U NUT M15X1 | 1 | |
| 26 | SC00000059 | HEX. SOCKET HEAD BOLT M5X12 | 3 | |
| 026-1 | SC00000059 | HEX. SOCKET HEAD BOLT M5X12 | 3 | |
| 27 | SC08014760 | CAUTION LABEL | 1 | |
| 28 | SC03252370 | SPINDLE COVER | 1 | |
| 29 | SC03510840 | LOCK BUTTON | 1 | |
| 30 | SC04008350 | LOCK SPRING | 1 | |
| 31 | SC07101010 | BALL BEARING 6000Z | 1 | |
| 32 | SC00000378 | CIRCLIP S16 | 1 | |
| 33 | SC03607810 | GEAR41 | 1 | |
| 34 | SC03607820 | GEAR16 | 1 | |
| 35 | SC03701660 | GEAR16 KEY | 1 | |
| 36 | SC07104010 | BALL BEARING 6900ZZ | 1 | |
| 37 | SC07000040 | BALL BEARING 608VV | 1 | |
| 38 | SC03607800 | GEAR13 | 1 | |
| 39 | SC03701670 | GEAR KEY | 1 | |
| 40 | SC03301660 | GEAR13 WASHER | 1 | |
| 41 | 227502-3 | SPIRAL BEVEL GEAR 39 | 1 | |
| 041-1 | 227960-3 | SPIRAL BEVEL GEAR 39 | 1 | |
| 041-2 | 227B65-1 | SPIRAL BEVEL GEAR 39 | 1 | |
| 42 | 221442-7 | SPIRAL BEVEL GEAR 19 | 1 | |
| 042-1 | 227997-0 | SPIRAL BEVEL GEAR 19 | 1 | |
| 43 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 44 | 213445-5 | O-RING 26 | 1 | |
| 45 | 319214-3 | GEAR HOUSING COVER | 1 | |
| 46 | 510329-1 | ROTOR ASS'Y | 1 | |
| 46 | D10 | INC. 47 | ||
| 47 | 210034-7 | BALL BEARING 607LLB | 1 | |
| 48 | 629176-0 | STATOR COMPLETE | 1 | |
| 048-1 | 629B61-9 | STATOR | 1 | |
| 49 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 51 | 187997-1 | MOTOR HOUSING SET | 1 | |
| 51 | D10 | INC. 61 | ||
| 52 | 455450-8 | DUST COVER R | 1 | |
| 53 | 455447-7 | SWITCH KNOB | 1 | |
| 54 | 455446-9 | SWITCH LEVER | 1 | |
| 55 | 455448-5 | LEVER | 1 | |
| 56 | 231679-8 | TORSION SPRING 2 | 1 | |
| 57 | 268330-7 | PIN 2 | 1 | |
| 58 | 650579-7 | SWITCH 1246.3223 | 1 | |
| 59 | 142901-7 | INDICATOR PANEL COMPLETE | 1 | |
| 60 | 643874-2 | TERMINAL | 1 | |
| 61 | 187997-1 | MOTOR HOUSING SET | 1 | |
| 61 | D10 | INC. 51 | ||
| 62 | 455449-3 | DUST COVER L | 1 | |
| 63 | 252186-8 | HEX. NUT M6 | 1 | |
| 64 | 620K33-1 | CONTROLLER | 1 | |
| 65 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | SC09009190 | PLASTIC CASE SET | 1 | |
| A02 | SC08106610 | DUST CASE | 1 | |
| A03 | SC08200100 | LONG HEX WRENCH M5 | 1 | |
| A04 | SC09003260 | FLANGELESS BLADE | 1 | |
| A04-1 | E-11097 | EFFICUT METAL FOR METAL CUTTIN | 1 | |
| A05 | 153489-2 | GRIP 36 COMPLETE | 1 |
