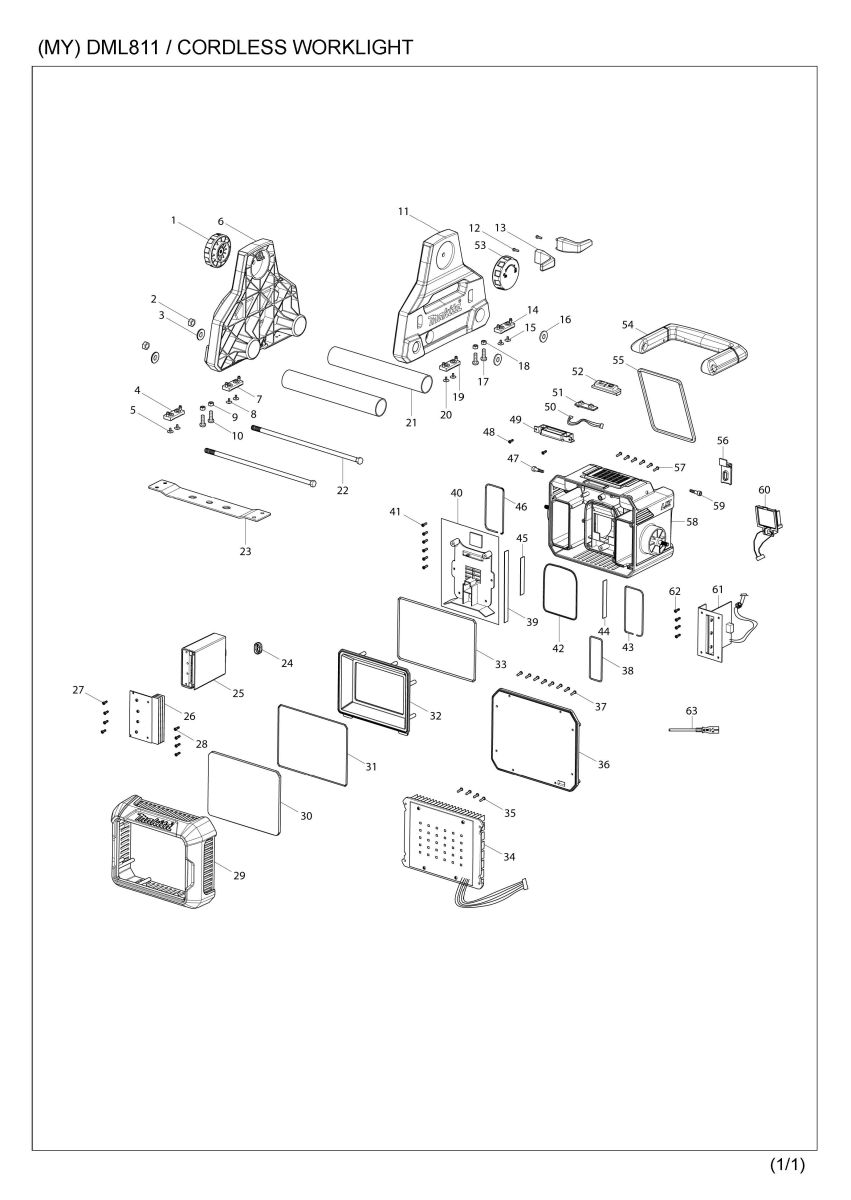

Part Diagram
Total: 64 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | GM00002160 | LATCH KNOB ASSY | 1 | |
| 2 | GM00002158 | NUT M8 | 2 | |
| 3 | GM00002157 | METAL OD20XID8.5X2MM | 2 | |
| 4 | GM00002154 | RUBBER FOOT | 1 | |
| 5 | GM00002164 | SCREW 3X6 PWB | 2 | |
| 6 | GM00002162 | STAND LEFT ASSY | 1 | |
| 7 | GM00002154 | RUBBER FOOT | 1 | |
| 8 | GM00002164 | SCREW 3X6 PWB | 2 | |
| 9 | GM00002155 | NUT M5 | 2 | |
| 10 | GM00002156 | SCREW 5X15 PM | 2 | |
| 11 | GM00002161 | STAND RIGHT ASSY | 1 | |
| 12 | GM00002165 | SCREW 3X18 PT | 2 | |
| 13 | GM00002159 | AC POWER CORD HOOKS | 2 | |
| 14 | GM00002154 | RUBBER FOOT | 1 | |
| 15 | GM00002164 | SCREW 3X6 PWB | 2 | |
| 16 | GM00002157 | METAL OD20XID8.5X2MM | 2 | |
| 17 | GM00002156 | SCREW 5X15 PM | 2 | |
| 18 | GM00002155 | NUT M5 | 2 | |
| 19 | GM00002154 | RUBBER FOOT | 1 | |
| 20 | GM00002164 | SCREW 3X6 PWB | 2 | |
| 21 | GM00002153 | STAND HOLDING TUBE | 2 | |
| 22 | GM00002152 | METAL M8 BOLT | 2 | |
| 23 | GM00002151 | BASE HOLDING PLATE | 1 | |
| 24 | GM00002150 | AC SOCKET HOLDER O-RING | 1 | |
| 25 | GM00002148 | EU AC POWER ASSY | 1 | |
| 26 | GM00002145 | AC POWER HEAT SINK ASSY | 1 | |
| 27 | GM00002149 | SCREW 3X14 PB NI | 4 | |
| 28 | GM00002165 | SCREW 3X18 PT | 4 | |
| 29 | GM00002114 | FRONT COVER ASSY | 1 | |
| 30 | GM00002115 | LENS ASSY | 1 | |
| 31 | GM00002116 | LENS O-RING | 1 | |
| 32 | GM00002117 | REFLECTOR ASSY | 1 | |
| 33 | GM00002118 | RUBBER HEAT SINK O-RING A | 1 | |
| 34 | GM00002119 | LED PCBA ASSY | 1 | |
| 35 | GM00002165 | SCREW 3X18 PT | 4 | |
| 36 | GM00002120 | MID-BODY COVER | 1 | |
| 37 | GM00002165 | SCREW 3X18 PT | 8 | |
| 38 | GM00002133 | MID-BODY O-RING | 1 | |
| 39 | GM00002166 | EVA-B | 1 | |
| 40 | GM00002130 | TERMINAL HOLDING PLATE ASSY | 1 | |
| 41 | GM00002165 | SCREW 3X18 PT | 6 | |
| 42 | GM00002131 | TERMINAL HOLDING PLATE O-RING | 1 | |
| 43 | GM00002132 | MID-BODY O-RING | 1 | |
| 44 | GM00002134 | EVA-B | 1 | |
| 45 | GM00002134 | EVA-B | 1 | |
| 46 | GM00002132 | MID-BODY O-RING | 1 | |
| 47 | GM00002137 | INSIDE-HEX SCREW | 1 | |
| 48 | GM00002163 | SCREW 3X14 PB NI | 2 | |
| 048-1 | GM00002149 | SCREW 3X14 PB NI | 2 | |
| 49 | GM00002138 | SWITCH HOLDER | 1 | |
| 50 | GM00002139 | 4P WAFER | 1 | |
| 51 | GM00002140 | SWITCH PCBA ASSY | 1 | |
| 52 | GM00002141 | SWITCH ASSY | 1 | |
| 53 | GM00002160 | LATCH KNOB ASSY | 1 | |
| 54 | GM00002144 | HANDLE ASSY | 1 | |
| 55 | GM00002143 | LATCH O-RING | 1 | |
| 56 | GM00002142 | AC SOCKET O-RING | 1 | |
| 57 | GM00002165 | SCREW 3X18 PT | 6 | |
| 58 | GM00002136 | MID-BODY ASSY | 1 | |
| 59 | GM00002137 | INSIDE-HEX SCREW | 1 | |
| 60 | GM00002135 | BATTERY HOLDER ASSY | 1 | |
| 61 | GM00002121 | MAIN PCBA ASSY | 1 | |
| 62 | GM00002165 | SCREW 3X18 PT | 4 | |
| 63 | GM00002126 | BS AC POWER CORD | 1 |
