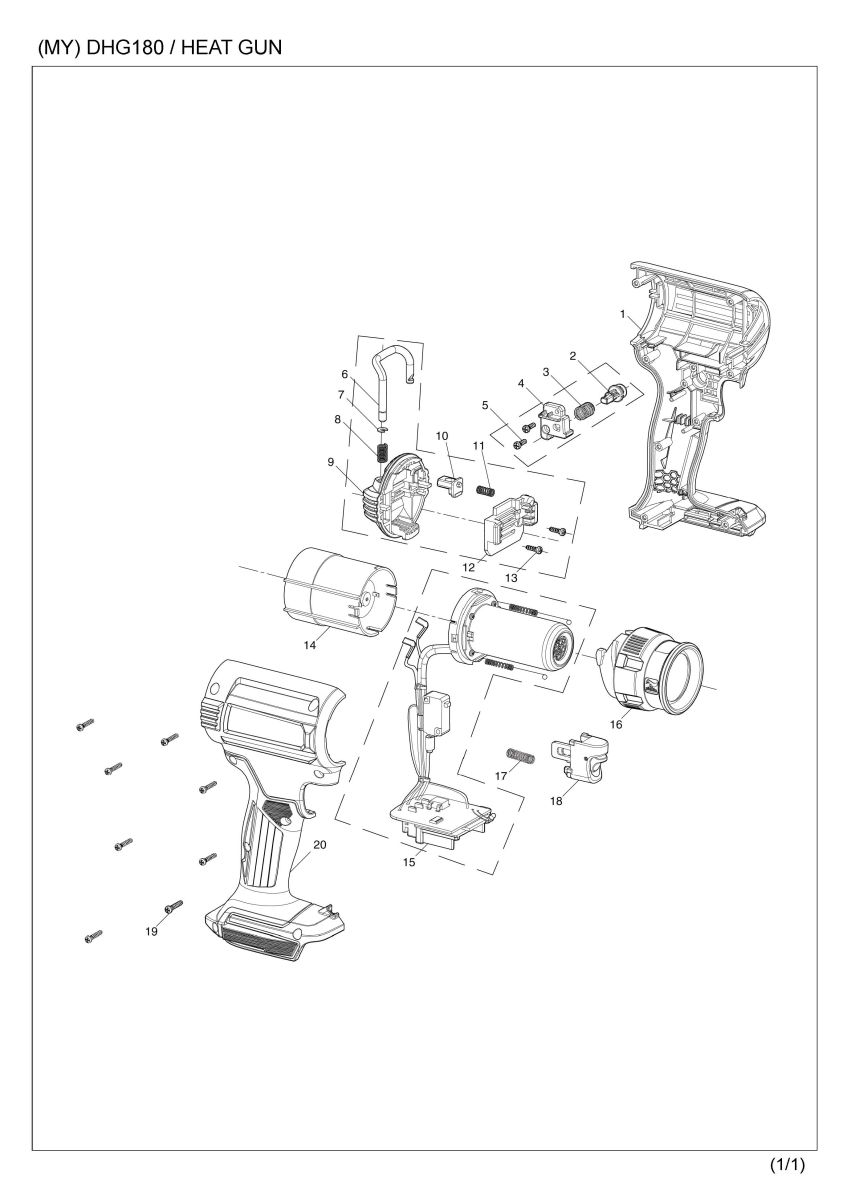

Part Diagram
Total: 32 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | PR00000379 | HOUSING ASSEMBLY | 1 | |
| 1 | D10 | INC. 20 | ||
| 2 | PR00000380 | LOCK ON BUTTON | 1 | |
| 3 | PR00000381 | SPRING9 | 1 | |
| 4 | PR00000382 | SUPPORT FRAME | 1 | |
| 5 | PR00000293 | TAPPING SCREW ST2.9X10 | 2 | |
| 6 | PR00000383 | HOOK | 1 | |
| 7 | PR00000384 | SNAP RING | 1 | |
| 8 | PR00000385 | SPRING6 | 1 | |
| 9 | PR00000386 | REAR COVER | 1 | |
| 10 | PR00000387 | HOOK RELEASE BUTTON | 1 | |
| 11 | PR00000388 | SPRING5 | 1 | |
| 12 | PR00000389 | INNER COVER | 1 | |
| 13 | PR00000293 | TAPPING SCREW ST2.9X10 | 2 | |
| 14 | PR00000390 | MOTOR ASSEMBLY | 1 | |
| 014-1 | PR00000515 | MOTOR ASSEMBLY | 1 | |
| 15 | PR00000391 | HEATER ASSEMBLY | 1 | |
| 16 | PR00000392 | FRONT COVER ASSEMBLY | 1 | |
| 17 | PR00000393 | SPRING 4 | 1 | |
| 18 | PR00000394 | TRIGGER ASSEMBLY | 1 | |
| 19 | PR00000395 | TAPPING SCREW ST2.9X16 | 8 | |
| 20 | PR00000379 | HOUSING ASSEMBLY | 1 | |
| 20 | D10 | INC. 1 | ||
| A03A | PR00000404 | PLASTIC CASE | 1 | |
| A03B | PR00000404 | PLASTIC CASE | 1 | |
| A05 | PR00000028 | GLASS PROTECTION NOZZLE | 1 | |
| A06 | PR00000029 | WIDE-SLOT NOZZLE | 1 | |
| A07 | PR00000030 | REFLECTOR NOZZLE | 1 | |
| A08 | PR00000031 | REDUCTION NOZZLE 20mm | 1 | |
| A09B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A10B | 197280-8 | BATTERY BL1850B SET | 1 | |
| A11B | 450128-8 | BATTERY COVER | 1 |
