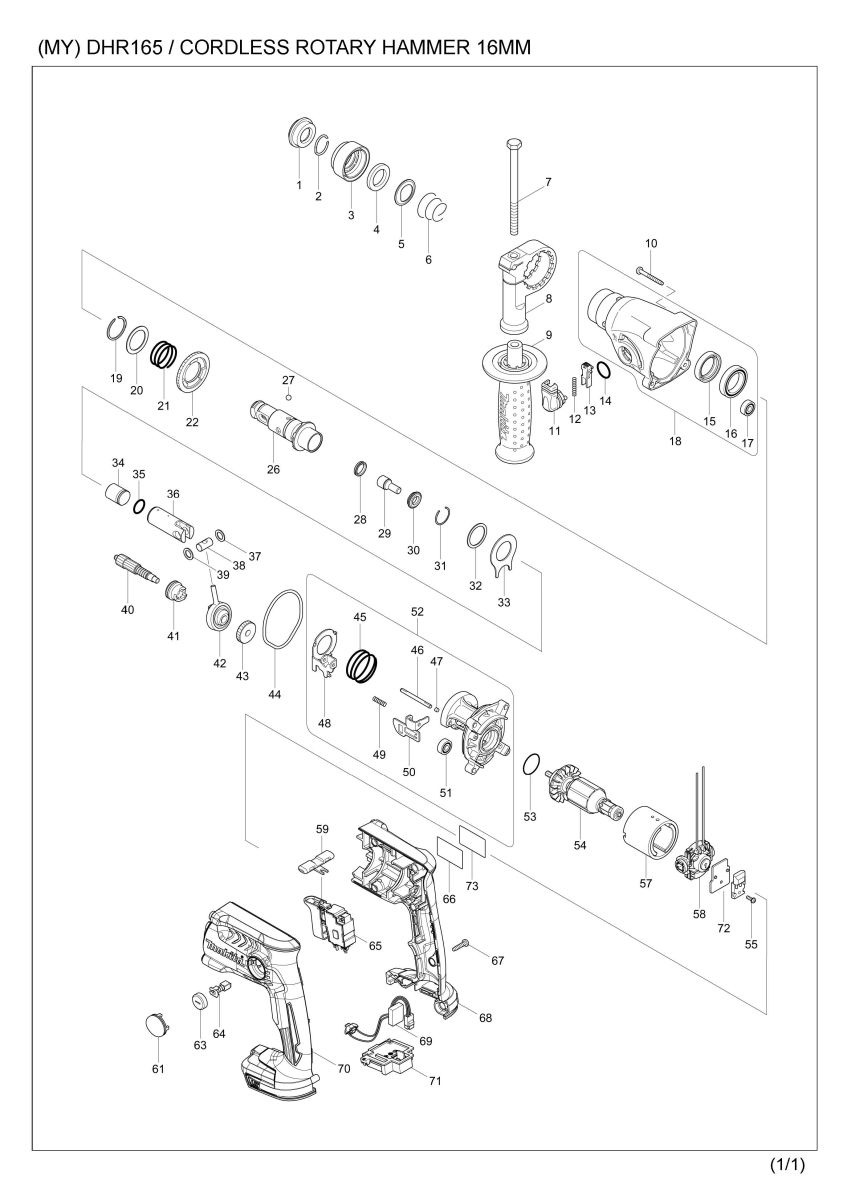

Part Diagram
Total: 104 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 286263-4 | CAP 35 | 1 | |
| 2 | 233940-9 | RING SPRING 19 | 1 | |
| 3 | 419220-9 | CHUCK COVER | 1 | |
| 4 | 257241-1 | RING 21 | 1 | |
| 5 | 345187-4 | GUIDE WASHER | 1 | |
| 6 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | |
| 7 | 921923-8 | HEX. BOLT M8X120 | 1 | |
| 8 | 417911-6 | GRIP BASE | 1 | |
| 9 | 158057-6 | GRIP 36 COMPLETE | 1 | |
| 10 | 266053-1 | TAPPING SCREW 4X35 | 4 | |
| 11 | 162242-5 | CHANGE LEVER COMPLETE | 1 | |
| 12 | 233459-8 | COMPRESSION SPRING 3 | 1 | |
| 13 | 455413-4 | LOCK BUTTON | 1 | |
| 14 | 213278-8 | O RING 17 | 1 | |
| 15 | 213535-4 | OIL SEAL 25 | 1 | |
| 16 | 211375-4 | BALL BEARING 6805LLB | 1 | |
| 17 | 211012-0 | BALL BEARING 606ZZ | 1 | |
| 18 | 154840-9 | GEAR HOUSING COMPLETE | 1 | |
| 18 | D10 | INC. 15-17 | ||
| 19 | 961135-1 | RETAINING(EXT) WR-25 | 1 | |
| 20 | 267304-5 | FLAT WASHER 25 | 1 | |
| 21 | 233457-2 | COMPRESSION SPRING 25 | 1 | |
| 22 | 331707-0 | SPUR GEAR 46 | 1 | |
| 26 | 154843-3 | TOOL HOLDER COMPLETE | 1 | |
| 27 | 216022-2 | STEEL BALL 7.0 | 1 | |
| 28 | 213183-9 | X RING 13 | 1 | |
| 29 | 324611-0 | IMPACT BOLT | 1 | |
| 30 | 257275-4 | RING 11 | 1 | |
| 31 | 233942-5 | RING SPRING 22 | 1 | |
| 32 | 267175-0 | FLAT WASHER 24 | 1 | |
| 33 | 345681-6 | JOINT PLATE | 1 | |
| 34 | 324613-6 | STRIKER | 1 | |
| 35 | 213182-1 | O RING 14 | 1 | |
| 36 | 331708-8 | PISTON CYLINDER | 1 | |
| 37 | 267130-2 | FLAT WASHER 9 | 1 | |
| 38 | 324612-8 | PISTON JOINT | 1 | |
| 39 | 267130-2 | FLAT WASHER 9 | 1 | |
| 40 | 227152-4 | SPUR GEAR 10 | 1 | |
| 41 | 331706-2 | CLUTCH CAM | 1 | |
| 42 | 219019-0 | SWASH BEARING 9 | 1 | |
| 43 | 226623-8 | HELICAL GEAR 22 | 1 | |
| 44 | 423346-1 | SEAL RING | 1 | |
| 45 | 233458-0 | COMPRESSION SPRING 32 | 1 | |
| 46 | 268147-8 | PIN 4 | 1 | |
| 47 | 443123-5 | FELT 4X3 | 1 | |
| 48 | 345645-0 | CHANGE PLATE | 1 | |
| 49 | 233460-3 | COMPRESSION SPRING 3 | 1 | |
| 50 | 345654-9 | STOPPER PLATE | 1 | |
| 51 | 211012-0 | BALL BEARING 606ZZ | 1 | |
| 52 | 154841-7 | INNER HOUSING COMPLETE | 1 | |
| 52 | D10 | INC. 45-51 | ||
| 53 | 213953-6 | O RING 24 | 1 | |
| 54 | 619334-6 | ARMATURE | 1 | |
| 55 | 911011-9 | PAN HEAD SCREW M3X10 | 1 | |
| 57 | 638446-6 | YOKE UNIT | 1 | |
| 58 | 632D96-3 | ENDBELL COMPLETE | 1 | |
| 59 | 419457-8 | F/R CHANGE LEVER | 1 | |
| 61 | 424128-4 | HOLDER CAP COVER | 2 | |
| 63 | 643929-3 | BRUSH HOLDER CAP | 2 | |
| 64 | 191971-3 | CARBON BRUSH CB-430 | 1 | |
| 65 | 632D94-7 | SWITCH UNIT | 1 | |
| 065-1 | 632D94-7 | SWITCH UNIT | 1 | |
| 66 | 850K43-6 | DHR165 NAME PLATE | 1 | |
| 67 | 265995-6 | TAPPING SCREW 4X18 | 7 | |
| 68 | 183A41-8 | HOUSING SET | 1 | |
| 68 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 68 | D10 | INC. 70 | ||
| 69 | 620367-6 | LIGHT CIRCUIT | 1 | |
| 70 | 183A41-8 | HOUSING SET | 1 | |
| 70 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 70 | D10 | INC. 68 | ||
| 71 | 644808-8 | TERMINAL | 1 | |
| 72 | 689098-6 | HEAT SINK | 1 | |
| 73 | 805F02-5 | CLEAR LABEL | 1 | |
| A01 | 415486-9 | DEPTH GAUGE | 1 | |
| A02B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A02C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A03B | 194204-5 | BATTERY BL1830 SET | 2 | |
| A03C | 197265-4 | BATTERY BL1840B SET | 2 | |
| A03-1B | 194204-5 | BATTERY BL1830 SET | 2 | |
| A03-1C | 197265-4 | BATTERY BL1840B SET | 2 | |
| A03-2B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A03-3B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A04B | 450128-8 | BATTERY COVER | 1 | |
| A04C | 450128-8 | BATTERY COVER | 1 | |
| A05B | 821626-3 | PLASTIC CARRYING CASE | 1 | |
| A05B | C10 | 162315-4 | LATCH | 2 |
| A05C | 821626-3 | PLASTIC CARRYING CASE | 1 | |
| A05C | C10 | 162315-4 | LATCH | 2 |
| B01 | 195208-0 | HAMMER SERVICE KIT SET | 1 | |
| B01 | C10 | 183477-5 | HAMMER GREASE 30G | 1 |
| B01 | C11 | 1914D1-2 | GREASE SET | 1 |
| B01 | D10 | INC. 1,28,31,35,44,64 | ||
| F07-3 | 197606-4 | BATTERY BL1830B SET (2PIECES) | 1 | |
| F08-3 | 197600-6 | BATTERY BL1830B SET | 1 | |
| F09-4 | 197599-5 | BATTERY BL1830B SET | 1 | |
| F10-3 | 197267-0 | BATTERY BL1840B SET | 1 | |
| F11-3 | 197267-0 | BATTERY BL1840B SET | 1 | |
| F12-3 | 197265-4 | BATTERY BL1840B SET | 1 | |
| F13-3 | 197265-4 | BATTERY BL1840B SET | 1 | |
| F14-3 | 197273-5 | BATTERY BL1840B SET(2PIECES) | 1 | |
| F15-2 | 196235-0 | BATTERY BL1815N SET | 1 | |
| F16-2 | 196449-1 | BATTERY BL1815N SET | 1 | |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 |
