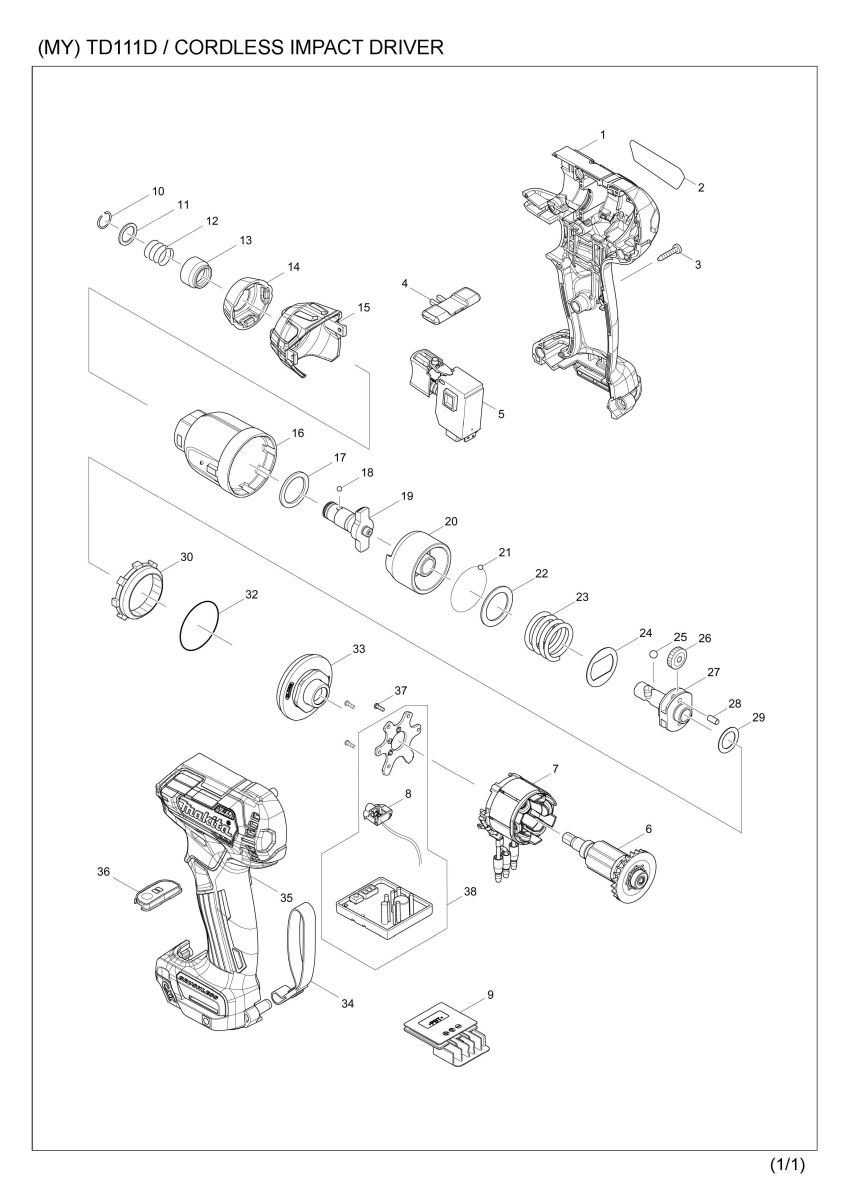

Part Diagram
Total: 84 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183E65-8 | HOUSING SET | 1 | |
| 001 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 001 | D10 | INC. 35 | ||
| 002 | 852P37-7 | TD111D NAME PLATE | 1 | |
| 002-1 | 852P36-9 | TD111D NAME PLATE | 1 | |
| 003 | 266429-2 | TAPPING SCREW 3X16 | 9 | |
| 004 | 455053-8 | F/R CHANGE LEVER | 1 | |
| 005 | 650689-0 | SWITCH C3JW-2B | 1 | |
| 006 | 619415-6 | ROTOR | 1 | |
| 006-1 | 619415-6 | ROTOR | 1 | |
| 007 | 629232-6 | STATOR | 1 | |
| 008 | 620553-9 | LED CIRCUIT | 1 | |
| 009 | 644813-5 | TERMINAL | 1 | |
| 010 | 231965-7 | RING SPRING 10 | 1 | |
| 011 | 267143-3 | FLAT WASHER 11 | 1 | |
| 012 | 233005-7 | COMPRESSION SPRING 13 | 1 | |
| 013 | 326803-7 | BIT SLEEVE | 1 | |
| 014 | 424907-0 | BUMPER | 1 | |
| 015 | 457062-3 | HAMMER CASE COVER | 1 | |
| 016 | 144058-0 | HAMMER CASE COMPLETE | 1 | |
| 017 | 261159-0 | NYLON WASHER 19 | 1 | |
| 018 | 216019-1 | STEEL BALL 3 | 2 | |
| 019 | 326629-7 | ANVIL N | 1 | |
| 020 | 324894-2 | HAMMER | 1 | |
| 021 | 216019-1 | STEEL BALL 3 | 24 | |
| 022 | 267380-9 | FLAT WASHER 20 | 1 | |
| 023 | 232326-4 | COMPRESSION SPRING 21 | 1 | |
| 024 | 267813-4 | WASHER 21 | 1 | |
| 025 | 216002-8 | STEEL BALL 4.8 | 2 | |
| 026 | 221437-0 | SPUR GEAR 17 | 2 | |
| 027 | 324897-6 | SPINDLE | 1 | |
| 028 | 268217-3 | PIN 3.5 | 2 | |
| 029 | 253052-2 | FLAT WASHER 12 | 1 | |
| 030 | 227316-0 | INTERNAL GEAR 43 | 1 | |
| 032 | 213479-8 | O RING 33 | 1 | |
| 033 | 141893-7 | BEARING BOX COMPLETE | 1 | |
| 035 | 183E65-8 | HOUSING SET | 1 | |
| 035 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 035 | D10 | INC. 1 | ||
| 036 | 144060-3 | SWITCH PLATE COMPLETE | 1 | |
| 037 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 038 | 620552-1 | CONTROLLER | 1 | |
| 038 | D10 | INC. 8 | ||
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346909-5 | HOOK | 1 | |
| A03A | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03B | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03C | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03D | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03-1A | E-08436 | TWIST TORSION BIT PH2-65MM | 1 | |
| A03-1B | E-08436 | TWIST TORSION BIT PH2-65MM | 1 | |
| A03-1C | 784043-7 | +BIT 2-45 | 1 | |
| A03-1D | E-08436 | TWIST TORSION BIT PH2-65MM | 1 | |
| A03-2A | A-67511 | SLIM TWIST TORSION PH2-65 3PC | 1 | |
| A03-2B | A-67511 | SLIM TWIST TORSION PH2-65 3PC | 1 | |
| A03-2D | A-67511 | SLIM TWIST TORSION PH2-65 3PC | 1 | |
| A04B | 456128-6 | BATTERY COVER | 1 | |
| A04C | 456128-6 | BATTERY COVER | 1 | |
| A04D | 456128-6 | BATTERY COVER | 1 | |
| A05B | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A05C | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A05C | D10 | COMPO-PARTS | ||
| A05D | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A05D | D10 | COMPO-PARTS | ||
| A06B | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06C | 197393-5 | BATTERY BL1016 SET | 2 | |
| A06D | 197396-9 | BATTERY BL1021B SET | 2 | |
| A06-1B | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06-1C | 191B84-2 | BATTERY BL1016 SET | 2 | |
| A06-1D | 197396-9 | BATTERY BL1021B SET | 2 | |
| A06-2B | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A06-2C | 197393-5 | BATTERY BL1016 SET | 2 | |
| A06-2D | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A06-3B | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06-3D | 197396-9 | BATTERY BL1021B SET | 2 | |
| A07B | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A07B | C10 | 417724-5 | LATCH | 2 |
| A07C | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A07C | C10 | 417724-5 | LATCH | 2 |
| A07D | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A07D | C10 | 417724-5 | LATCH | 2 |
| F06-1 | 198913-8 | DRILL CHUCK SET | 1 | |
| F40 | 347C56-3 | HOOK | 1 |
