Planning/ Routering
Total: 26 record(s) at page 2 of 3

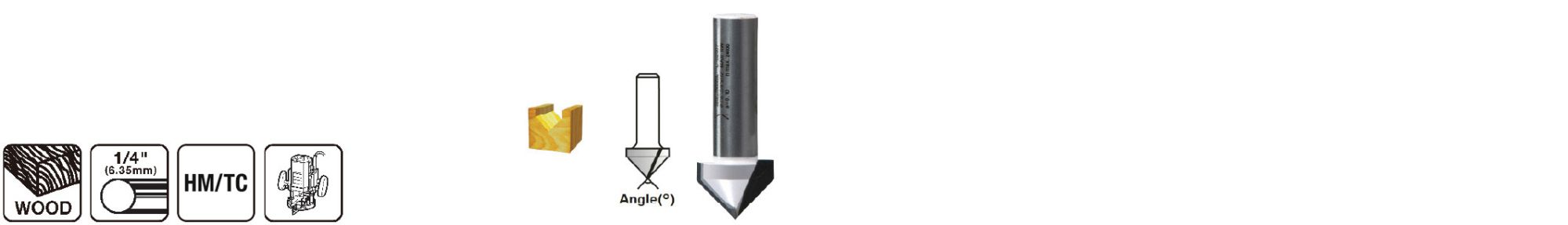

V Groove Bit
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | Angle( °) | Sales pkg qty | Part No. |
 |
(1/4) | (45/64) | (1-7/8) | (5/8) | - | 1 | D-15453 |
 |
(1/4) | (1/2) | (1-3/4) | (1/2) | 90 | 1 | D-59455 |
| (1/4) | (1/2) | (1-3/4) | (1/2) | 90 | 1 | D-69478 | |
| (1/4) | (3/4) | (1-7/8) | (5/8) | 90 | 1 | D-49373 |

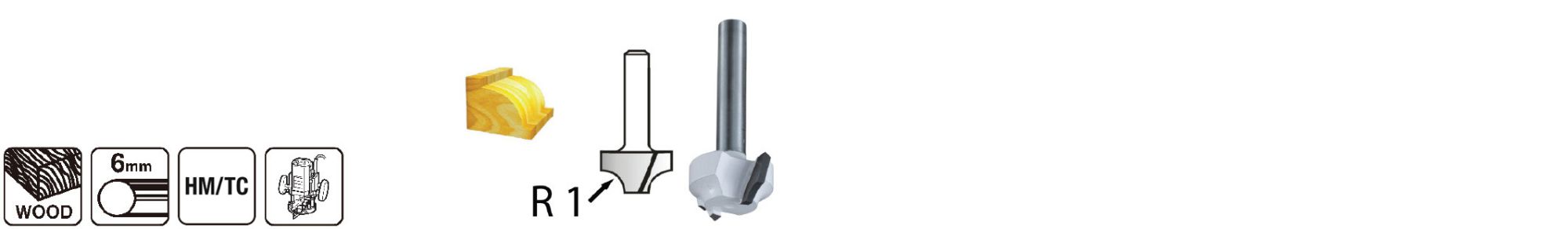

Ovolo Bit
| Range | Shank dia. mm | Overall dia. mm | Length mm | Carbide height mm | R1 mm | Sales pkg qty | Part No. |
|
6 | 16 | 41 | 9 | 4 | 1 | D-09357 |

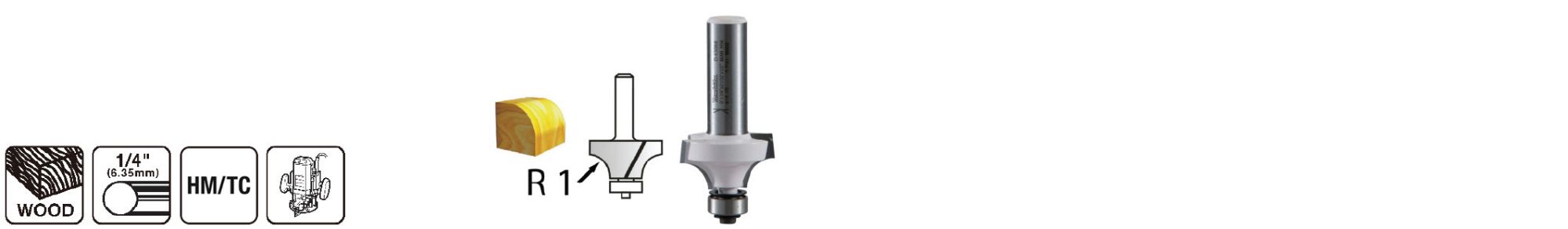

Roundover Bit
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | R1 (inch) | Sales pkg qty | Part No. |
|
(1/4) | (7/8) | (2-3/16) | (1/2) | (3/16) | 1 | D-15475 |
|
(1/4) | (3/4) | (2-1/8) | (3/8) | (1/8) | 1 | D-59483 |
| (1/4) | (3/4) | (2-1/8) | (3/8) | (1/8) | 1 | D-69749 | |
| (1/4) | (7/8) | (2-5/32) | (1/2) | (3/16) | 1 | D-69755 | |
| (1/4) | -1 | (2-1/4) | (17/32) | (1/4) | 1 | D-69761 |

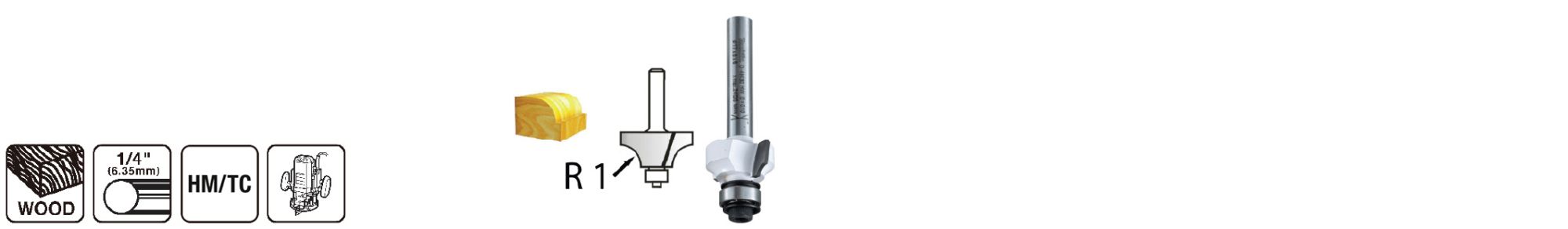

Beading Bit
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | R1 (inch) | Sales pkg qty | Part No. |
|
(1/4) | (3/4) | (2-1/32) | (3/8) | (1/8) | 1 | D-69820 |

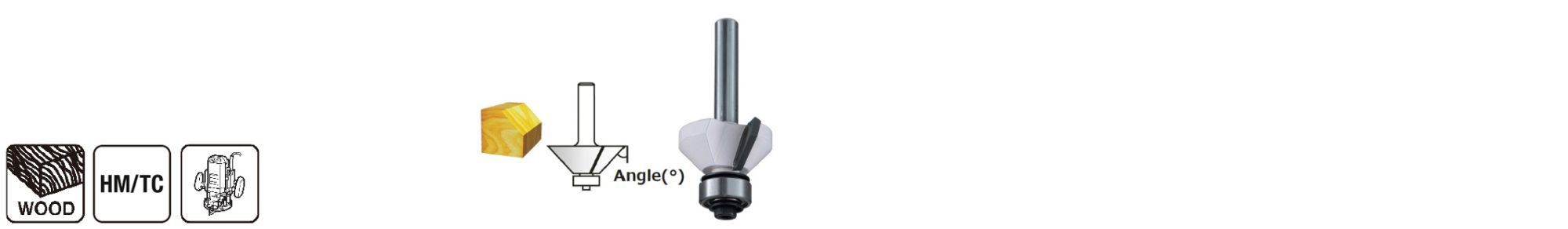

Chamfer Bit
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | Angle( °) | Sales pkg qty | Part No. |
|
(1/4) | (1-1/8) | (2-7/64) | (7/16) | - | 1 | D-15506 |
|
(1/4) | (7/8) | (2-3/16) | (1/2) | 25 | 1 | D-69951 |
| (1/4) | (1-5/8) | (2-5/16) | (13/16) | 45 | 1 | D-50033 | |
| (1/2) | (1-3/4) | (2-11/16) | (29/32) | 45 | 1 | D-50049 | |
| (1/2) | -2 | (2-13/16) | (1-1/16) | 45 | 1 | D-50055 |

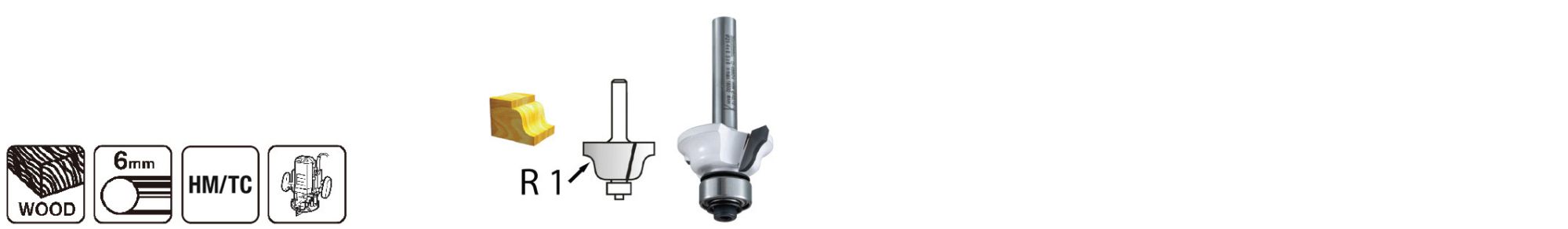

Roman Ogee Bit
| Range | Shank dia.mm | Overall dia. mm | Length mm | Carbide height mm | R1 mm | R2 mm | Sales pkg qty | Part No. |
|
6 | 24 | 42 | 10 | 2.5 | 4.5 | 1 | D-09575 |
| 6 | 28 | 44 | 12 | 3 | 6 | 1 | D-09581 |

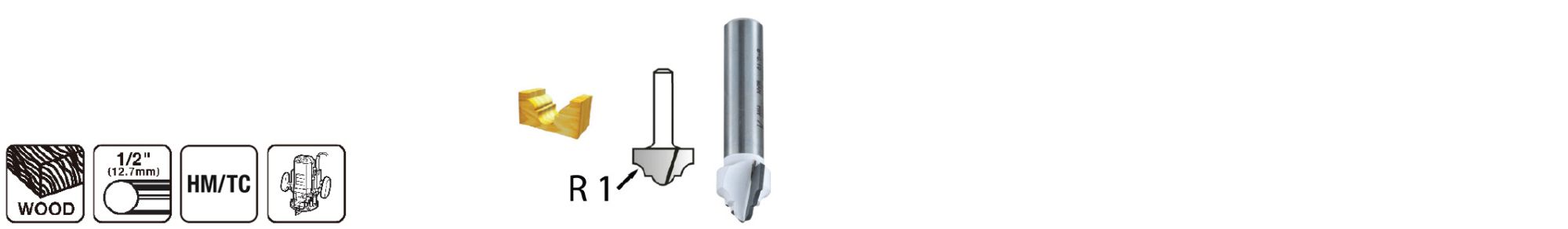

Classic Panel Bit
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | R1 (inch) | Sales pkg qty | Part No. |
|
(1/2) | -1 | (2-1/8) | (5/8) | (7/32) | 1 | D-49694 |
| (1/2) | (1-1/4) | (2-1/4) | (3/4) | (11/32) | 1 | D-49703 |

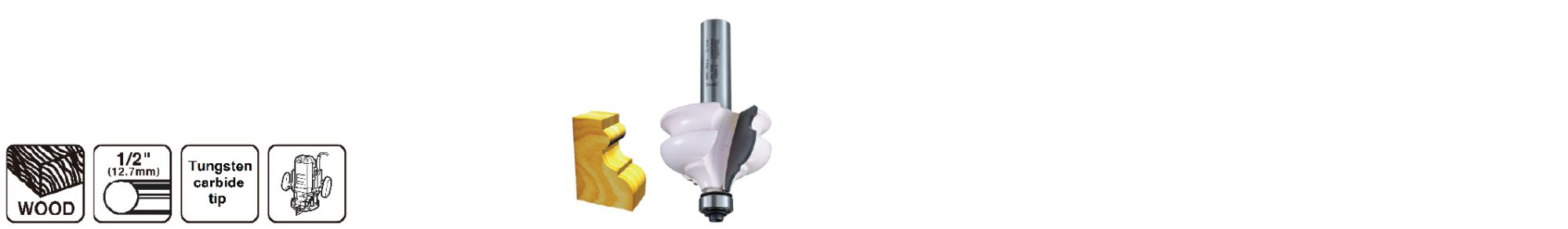

French Provincial Classical Bit
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | Sales pkg qty | Part No. |
 |
(1/2) | (1-3/4) | (3-1/8) | (1-1/8) | 1 | D-50164 |

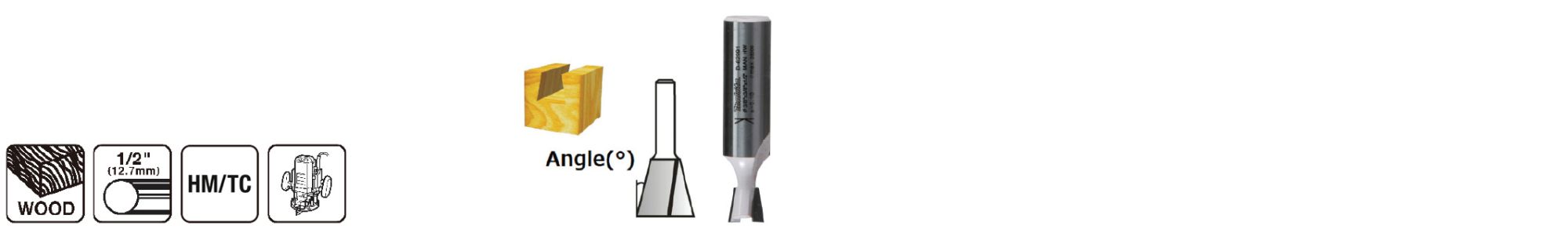

Dovetail Bit
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | Angle( °) | Sales pkg qty | Part No. |
|
(1/2) | (3/4) | (2-1/2) | (7/8) | 7 | 1 | D-49563 |

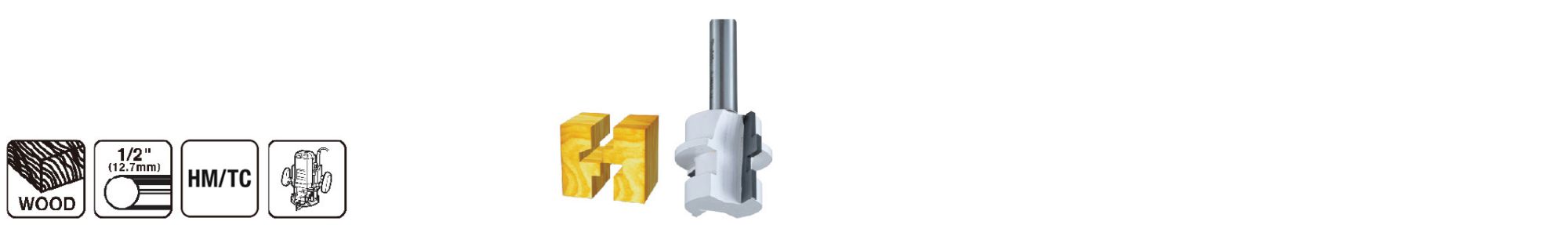

Reversible glue Joint Bit
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | Sales pkg qty | Part No. |
|
(1/2) | (1-5/8) | -3 | -1 | 1 | D-50223 |

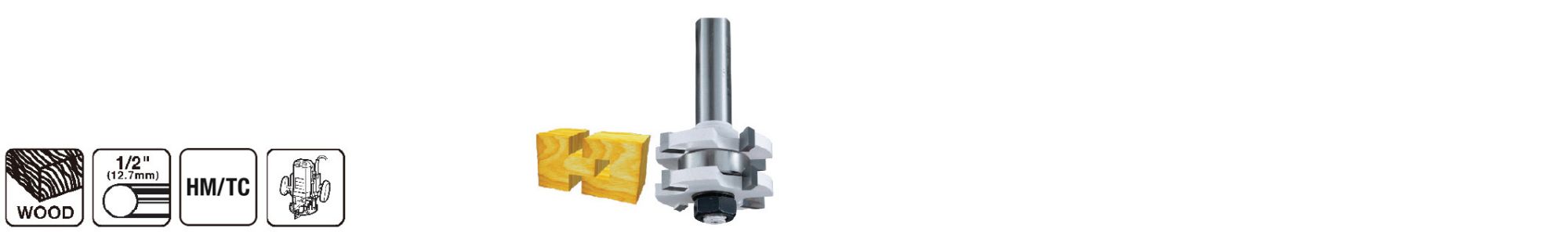

Tongue and Groove Bit
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | Sales pkg qty | Part No. |
|
(1/2) | (1-39/64) | (2-51/64) | (3/4) | 1 | D-50239 |

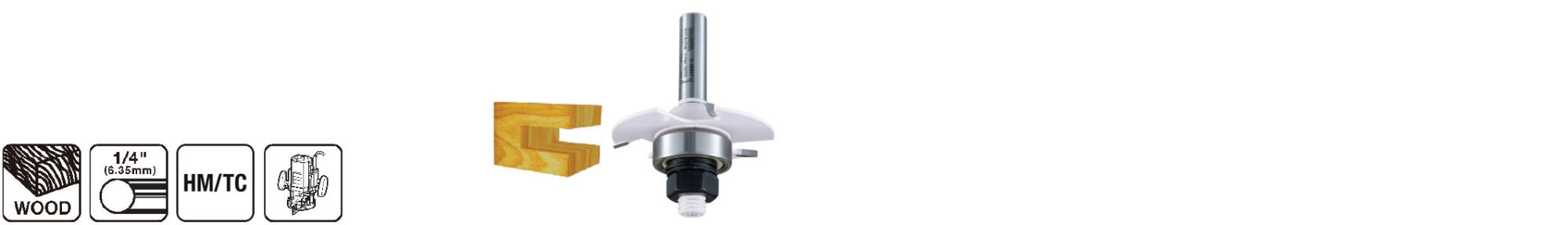

Slotting Cutter
| Range | Shank dia. (inch) | Overall dia. (inch) | Length (inch) | Carbide height (inch) | Note | Sales pkg qty | Part No. |
|
(1/4) | (1-7/8) | (2-5/16) | (1/8) | Slotting cutter with arbor | 1 | D-50267 |
| (1/4) | (1-7/8) | (2-5/16) | (5/32) | 1 | D-50273 | ||
| (1/4) | (1-7/8) | (2-5/16) | (3/16) | 1 | D-50289 |
