Other Accessory and Attachment
Total: 180 record(s) at page 10 of 15

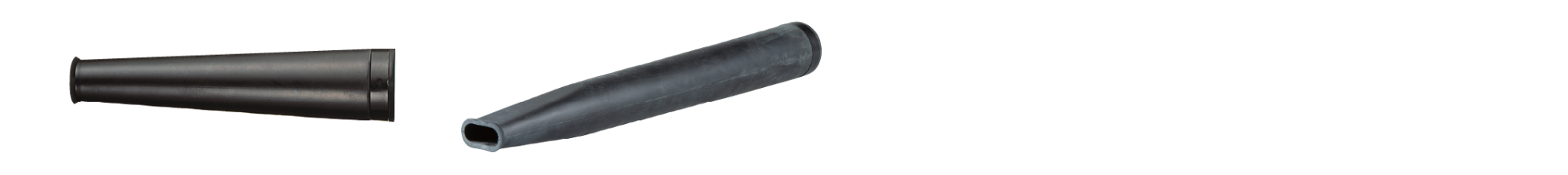

Nozzle assembly, bending long nozzle set for vacuum & blow
| Model | Size (mm) | Part No |
| DUB182, DVC350 | 220 | 132025-7 |
| 430 | 134182-7 |
Pipe, end pipe, flat nozzle & others accessory
| Model | Item | Part No |
| DUB184 | Front Nozzle Set |
183P96-3 |
| DUB362 | Long Nozzle Set |
183R02-0 |
| DUB363 | End Nozzle 72 Set |
183R01-2 |
| DUB363 | Pipe 90-72 Assembly Set |
183R06-2 |
| UB001G, DUB184, DUB362 | Shoulder belt |
166094-6 |
Cordless dust blower accessories
For model: AS001G, DAS180.
*1 used by attaching to Nozzle 13 and air vent hose.
| Item | Description | Part No |

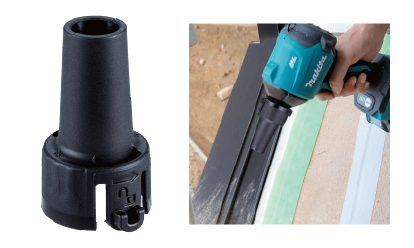

Nozzle 13 set |
Nozzle diameter Ø 13 mm Nozzle diameter: Ø 13 mm (same as the caliber of the machine). • For blow-off works. • For inflating large play pools, etc. |
191X15-3 |

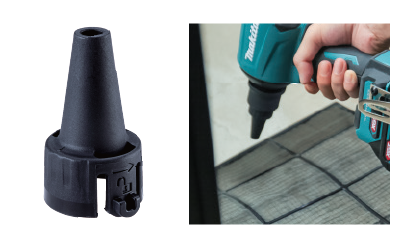

Nozzle 7 set |
Nozzle diameter Ø 7.0 mm. For filter cleaning. |
191X13-7 |

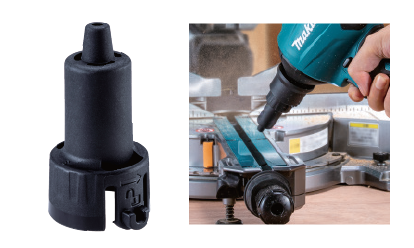

Nozzle 3 set |
Nozzle diameter Ø 3.0 mm. | 191X11-1 |

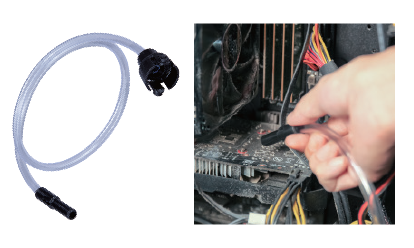

Flexible nozzle complete set |
Nozzle diameter Ø 6.0 x 800 (hose) for blowing dust away from OA equipment or narrow spaces where this machine cannot enter. | 191X21-8 |

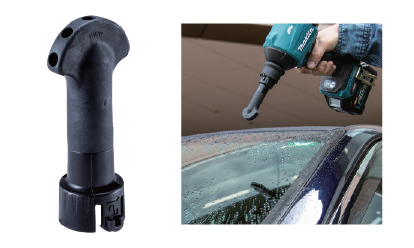

Wide range nozzle set |
Nozzle diameter Ø 6.0 mm (each hole) for wide range blow-off. | 191X19-5 |

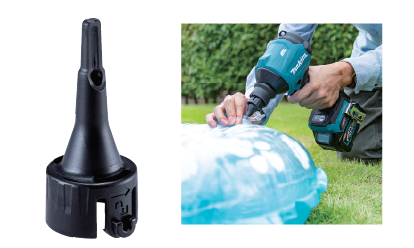

Pinch valve nozzle set |
Nozzle diameter Ø 7.0 mm for inflating/ deflating inner tubes and beach balls. | 191X17-9 |

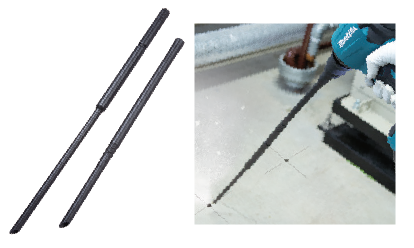

Long nozzle set |
Nozzle diameter Ø 8.0 mm. • For cleaning anchor holes. • For cleaning narrow spaces that are out of reach. Nozzle 13 set (191X15-3) is also necessary. |
191X78-9 |

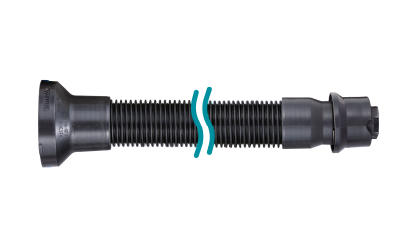

Air vent hose complete set |
Nozzle diameter 13 mm (Same as the caliber of the machine) for inflating/ deflating inner tubes and beach balls. *Remove Dust cap complete from the machine and attach this hose. |
191X23-4 |

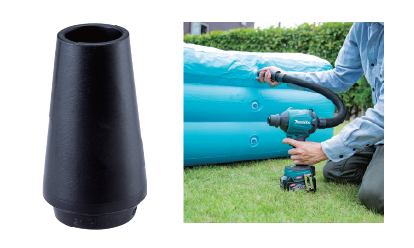

Rubber attachment 20-30 set |
Nozzle diameter 7.0 mm for deflation large play pools and inflatable beds etc. *1 air vent hose complete set (191X23-4) and nozzle 13 set (191X15-3) are also necessary. |
191X25-0 |

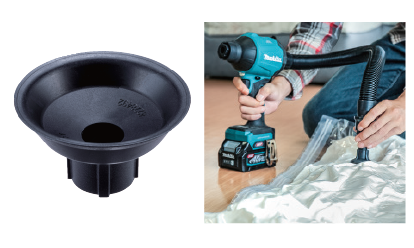

Rubber attachment 65 set |
Nozzle diameter: Ø 65 mm For deflating futon (bedding) compression bag. *1 air vent hose complete set (191X23-4) and nozzle 13 set (191X15-3) are also necessary. |
191X27-6 |

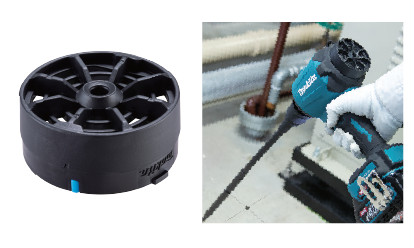

Filter C complete set |
For use of the machine in a dusty environment. *Remove dust cap complete from the machine and attach this filter. |
191X29-2 |
Power washer accessories for DHW080 & HW001G
| Item | Model | Part No |

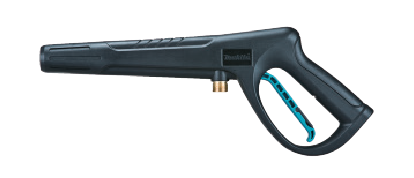

Trigger gun set |
DHW080 HW001G | 197842-2 |

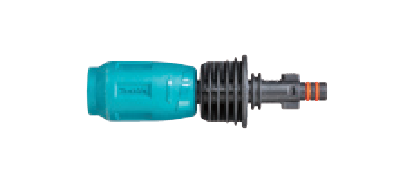

Variospray nozzle set |
HW001G | 1912Y4-1 |

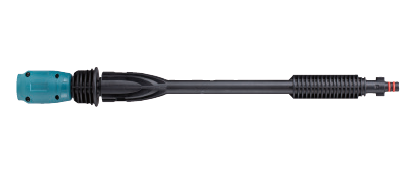

Variospray nozzle ext. set |
HW001G | 1912Y5-9 |

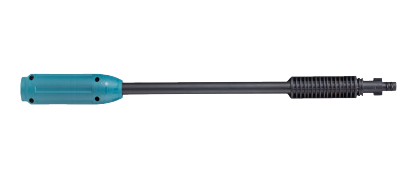

Variospray lance set |
HW001G | 1912Y6-7 |

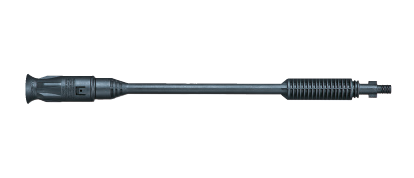

Variable nozzle set |
DHW080 HW001G | 197822-8 |

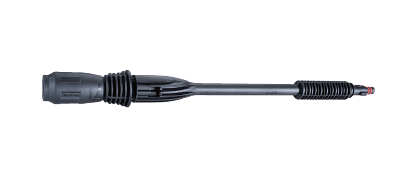

Vario spray lance set |
DHW080 HW001G | 191U88-8 |

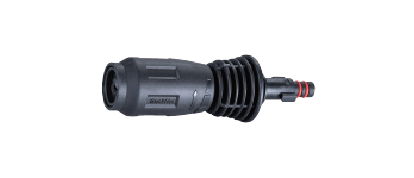

Vario spray nozzle set |
DHW080 | 191U86-2 |

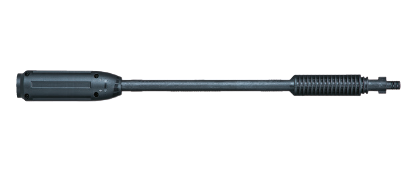

Variospray lance set |
DHW080 HW001G | 197876-5 |

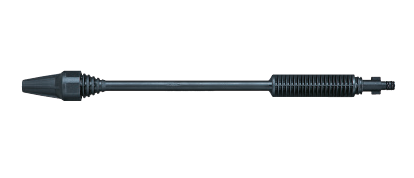

Cyclone jet nozzle set |
DHW080 HW001G | 197824-4 |

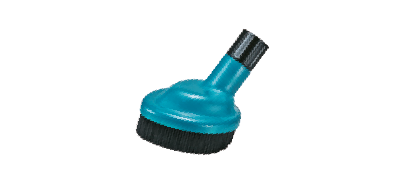

Cyclone guard set |
DHW080 HW001G | 197864-2 |
Under body spray lance set |
DHW080 HW001G | 197859-5 |
| HW1200 HW1300 | 198909-9 | |

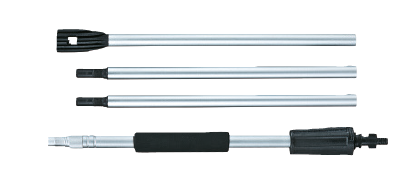

Extension pipe set (0.9 m / 1.3 m / 1.7 m) |
DHW080 HW001G | 197870-7 |

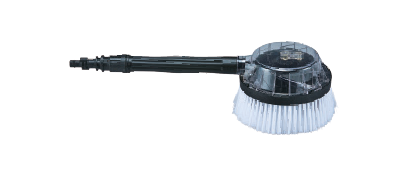

Rotating brush set |
DHW080 HW001G | 197831-7 |

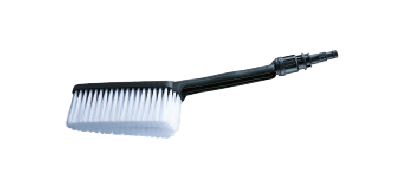

Wash brush set |
DHW080 HW001G | 197828-6 |

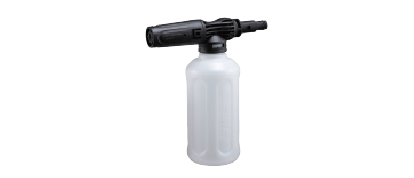

Foam nozzle set |
DHW080 | 197886-2 |
| HW001G | 1912Y2-5 | |

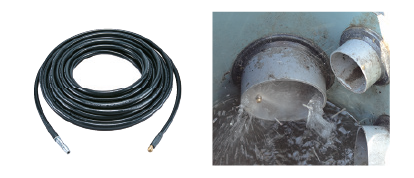

Pipe cleaning hose |
DHW080 HW001G | 10 m - 197837-5 |
| 15 m - 197840-6 | ||

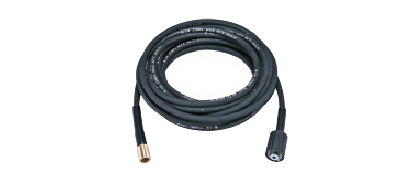

High pressure extension hose |
DHW080 HW001G | 5 m - 197845-6 |
| 8 m - 197847-2 | ||
| 10 m - 197850-3 | ||

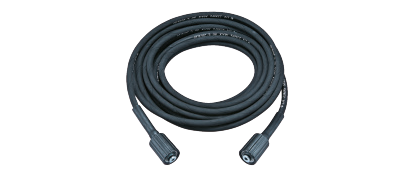

High pressure hose |
HW001G DHW080 | 5 m - 126766-5 |
| DHW080 | 10 m - 123784-4 (PVC) | |
| 10 m - 123651-3 (Rubber) | ||

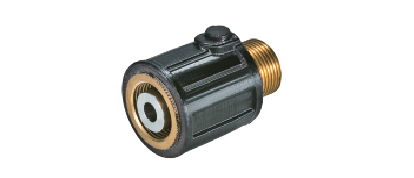

Twist prevention joint set |
DHW080 HW001G | 197867-6 |

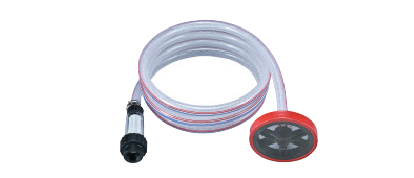

Self-suction hose set |
DHW080 HW001G | 197873-1 |

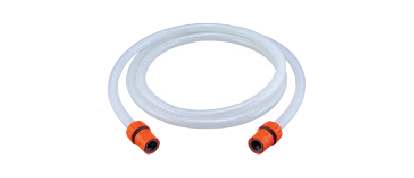

Hose assembly set (3 m) |
DHW080 HW001G | 1910R1-6 |

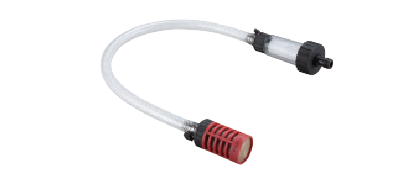

Self-suction hose set (0.6 m) |
DHW080 HW001G | 1910R2-4 |

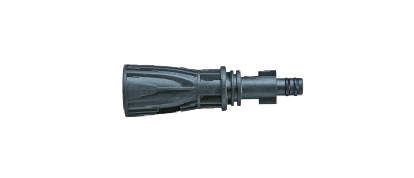

Accessory joint set |
DHW080 HW001G | 197853-7 |

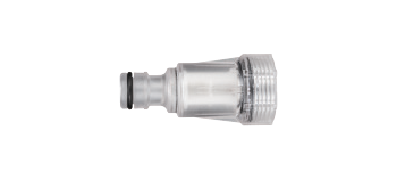

Absorption connector set |
DHW080 | 197881-2 |
| 122F22-7 | ||

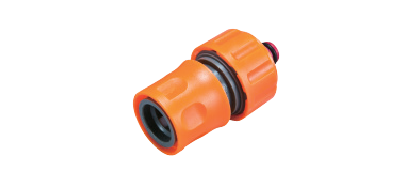

One touch joint set |
DHW080 HW001G | 197883-8 |
Cleaner pin set |
DHW080 HW001G | 197879-9 |

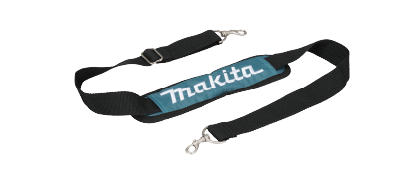

Shoulder belt |
DHW080 | 162523-7 |

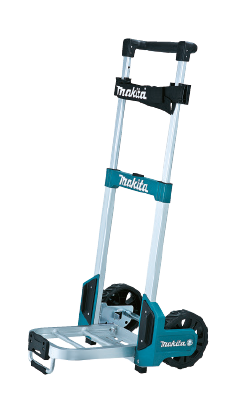

Trolley |
DHW080 | TR00000002 |
Power washer accessories for DHW180
| Item | Part No |

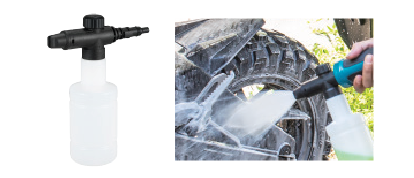

Foam nozzle |
LX00000001 |

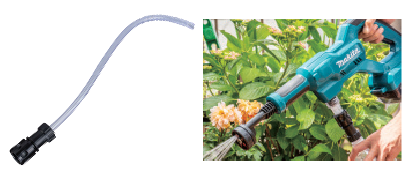

Plastic bottle adapter |
LX00000004 |

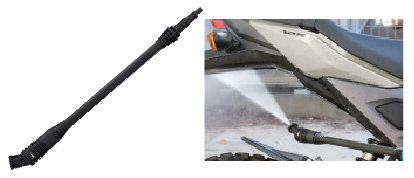

Angle nozzle |
LX00000002 |

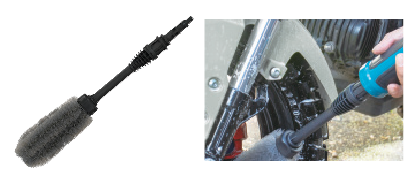

Wheel brush |
LX00000003 |

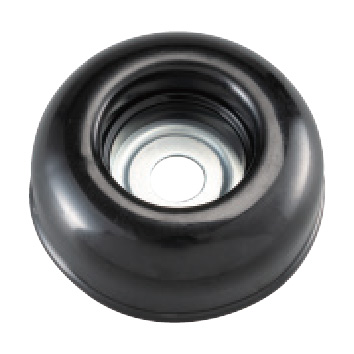

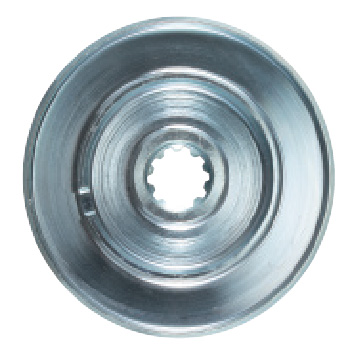

Blade Nut, Cup, Clamp Washer, Grass Guard and Receive Washer
| Model No. | Spindle Size | 1 Receive Washer | 2 Blade Clamp Washer | 3 Blade Cup | 4 Blade Nut | |||||
| Arbor size (mm) | Size (mm) | Parts No. | Size (mm) | Parts No. | Size (mm) | Parts No. | Parts No. | |||
| *** Receive Washer with Grass Guard |  |
 |
 |
 |
||||||
| DUR190L, DUR190U, DUR191L, DUR191U |
M10 x 1.25LH | Rounded rectangle |

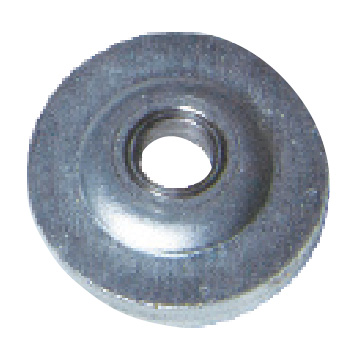

25.4 | --- | *** 140T23-7 | 50 | 347668-4 | 68.00 | 168526-9 | 264025-0 |
| UR007G | M10 x 1.25LH | Spline 10T | 25.4 | --- | *** 140L84-9 | 50 | 346084-7 | 68.00 | 168526-9 | 264025-0 |
| DUR368A, DUR368L, UR003G |
M10 x 1.25LH | Spline 10T | 25.4 | --- | *** 140L84-9 | 50 | 346084-7 | 68.00 | 168526-9 | 264025-0 |
| DUR369A, DUR369L, UR101C, UR201C |
M10 x 1.25LH | Spline 10T | 25.4 | 64.5 | 144312-2 | 43 | 347104-0 | 68.00 | 457274-8 | 252236-9 |
| UR017G | M10 x 1.25LH | Spline 10T | 25.4 | 50 | 140A87-7 | 43 | 347766-4 | 68.00 | 413201-5 | 252236-9 |
| UR012G | M10 x 1.25LH | Spline 10T | 25.4 | 70.5 | 140J59-6 | 54.5 | 162567-7 | Integreted with Blade Clamp Washer | 252236-9 | |
| Multi-tool attachments | ||||||||||
| EM400MP, EM402MP | M10 x 1.25LH | Spline 10T | 25.4 | 60 | 326821-5 | 50 | 346084-7 | 68.00 | 168526-9 | 264025-0 |
| EM403MP, EM404MP | M10 x 1.25LH | Spline 10T | 25.4 | 64.5 | 144312-2 | 43 | 347104-0 | 68.00 | 457274-8 | 252236-9 |
| EM408MP | M10 x 1.25LH | Spline 10T | 25.4 | 64.5 | 140N88-3 | 43 | 347766-4 | 68.00 | 413201-5 | 252236-9 |
| EM409MP | M10 x 1.25LH | Spline 10T | - | 64.5 | 140N88-3 | - | - | - | - | 252236-9 |
| Edger | ||||||||||
| EE400MP | M10 x 1.25LH | Spline 10T | 25.4 | 54 | 326734-0 | 47 | 326381-7 | - | - | 264025-0 |
Cordless String Trimmer
| Model No. | Spindle Size | Receive Washer | Grass wuard for receive washer | ||
| Size (mm) | Parts No. | ||||
| DUR184L | M8 x 1.25RH | Spline 6T | 36.5 | 326683-1 | 346857-8 |
| 144512-4 | |||||
| DUR187L, DUR187U, DUR188L, DUR188U | M8 x 1.25LH | Rounded rectangle | 36.5 | 144512-4 | 346857-8 |
| DUR189 | M8 x 1.25RH | Rounded rectangle | 36.5 | 144512-4 | 346857-8 |
| DUR364L | M8 x 1.25RH | Rounded rectangle | 44 | 319245-2 | 346857-8 |
| DUR192L | M10 x 1.25LH | - | 71 | 140W47-1 | |
| UR202C | M10 x 1.25LH | Spline 10T | 65 | 140N88-3 | |
Brush Cutter Blade
Hole Dia: 25.4 mm
| Blade | Blade dia. /No. of teeth | Thickness | Model No. | Part No. | |

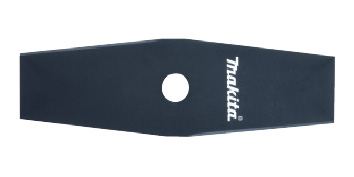

| 2-tooth blade |  |
305 mm / 2 | 2.0 mm | UR012G | 195624-6 |

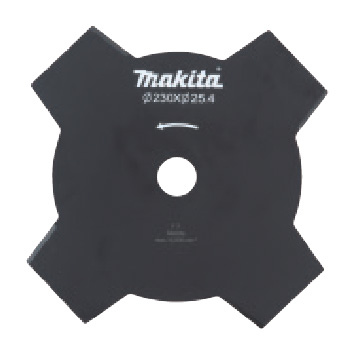

| 4-tooth blade |  |
230 mm / 4 | 1.8 mm | DUR368A, DUR368L, DUR369A, DUR369L, UR003G, UR007G, UR101C, UR201C, EM400MP, EM401MP, EM402MP, EM403MP, EM404MP | 195150-5 |
| 255 mm / 4 | 2.0 mm | DUR369A, DUR369L, UR007G, UR017G, UR101C, UR201C | 196895-8 | ||

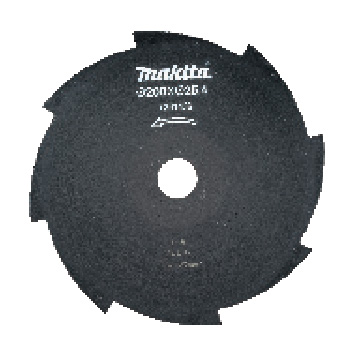

| 8-tooth blade |  |
200 mm / 8 | 1.4 mm | DUR194 | 191Y44-2 |

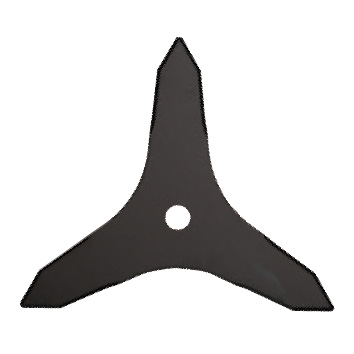

| 3-tooth blade |  |
230 mm / 3 | 3.0 mm | DUR368A, DUR368L, DUR369A, DUR369L, UR003G, UR007G, UR101C, UR201C, EM400MP, EM401MP, EM402MP, EM403MP, EM404MP | 195298-3 |

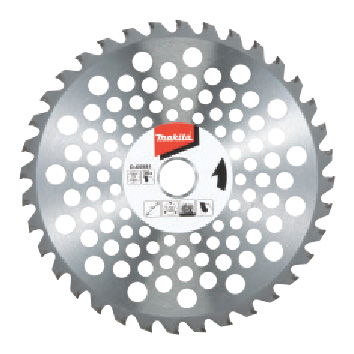

| TCT Brush cutter blade |  |
230 mm / 36 | 1.25 mm | DUR369A, DUR369L, UR101C, UR201C | D-65981 |
| 255 mm / 40 | 1.25 mm | DUR369A, DUR369L, UR003G, UR007G, UR101C, UR201C | D-65997 | ||

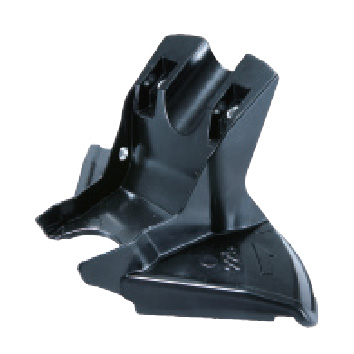

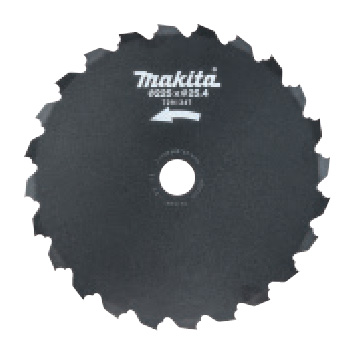

Special Blade & Protection Guard Chisel Blade
For brush and thin tree trunks and new growth. Not availabe in some countries due to local regulation
| Model | Blade | Protection Guard | ||||||
| Blade dia. | Item | Arbor size | Thickness | Part No. | Item | Pipe size | Part No. | |
| UR012G | 225 mm |  |
25.4 | 1.8 mm | 199872-9 |  |
28 mm | 199873-7 |

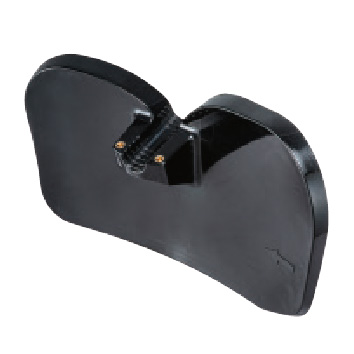

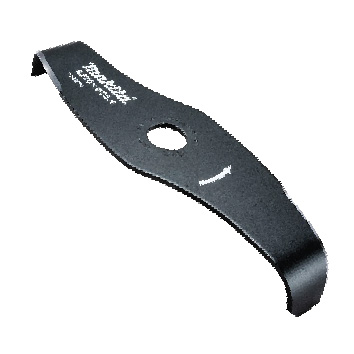

Shredder Blade
| Model | Blade | Protection Guard | ||||||
| Blade dia. | Item | Arbor size | Thickness | Part No. | Item | Pipe size | Part No. | |
| UR012G | 270 mm |  |
25.4 mm | 3.9 mm | 199874-5 |  |
28 mm | 199875-3 |

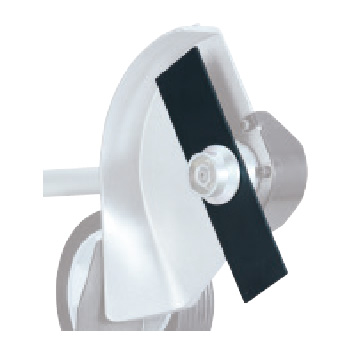

Edger Blade
| Blade dia. / No. of teeth | Thickness | Model No. | Part No. |
| 203 mm / 2 | 2.5 mm | EE400MP | 196745-7 |

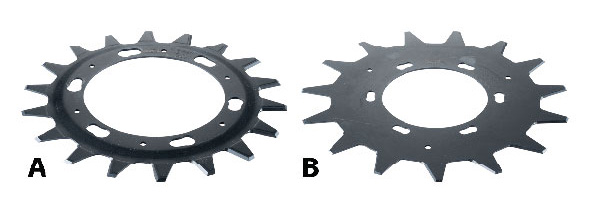

Rotary Scissors
| Model No. | Blade | Protection Guard | |||||
| Blade dia. | Item | Part No. | Item | Description | Pipe size | Part No. | |
| EM407MP | 230 mm |  |
A : SY00146013 |  |
Without protector clamp | 24 mm | 412999-1 |
| B : SY00146014 | |||||||
