Other Accessory and Attachment
Total: 180 record(s) at page 7 of 15
Straight guide assembly for trimmer, router
| Still photo | Name | Related models | Type | Part No. |
 |
Straight guide set | DRT50, RP0900, RP2301FC, RT001G, RT0700C | Micro adjustment | 193312-9 |
 |
Straight guide set | RP1803, RP2301FC, RP2303FC | 194935-6 | |
 |
Straight guide set | DRT50, RP0900, RP1803, RP2301FC, RP2303FC, RT001G, RT0700C | 195136-9 |
Trimmer guide holder
| Still photo | Name | Related models | Part No. |
 |
Guide holder set | DRT50, RT001G, RT0700C | 195564-8 |
Drywall guide bit
| Still photo | Name | Related models | Overall diameter mm (inch) | Shank diameter mm (inch) | Range | Bearing | Part No. |
 |
Drywall guide bit 3.18 set | DCO180, DCO181 | 3.18 (1/8) | 3.18 (1/8) |  |
N | 191G69-8 |
Router base assembly
| Still photo | Name | Related models | Part No. |
 |
Plunge base set | DRT50, RT001G, RT0700C | 195563-0 |
 |
196094-2 |
Trimmer base assembly
| Still photo | Name | Related models | Type | Part No. |
 |
Trimmer base assembly set | 3709, 3710, 3711, 3712 | Transparent base Fine depth adjustment | 194267-1 |
 |
For chamfering Fine depth adjustment | 194269-7 | ||
 |
Trimmer base set | DRT50, RT001G, RT0700C | - | 196612-6 |
 |
Tilt base set | - | 198987-9 |
Offset base assembly
| Still photo | Name | Related models | Part No. |
 |
Offset base set | DRT50, RT001G, RT0700C | 196922-1 |

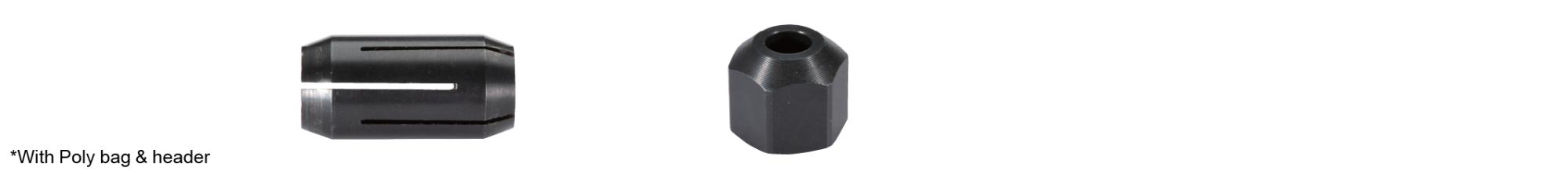

Collet cone & collet nut
| Model No | Wrench Size | Collet Cone | Collet Nut | |
| Size | Part No | Part No | ||
| DCO180 DCO181 | 17mm | 1/8'' | 763677-9 | 763258-9 |

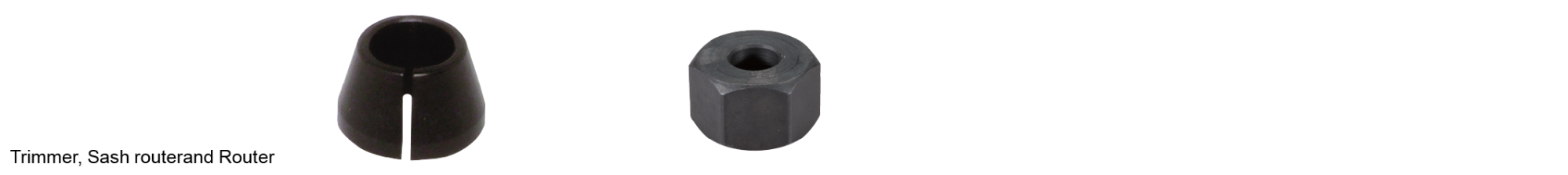

Collet corn / Collet nut
| Model No | Wrench Size | Collet Cone | Collet Nut | |
| Size | Part No | Part No | ||
| DRT52, 3709 | 10mm 17mm | 6 mm | 763607-0 | 763606-2 |
| 763661-4 | ||||
| 1/4'' | 763608-8 | 763661-4 | ||
| 763663-0 | ||||
| DRT50, RT001G, RT0700C, RP0900 | 13mm 22mm | 8mm | 763618-5 | 763615-1 |
| 1/4'' | 763637-1 | |||
| 3/8'' | 763619-3 | |||
| RP001G, 3600H | 13mm 24mm | 12mm | 763628-2 | 763629-0 |
| 1/2'' | 763622-4 | |||
| RP1803, RP2301FC, RP2303FC | 24mm | 12mm | 763628-2 | 763674-5 |
| 1/2'' | 763622-4 | |||

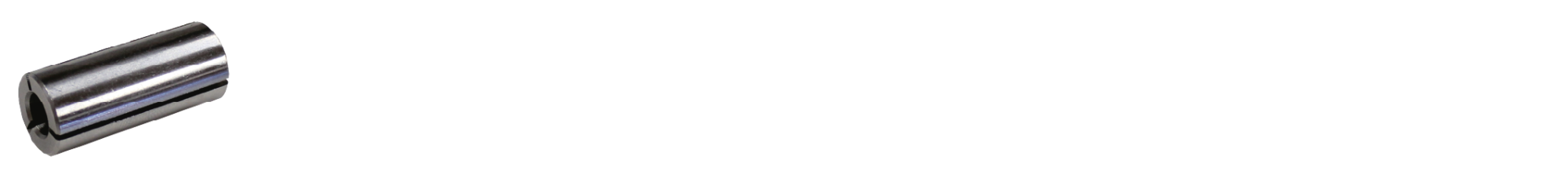

Collet sleeve
| Model No | Collet size | Bit size | Part No |
| RP1803, RP2301FC, RP2303FC, 3600H, RP001G | 1/2" | 1/4" | 763803-0 |
| 3/8'' | 763805-6 | ||
| 12mm | 6mm | 763801-4 | |
| 10mm | 763807-2 |
Templet guide (Metric size)
*for fast production of complicated shapes by using templet
**DRT50, RT001G, RT0700C: Use with Plunge base assembly
| Model No. | Still photo | A (mm) | B (mm) | C (mm) | Part No |
| DRT50, DRT52, 3709, 3710, 3711, 3712, N3701, RT001G, RT0700C, RT0702C |  |
8 | 10 | 9.5 | *343577-5 |
| DRT50**, RP001G, RP0900, RP1803, RP2301FC, RP2303FC, RT001G**, RT0700C** |  |
7.7 | 9.5 | 11.5 | 164379-4 |
 |
14 | 17 | 20 | 165366-6 |
Templet guide (Metric size)
| Model No. | Still photo | A (mm) | B (mm) | C (mm) | Part No |
| 3600H |
|
14 | 16 | 8 | 323018-7 |

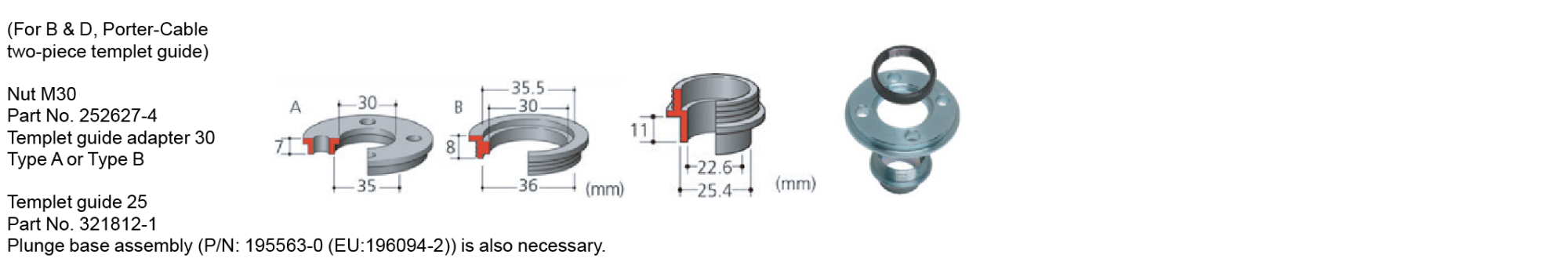

Templet guide adapter 30
| Model No | Type | Part No |
| DRT50**, RP0900, RP1803, RP2301FC, RP2303FC, RT001G**, RT0700C**, 3600H | A | 321492-3 |
| B | 321493-1 |

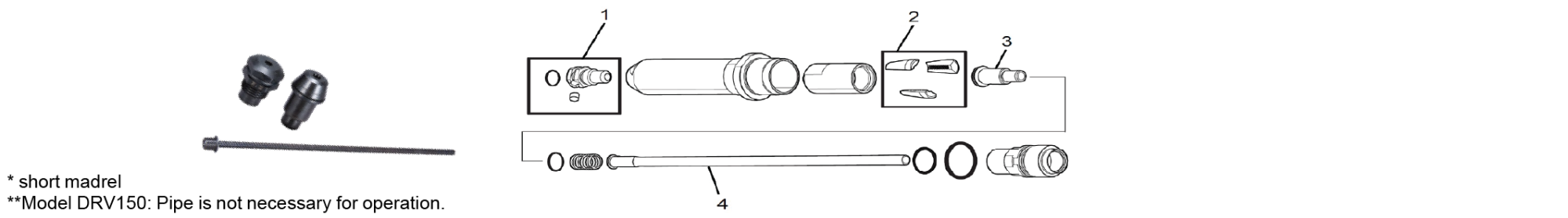

Rivet gun maintenance kit
| Model No. | Rivet size (mm) | 1 | Hade / Jaw case | 2 | 3 | 4 | 1+3+4 | 1+3 | |
| Nose piece size | (-DEC. 2023) | (JUN. 2023 -) | Color / Jaw size | Color / Jaw pusher size | Color / pipe size | Nose piece, Jaw pusher, and pipe set | Nose piece and jaw pusher set | ||
| Part No | Part No | Part No | Part No. | Part No. | Part No. | Part No. | Part No. | ||
| DRV150 DRV250 | 2.4 | 2.4 | Marking on 6.4 | Marking on 4.8S | Black / 4.8 | Gray / 1.9 | Silver / 2.3 | 199729-4 | - |
| 127230-9 | 127478-3 | 162747-5 | |||||||
| *2.4 | 2.4 S | Gray / 1.9 | Silver / 2.3 | 1911U6-3 | |||||
| 122D82-7 | 127478-3 | 162747-5 | |||||||
| 3.2 | 3.2 | Black /2.5 | Black / 2.8 | 199728-6 | |||||
| 127229-4 | 127477-5 | 162746-7 | |||||||
| *3.2 | 3.2 S | 327279-1 | 327691-5 | 199731-7 | Black /2.5 | Black / 2.8 | 1911U4-7 | ||
| 122D81-9 | 127477-5 | 162746-7 | |||||||
| 4 | 4 | Gray / 3.1 | Silver / 3.5 | 191F80-4 | 191C04-2 | ||||
| 127228-6 | 127476-7 | **162745-9 | |||||||
| *4.0 | 4.0 S | Gray /3.1 | Silver / 3.5 | 1911V3-6 | 1911U1-3 | ||||
| 122D80-1 | 327281-4 | 327B83-0 | 127476-7 | **162745-9 | |||||
| 4.8 | 4.8 | Black / 4.8 | Black /3.6 | Black / 4.2 | 191F79-9 | 191C03-4 | |||
| 127225-2 | 199731-7 | 127475-9 | **162744-1 | ||||||
| *4.8 | 4.8 S | Silver / 6.4 | Black /3.6 | Black / 4.2 | 1911V1-0 | 1911T9-0 | |||
| 127689-0 | 199730-9 | 127475-9 | **162744-1 | ||||||
| DRV250 | 6 | 6 | Marking on 6.4 | Marking on 6.4S | Silver / 6.4 | Gray / 4.0 | Black / 4.2 | 199725-2 | - |
| 127224-4 | 127474-1 | 162744-1 | |||||||
| *6.0 | 6.0 S | 327279-1 | 327830-7 | Gray /4.0 | Black / 4.2 | 1911V0-2 | |||
| 122D79-6 | 127474-1 | 162744-1 | |||||||
| 6.4 | 6.4 | 199730-9 | Black / 4.5 | Silver / 4.6 | 191F78-1 | ||||
| 127223-6 | 327281-4 | 327831-5 | 127473-3 | 162743-3 | |||||
| *6.4 | 6.4 S | Black / 4.5 | Silver / 4.6 | 1911U8-9 | |||||
| 122B72-8 | 127473-3 | 162743-3 | |||||||
