Other Accessory and Attachment
Total: 180 record(s) at page 15 of 15
Shoulder strap
| Item | Name | Related models | Part No. |
 |

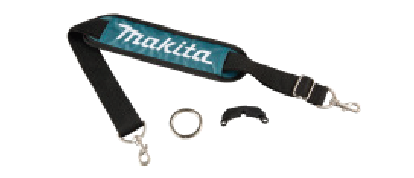

Ring set | TW001G | 191M83-0 |
 |

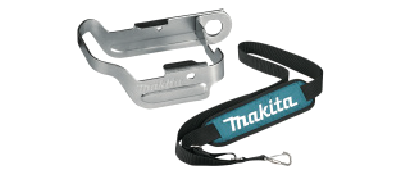

Tool catcher set (with strap) | DTW251, DTW300, DTW301, DTW302 | 197941-0 |
 |

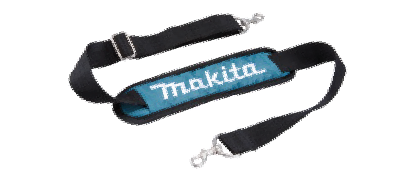

Shoulder belt set | DVC750L | 162523-7 |
 |

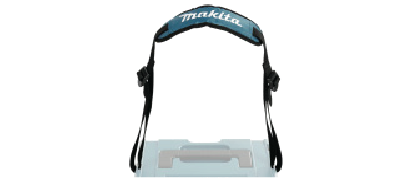

Shoulder belt (Tool box) | DF333D | 161576-3 |
|
Tool catcher set (with strap) | DTD152, DTD171, DTS141, DTW190, DTW251, DTW253, DTW300, DTW301, DTW302, TW202D | 197941-0 |
Tool catcher
| Still photo | Related models | Part No. |
 |

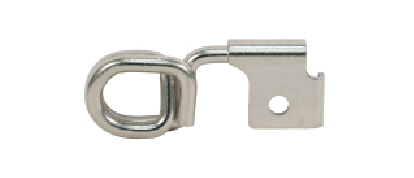

DHR183, HR010G | 1911K0-5 |
 |

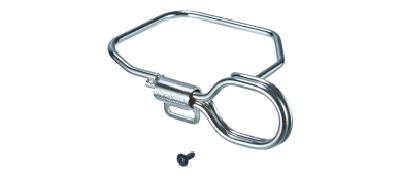

DTW300, DTW301, DTW302, TW005G | 191K57-9 |
 |

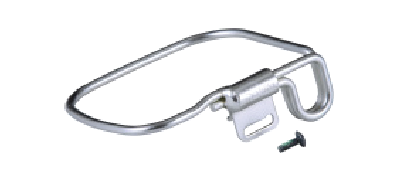

DHR182 | 199593-3 |
Heat gun accessories
| Model | Shape | Part No |
| DHG181 DHG180 HG5030 | Glass protection nozzle |
PR00000028 |
|
Wide-slot nozzle
|
PR00000029 | |
Reflector nozzle |
PR00000030 | |
Reduction nozzle 20 |
PR00000031 | |
|
Overlap welding nozzle
|
PR00000032 | |
|
Solder sleeves reflector
|
PR00000033 | |
|
Welding nozzle
|
PR00000034 | |
|
Pressure roller
|
PR00000035 | |
| HG5030 |
Welding rods
|
ABS PR00000036 |
| HDPE PR00000037 | ||
| PP PR00000038 | ||
|
Speed welding nozzle
|
PR00000039 |

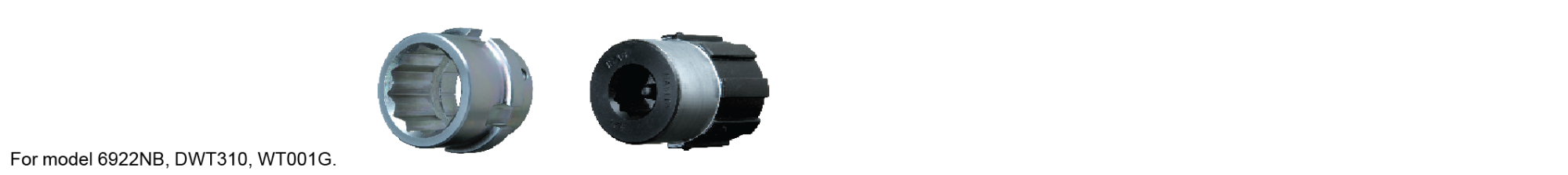

Shear wrench sleeve
| Bolt Size | Outer Sleeve | Inner Sleeve | |||
| Hex Size | L (mm) | Part No | L (mm) | Part No | |
| M16 | 27 | 35 | 764362-7 | 36 | 764416-0 |
| 81 | 764367-7 | 82 | 764356-2 | ||
| 100 | 764406-3 | 100 | 764400-5 | ||
| M20 | 32 | 37 | 764361-9 | 38 | 764417-8 |
| M22 7/8'' | 36 1-7/16'' | 39 | 153909-6 | 39 | 764418-6 |
| 85 | 764364-3 | 85 | 764352-0 | ||
| 3/4" | 1-1/4'' | 37 | 764361-9 | - | - |
| 5/8" | 1-1/16'' | 35 | 764362-7 | - | - |
For model 6924N
| Bolt Size | Outer Sleeve | Inner Sleeve | |||
| Hex Size | L (mm) | Part No | L (mm) | Part No | |
| M22 | 36 | 49 | 194033-6 | 48 | 194310-6 |
| M24 | 41 | 49 | 194034-4 | 49 | 194311-4 |

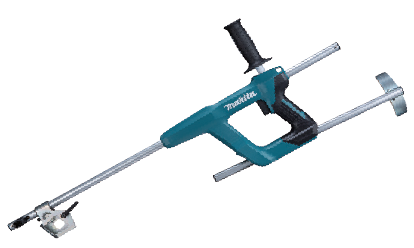

Extension handle kit for DTR180 & DTR181
| Part No |
| 191M27-0 |

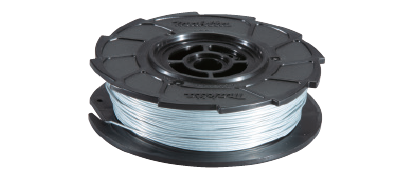

Tie wire set
For model DTR180, DTR181.
.png)
| Size | Package | Type | Wire length / Bobbin | Part No |
| Ø 0.8 mm | 50 pcs/ box | Standard | Approx 100 m | 199137-9 |
| Galvanized | Approx 100 m | 191A57-9 | ||
| Poly Coated | - | 191J59-9 |
Coffee maker accessories
For model DCM501.
| Item | Part No |
Cup |
KF00000020 |
Light stand (tripod)
| Model | Description | Height | Set Screw | Part No |
| DML809, DML811, ML003G, ML005G, ML009G |  |
1,300 - 2,000 mm | - | GM00002378 |
| DML809, DML811, ML003G, ML005G | Up to two lights can be mounted |
Flat bar | M10 bolt & nut | GM00002379 |
Magnet attachment
| Model | Part No |
| ML105, ML104 | GM00001714 |
Battery adapter & battery converter
| Type | Battery Type | For Model | Part No |
PDC01 |
LXT 18V Battery x4 | LXT 18V Model LXT 18V x2 Model Direct connection 36V Model |
191A62-6 |
| 191A67-6 | |||
BAP001G |
XGT 40Vmax | XGT 40Vmax | 1913E8-9 |
BAP182 |
LXT 18V Batteryx2 | LXT 18V x2 Model | 197581-4 |
BAP18C |
LXT 18V Batteryx2 | LXT 18Vx2 Model *Specially for cleaner use | 191M50-5 |
Battery adapter
| Item | Model | Part No |

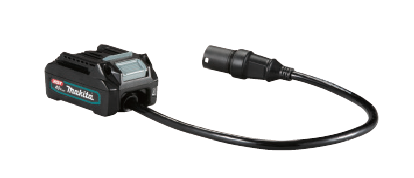

40Vmax Adapter Set |
PDC01 PDC1200 PDC1500 |
191N62-4 |

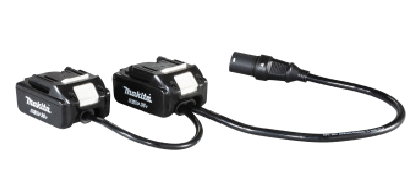

18V x2 Adapter Set |
PDC01 PDC1200 PDC1500 |
191J51-5 |

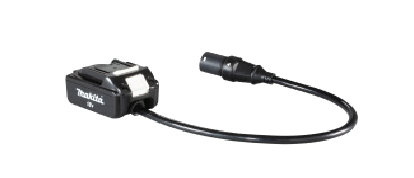

18V Adapter Set |
PDC01 | 191A53-7 |
Makpac Box
| Still photo | Description | Part No. |
 |
Type 1 (6 pcs) | 191K59-5 |
 |
Type 2 (4 pcs) | 191K60-0 |
 |
Type 3 (1 pc) | 821551-8 |
| Type 3 (3 pcs) | 191K61-8 | |
 |
Type 4 (2 pcs) | 191K62-6 |
 |
Makpac Organiser | 191X80-2 |
