Other Accessory and Attachment

Sort by
Total: 180 record(s) at page 11 of 15
Grass trimmer plastic blade
Grass trimmer plastic blade Replacement plastic blade
Still photo Name Related models Thread Part No. Still photo per pkg. Part No.
Plastic blade 230 set ME UR100D M8x1.25RH 198848-3 5 198850-6
198851-4
Plastic blade 230 set MG DUR189, DUR194, DUR368A, DUR368L, UR003G  M10x1.25LH 191Y45-0 12 198426-9
Plastic blade 255 set ME DUR189, DUR190L, DUR191L, DUR368A, DUR368L, DUR369A, DUR369L, DUX60, UR003G,
UR007G, UR008G, UR017G,
UR201C		 M8x1.25RH M8x1.25LH M10x1.25LH 198383-1

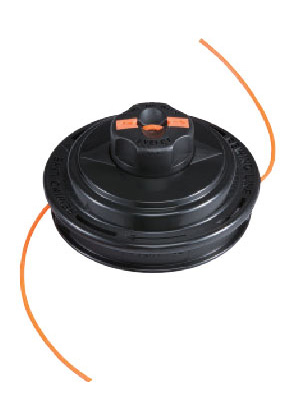

String Trimmer Head
Description Ref. Size Thread size Model No. Cord/ Line Part No.

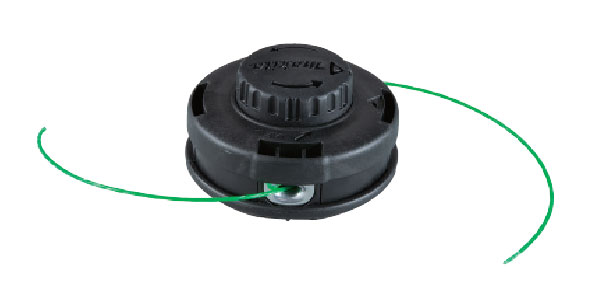

Quick loading Bump & Feed 96-M8R 4'' M8 x 1.25RH DUR189 2.0 mm x 4 m 191D92-5
96-M8L 4'' M8 x 1.25LH DUR187L 2.0 mm x 4 m 191D91-7
96-M10L 4'' M10 x 1.25LH DUR190L, DUR190U, DUR191L, DUR191U, DUR192L, DUR368A,
DUR368L, DUR369A, DUR369L, UR202C, EM400MP,  EM401MP,
EM403MP, EM404MP,  EM405MP, EM406MP, EM408MP, EM409MP		 2.0 mm x 4 m

2.4 mm x 3 m		 191D89-4

191D90-9

121-M10L 5'' M10 x 1.25LH UR008G, UR012G 2.4 mm x 4m 191D93-3

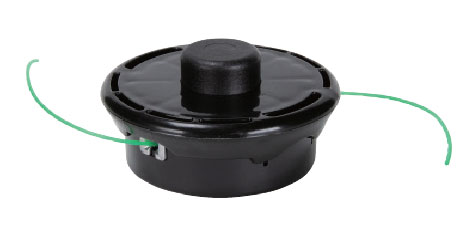

Bump & Feed UN-74L 4.4'' M10 x 1.25LH DUR190L, DUR368A, DUR368L, DUR369A, DUR369L, UR002G, UR003G,
UR101C, UR201C, UR202C,
EM400MP, EM401MP, EM403MP, EM404MP, EM405MP, EM406MP		 2.4 mm x 3.6 m 196324-1

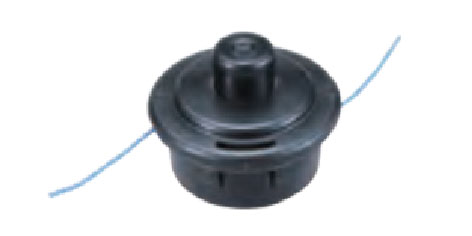

Bump & Feed UN-74L 4.4'' M10 x 1.25LH BBC231U, BBC300L, BC231UD, BC300LD, EM400MP, EM401MP, BUX361, EBH252U, EBH253U,
EM2650UH/LH, EM2651UH/LH, EM2652LH,
EM2511LH, EM2510LH, EM2653LH, EM2654LH		 2.4 mm x 2 m 195149-0

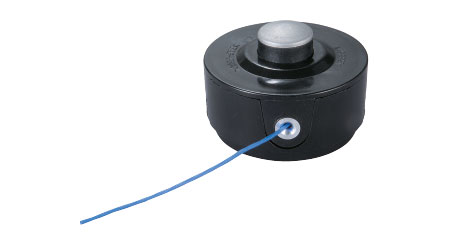

Bump & Feed 76-M8R 3'' M8 x 1.25RH UR100D 1.65 mm x 8 m 198853-0
95-M8L 4'' M8 x 1.25LH DUR187U/L, DUR188U/L, EM2500U/L, EM2600U/L 2.0 mm x 3 m 198386-5
Bump & Feed Bump & Feed ECO 4R 4'' Low Profile M8 x 1.25RH DUR189 2.0 mm x 3 m 197297-1
Bump & Feed ECO 4L 4'' Low Profile M8 x 1.25LH DUR187L 2.0 mm x 3 m 196589-5
Bump & Feed ECO 4L 4'' Low Profile M10 x 1.25LH DUR192L, DUR368A, DUR368L, DUR369A, DUR369L, UR003G, UR007G, UR101C, UR201C, UR202C, EM408MP, EM409MP 2.0 mm x 3 m 197296-3
Bump & Feed Z5L/ 105-M10L 5'' M10 x 1.25LH EM400MP, EM401MP, EM403MP, EM404MP, EM405MP, EM406MP 2.4 mm x 3 m B-05131
5'' M10 x 1.25LH UR012G 2.7 mm x 3 m 199884-2

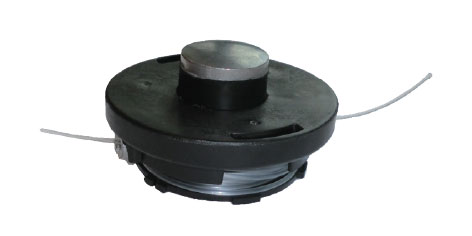

Spool Assembly

Model No. Part No.
UR3000  DA00000001
DUR181  195858-1
DUR193  191Y39-5
Harness
Still photo Name Related Models Type Part no.
Band assembly DUN500W, DUN501W, DUR181, DUR189,
DUR190L, DUR191L, DUR368A, DUR368L,
DUX60, UR100D		 Single 125516-5
Band assembly DUR189, DUR190L, DUR191L, DUR192L,
DUR193, DUR194, DUR368L, DUR369L, DUX18,
DUX60, UR003G		 Single 127508-0
Band assembly DUA200, UN001G, UR016G, UR017G Single 122D94-0
Band assembly DUR369A, UR007G Comfort 122906-3
Band assembly set DUA300, DUA301,
UA003G, UA004G		 Comfort 191K37-5
Sholder harness assy DUB187 Single GB00000198
Four-Leaf Spiral Nylon Cord
Type Model No. Dia. (mm) Length (m) Part No.
Single 1.65 15 E-01731
198860-5
Single 2 15 E-01769
Single 2.4 15 198501-1
Other Nylon Cord (Round, Natural)

Size Part No.
1.65 mm x 15 m DA00000003
1.65 mm x 15 m 196148-5
2.4 mm x 5 m B-01971
Multi Tool Attachements
Model Item Recommended power unit models Part No.

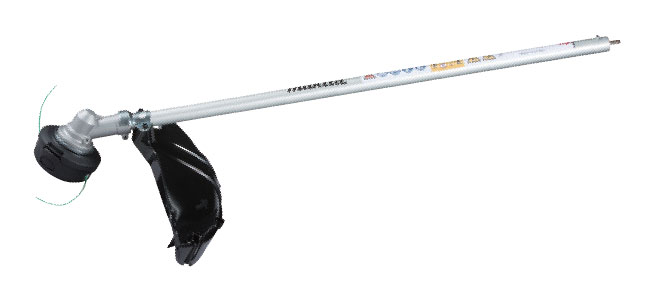

EM403MP Brushcutter
Cutting width: 450 mm (String trimmer head)
230mm (Brush cutter blade size)
Spindle size: M10 x 1.25LH
Arbor size: 25.4 mm Gear ratio
EM403MP: 0.74 (14:19) High speed type		 DUX60, UX01G 198760-7
EM407MP Rotary scissors attach Set Cutting width: 230 mm
Stone & grass antiscattering brushcutter attachment.		 DUX18, DUX60, UX01G 191M57-1
Replacement blade SY00146013
Replacement blade SY00146014

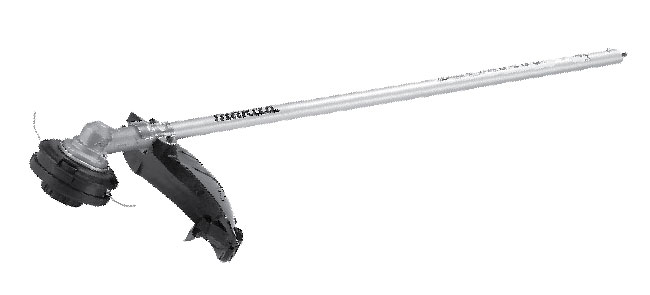

EM408MP Brushcutter
Cutting width: 300 mm (String trimmer head)
230mm (Brush cutter blade size)
Spindle size: M10 x 1.25LH
Arbor size:25.4mm Gear ratio: 0.74 (14:19)		 DUX18, DUX60, UX01G 191N34-9

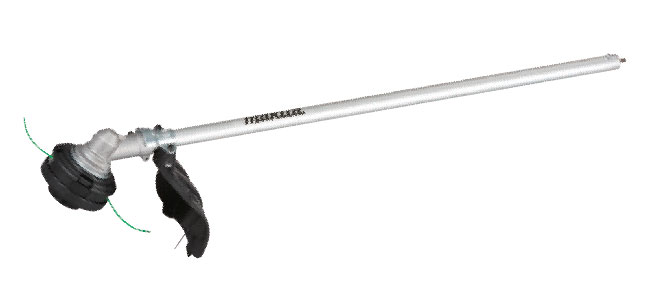

EM409MP Brushcutter (Nallow guard for String trimmer head)
Cutting width: 300 mm
Spindle size: M10 x 1.25LH Gear ratio: 0.74 (14:19)		 DUX18, DUX60, UX01G 191N46-2

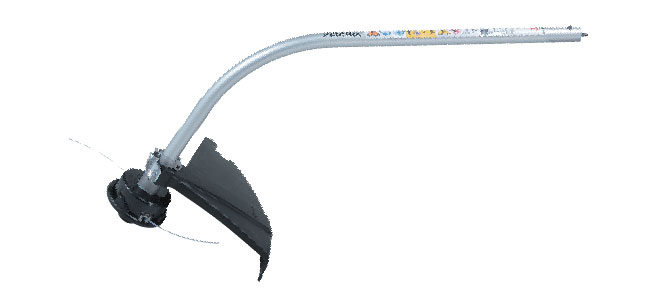

ER400MP String trimmer attachment
Cutting width: 410 mm
Spindle size: M8 x 1.25RH		 DUX18, DUX60, UX01G 196073-0

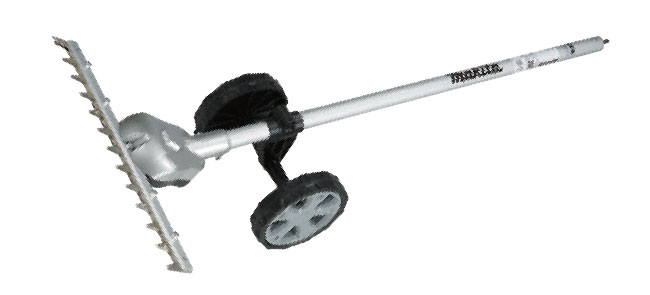

EN424MP Ground trimmer
Effective cutting length: 330 mm		 DUX18, DUX60, UX01G 1913D1-6
Shear blade 330 set 1912V6-6

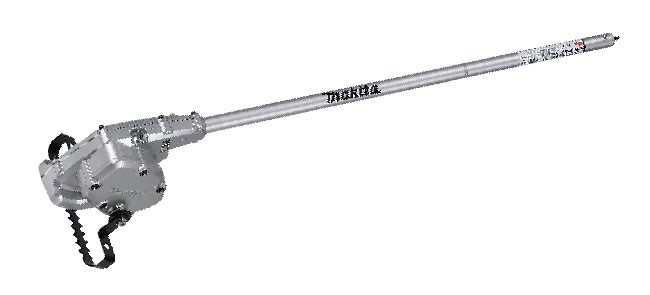

WA400MP Standard equipment:
Weeding blade 220 set,
blade cover assembly, cap, hex wrench		 UX01G, DUX60, DUX18 1913T9-2

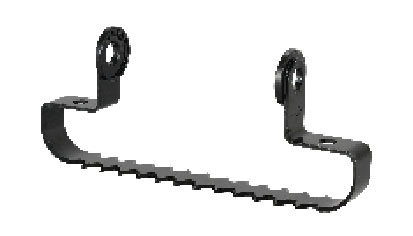

Weeding blade 220 set
Weeding operation in large areas
Working width: 220 mm
Working depth: 35 mm		 1913L5-4

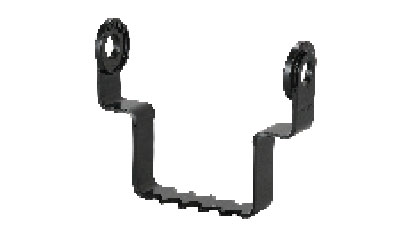

Weeding blade 80 set
Weeding operation in tight areas
Working width: 80 mm
Working depth: 50 mm		 1913L6-2

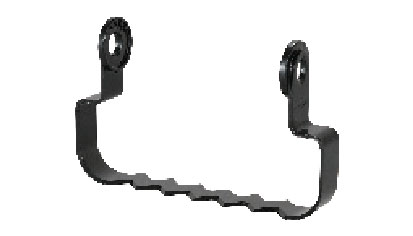

Cultivator blade 170 set
Weeding operation while deeply digging into the soil
Working width: 170 mm
Working depth: 50 mm
*with Blade cover assembly		 1913L7-0

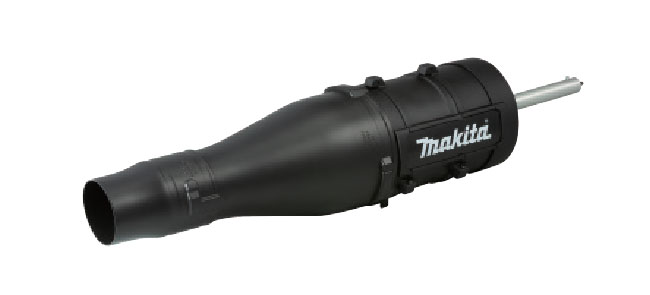

UB400MP Blower
Max. Air volume: 16.6 m³/min (UX01G)		 DUX18, DUX60, UX01G 191F68-4

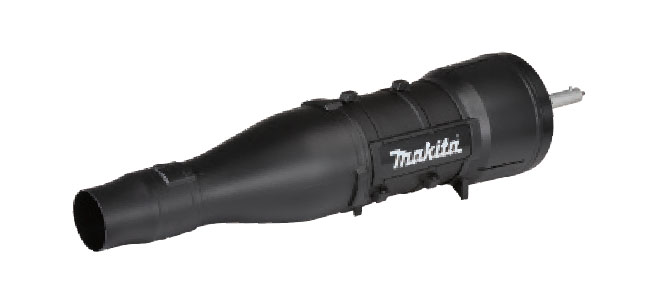

UB401MP Blower
Max. Air volume: 16.4 m³/min (UX01G)		 DUX18, DUX60, UX01G 191P75-7

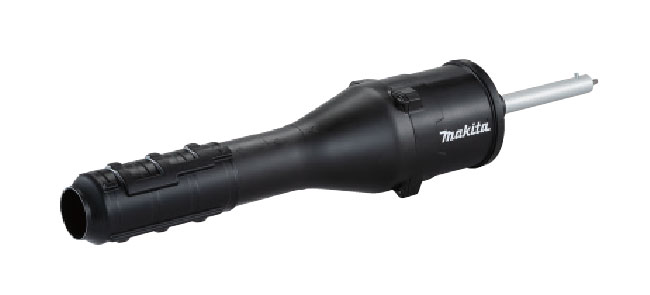

UB402MP Blower
Max. Air volume: 6.2 m³/min (UX01G)		 DUX18, DUX60, UX01G 1912R9-2

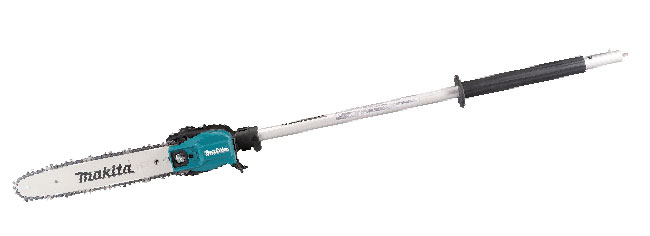

EY403MP Pole saw
Guide bar length: 30 cm (12')
Saw chain: 90PX-46links or 91PX-46links
Motor Mount:A41		 DUX18, DUX60, UX01G 191T41-8

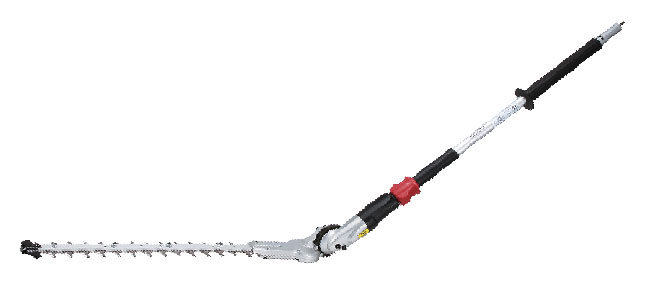

EN401MP Pole hedge trimmer angle adjustment
Effective cutting length: 490 mm		 DUX18, DUX60, UX01G 196341-1

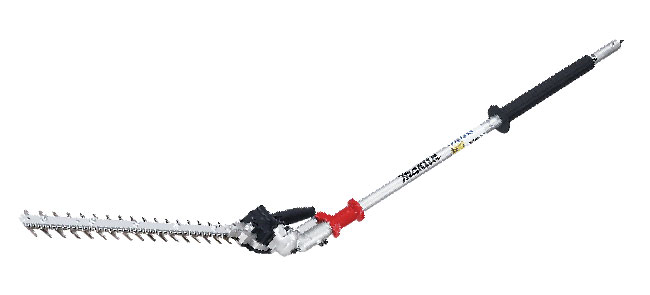

EN402MP Pole hedge trimmer
Effective cutting length: 500 mm		 DUX18, DUX60, UX01G 1912U0-1

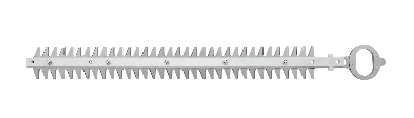

Shear blade 500 set 1912G3-7

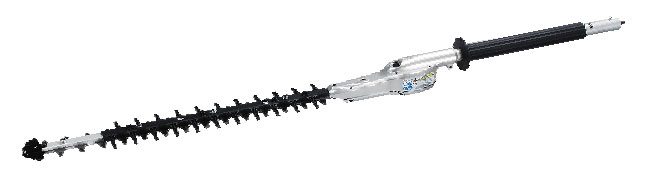

EN410MP Pole hedge trimmer straight
Effective cutting length: 490 mm		 DUX18, DUX60, UX01G 197742-6
EN420MP Ground trimmer
Effective cutting length: 250 mm		 DUX18, DUX60, UX01G 198061-3

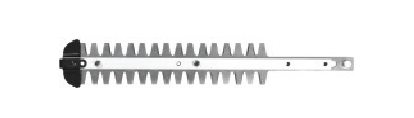

Shear blade 250 set 198195-2

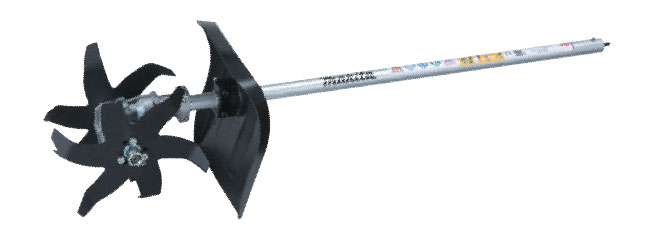

KR400MP Cultivator
Cultivating width: 160 mm		 DUX18, DUX60, UX01G 195716-1
195707-2

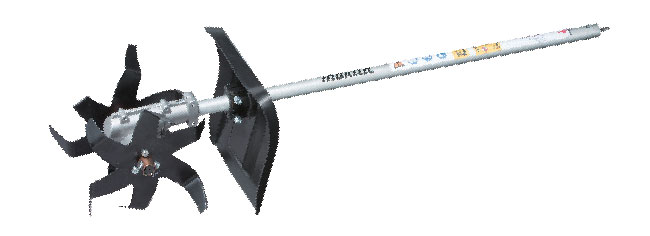

KR401MP Cultivator
Cultivating width: 220 mm
* Rotor LR set: Part No: 199204-0		 DUX18, DUX60, UX01G 199185-8

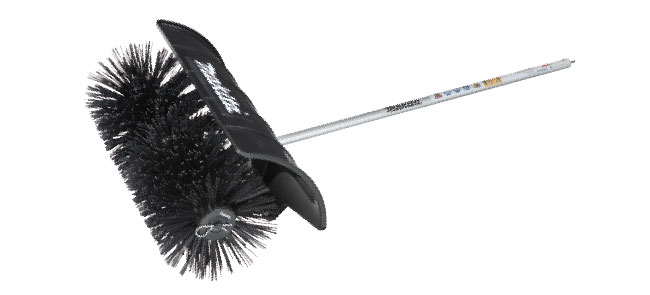

BR400MP Power brush
Working width: 600 mm
* Brush wheel (1pc) Part No: XNR0000548		 DUX18, DUX60, UX01G 199323-2
Brush wheel XNR0000548

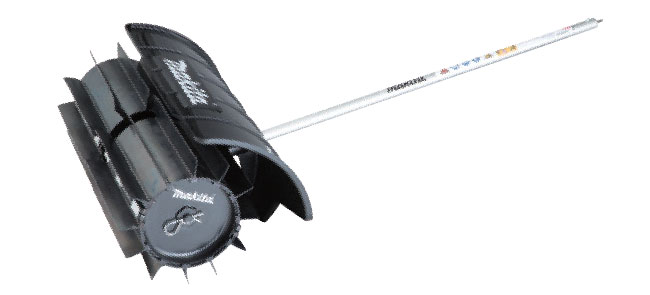

SW400MP Power sweep
Working width: 590 mm
* Sweeper wheel (1pc) Part No: XNR0000549		 DUX18, DUX60, UX01G 199344-4
Sweeper wheel XNR0000549

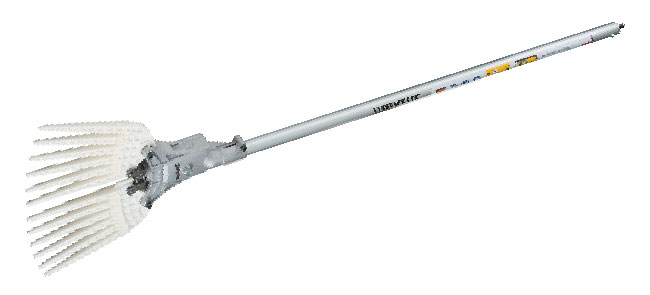

EJ400MP Coffee harvester DUX18, DUX60, UX01G 197163-2

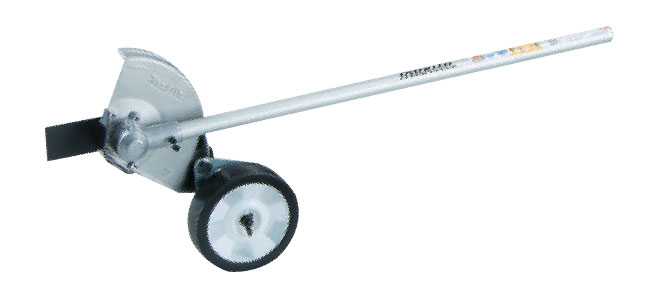

EE400MP Edger attachment
Blade size diameter: 203 mm
Hole diameter: 25.4 mm		 DUX18, DUX60, UX01G 196752-0
Replacement blade 196745-7

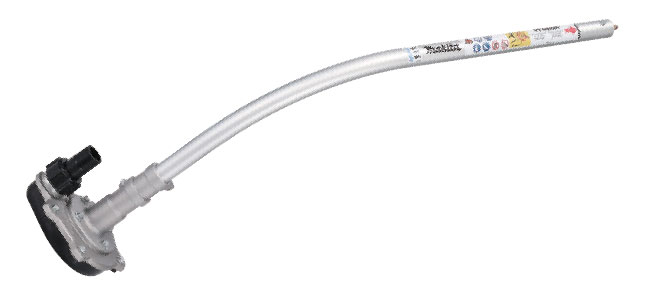

PF400MP Pump Attachment
Hose size (Inner diameter) : 25 mm / 1"
DUX18 : Max. lift height: 11 m    Max, flow rate: 120 l/min
DUX60 : Max. lift height: 14 m    Max, flow rate: 145 l/min
UX01G : Max. lift height: 15 m    Max, flow rate: 150 l/min		 DUX18, DUX60, UX01G PF400MP

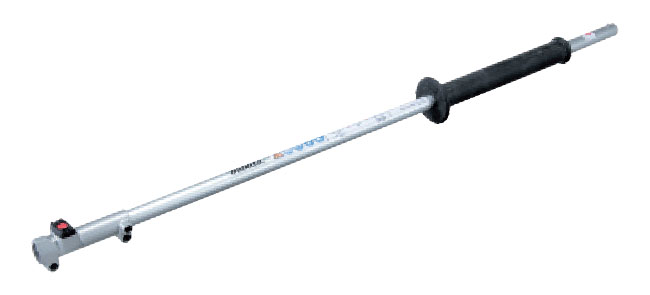

LE400MP Shaft extension attachment 1.08 m (42-1/2")
For Pole saw, Pole hedge trimmer and Coffee harvester		 DUX18, DUX60, UX01G 191E23-0

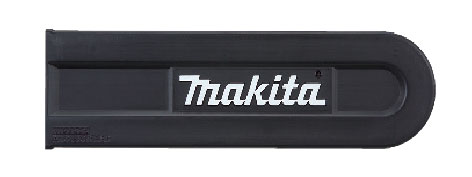

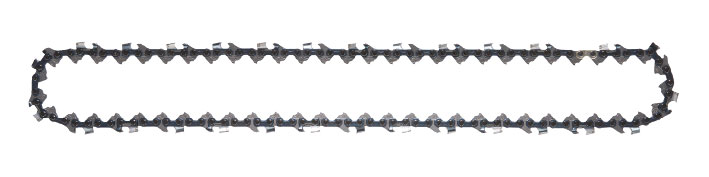

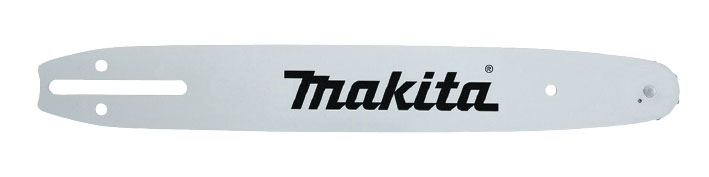

Chain Saws Guide Bar/ Saw Chain/ Guide Bar Cover/ Drive Sprocket
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
Pole Saws
Model No: DUA200
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
20 cm/ 8'' A041 Sprocket nose bar - 1914S3-3 38 1.1 mm/.043'' .325" LP 80TXL MC 1914S1-7 - 413G28-5 Sprocket 0.325'' LP 1911W5-9
Pole Saws
Model No:
*EY402MP, *EY403MP (Pole saw attachment)
DUA300, DUA301, UA003G, UA004G
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
30 cm/ 12'' A041 Sprocket nose bar 7 191G15-1 46 1.1 mm/.043'' 3/8''LP 90PX CC 191H01-8 YES 419288-5 Sprocket 3/8''LP 226992-7
413G23-5
30 cm/ 12'' 7 191G23-2 46 1.3 mm/.050'' 3/8''LP 91PX 191H10-7 419288-5
413G23-5
Cordless Chain Saws Model No: DUC101, UC100D
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
10 cm/ 4'' F002 withoutsprocket - 1910W0-3 26 1.1 mm/.043'' .325" LP 80TXL MC 1910V6-4 - 413M40-1 .325''LP 1911W5-9
Cordless Chain Saws
Model No: DUC150, UC029G
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
15 cm/ 6'' F002 without sprocket - 1912F1-4 32 1.1 mm/ .043' .325" LP 80TXL MC 1912E8-3 - 413T67-3 .325''LP 1911W5-9
Cordless Chain Saws Model No: DUC254
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
25 cm/ 10'' A041 Sprocket nose bar - 191T85-8 46 1.1 mm/.043'' .325" LP 80TXL MC 191T89-0 - 452093-7 Sprocket
.325''LP"
7 tooth		 1911W5-9
25 cm/ 10'' - 191G14-3 40 3/8'' LP 90PX CC 191H00-0 - 452093-7 Sprocket
3/8''LP
6 tooth		 199063-2
30 cm/ 12'' 7 191G15-1 46 191H01-8 - 419288-5
  413G23-5
30 cm/ 12'' - 191G23-2 46 1.3 mm/.050'' 91PX 191H10-7 - 419288-5
413G23-5
Cordless Chain Saws Model No: UC022G
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
35 cm/ 14'' A041 Sprocket nose bar - 191T87-4 59 1.1 mm/.043'' .325" LP 80TXL MC 191T91-3 - 419288-5 Sprocket .325''LP" 191V91-5
413G23-5
40 cm/ 16'' - 191T88-2 64 191T92-1 - 419242-9
413G21-9
Cordless Chain Saws Model No: DUC356, DUC406
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
25 cm/ 10" A041 Sprocket nose bar - 191T85-8 46 1.1mm/ .043'' .325" LP 80TXL MC 191T89-0 YES 452093-7 Sprocket
.325''LP
7 tooth		 1911W5-9
35 cm/ 14'' 8 191T87-4 59 191T91-3 419288-5
413G23-5
40 cm/ 16'' - 191T88-2 64 191T92-1 419242-9
25 cm/ 10" A041 Sprocket nose bar - 191G14-3 40 1.1mm/ .043'' 3/8'' LP 90PX CC 191H00-0 YES 452093-7 Sprocket 3/8''LP
6 tooth		 199063-2
30 cm/ 12'' - 191G15-1 46 191H01-8   419288-5
413G23-5
35 cm/ 14'' - 191G16-9 52 191H02-6   419288-5
413G23-5
40 cm/ 16'' - 191G17-7 56 191H03-4   419242-9
30 cm/ 12" A041 Sprocket nose bar - 191G23-2 46 1.3mm/ .050'' 3/8'' LP 91PX CC 191H10-7 YES 419288-5
413G23-5
35 cm/ 14" - 191G24-0 52 191H11-5 419288-5
413G23-5
40 cm/ 16'' - 191G25-8 56 191H12-3 419242-9
Cordless Chain Saws Model No: DUC307
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
30 cm/ 12" A041 Sprocket nose bar - 191G15-1 46 1.1 mm/ .043'' 3/8" LP 90PX CC 191H01-8 YES 419288-5 Sprocket 3/8''LP 6 tooth 199063-2
413G23-5
35 cm/ 14" - 191G16-9 52 191H02-6 419288-5
413G23-5
40 cm/ 16" - 191G17-7 56 191H03-4 419242-9
413G21-9
30 cm/ 12" - 191G23-2 46 1.3 mm/ .050'' 3/8" LP 91PX 191H10-7 419288-5
413G23-5
35 cm/ 14" - 191G24-0 52 191H11-5 - 419288-5
413G23-5
40 cm/ 16" - 191G25-8 56 191H12-3 - 419242-9
Cordless Chain Saws Model No: DUC353, DUC355
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
30 cm/ 12'' A041 Sprocket nose bar - 191G15-1 46 1.1 mm/ .043'' 3/8" LP 90PX CC 191H01-8 YES 419288-5 Sprocket 3/8''LP 6 tooth 199063-2
413G23-5
35 cm/ 14" - 191G16-9 52 191H02-6 419288-5
413G23-5
40 cm/ 16" - 191G17-7 56 191H03-4 419242-9
30 cm/ 12" - 191G23-2 46 1.3 mm/ .050'' 3/8" LP 91PX 191H10-7 419288-5
413G23-5
35 cm/ 14" - 191G24-0 52 191H11-5 419288-5
413G23-5
40 cm/ 16" - 191G25-8 56 191H12-3 419242-9
Cordless Chain Saws Model No: UC004G
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
25 cm/ 10'' A041 Sprocket nose bar - 191T85-8 46 1.1mm/ .043" .325" LP 80TXL MC 191T89-0 YES 452093-7 Sprocket .325''LP 7 tooth 191V91-5
35 cm/ 14'' A041 Sprocket nose bar - 191T87-4 59 191T91-3 419288-5
413G23-5
25 cm/ 10'' A041 Sprocket nose bar - 191G14-3 40 1.1mm/ .043" 3/8'' LP 90PX CC 191H00-0 452093-7 Sprocket 3/8''LP 6 tooth 191V90-7
30 cm/ 12'' A041 Sprocket nose bar - 191G15-1 46 191H01-8 419288-5
413G23-5
35 cm/ 14'' A041 Sprocket nose bar - 191G16-9 52 191H02-6 419288-5
413G23-5
30 cm/ 12'' A041 Sprocket nose bar - 191G23-2 46 1.3mm/ .050" 3/8'' LP 91PX CC 191H10-7 419288-5
413G23-5
35 cm/ 14'' A041 Sprocket nose bar - 191G24-0 52 191H11-5 419288-5
413G23-5
Cordless Chain Saws Model No: UC016G
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
35 cm/ 14'' A041 Sprocket nose bar - 191T87-4 59 1.1mm/ .043" .325" LP 80TXL MC 191T91-3 YES 419288-5 Sprocket .325''LP
7 tooth		 191V91-5
413G23-5
40 cm/ 16'' - 191T88-2 56 191T92-1 419242-9
30 cm/ 12'' - 191G15-1 46 1.1mm/ .043" 3/8'' LP 90PX CC 191H01-8 419288-5 Sprocket 3/8''LP 6 tooth 191V90-7
413G23-5
35 cm/ 14'' - 191G16-9 52 191H02-6 419288-5
413G23-5
40 cm/ 16'' - 191G17-7 56 191H03-4 419242-9
413G21-9
30 cm/ 12'' - 191G23-2 46 1.3mm/ .050'' 91PX 191H10-7 419288-5
413G23-5
35 cm/ 14'' - 191G24-0 52 191H11-5 419288-5
413G23-5
40 cm/ 16'' - 191G25-8 56 191H12-3 419242-9
Electric Chain Saws Model No: UC3541A, UC4041A
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
30 cm/ 12'' A041 Sprocket nose bar - 191G15-1 46 1.1 mm/ .043'' 3/8'' LP 90PX CC 191H01-8 - 419288-5 Sprocket 3/8''LP 6 tooth 221526-1
413G23-5
35 cm/ 14'' - 191G16-9 52 191H02-6 419288-5
413G23-5
40 cm/ 16'' - 191G17-7 56 191H03-4 419242-9
413G21-9
30 cm/ 12'' - 191G23-2 46 1.3 mm/ .050" 91PX 191H10-7 419288-5
413G23-5
35 cm/ 14'' - 191G24-0 52 191H11-5 419288-5
413G23-5
40 cm/ 16'' - 191G25-8 56 191H12-3 419242-9
Electric Chain Saws Model No: UC3551A, UC4051A
Guidebar Saw Chain Bar Cover Drive Sprocket
Bar length Motor Mount Type Drive tooth Part No. No. of drive links Gauge Pitch Type Cutter type Part No. (Carton) Low kickback saw chain (ANSI / CSA) Part No. Type Part No.
30 cm/ 12'' A041 Sprocket nose bar 7 191G23-2 46 1.3 mm/ .050" 3/8'' LP 91PX CC 191H10-7 YES 419288-5 Sprocket 3/8''LP 6 tooth 221521-1
413G23-5
35 cm/ 14'' - 191G24-0 52 191H11-5 419288-5
413G23-5
40 cm/ 16'' - 191G25-8 56 191H12-3 419242-9

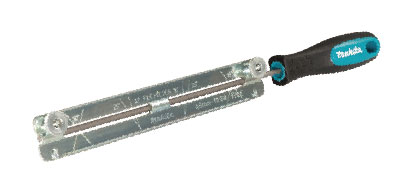

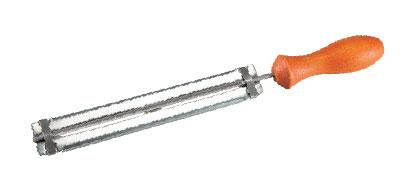

File and file holder

For chain saw
*with grip


Saw chain type Round file File and File handle and File holder
Size Part No. Qty Part No.
25F, 25AP, 80TXL, 91P, 91PX, 91PXL, 91VXL, M41, M43 4.0 mm 5/32" *744003-1 1 -
- D-70948
198457-8
90PX, 90SG - - D-70954
95VPX/ TXL, 20BPX/ LPX, 21BPX/ LPX, 22BPX/ LPX, 082, 086, 686, 484 - - D-70960
72DPX/ LPX, 73DPX/ LPX, 75DPX/ LPX - - D-70976
72DPX/ LPX/ APX/ EXL/ EXJ/ LGX/ JGX/ JPX/ RDV, 73DPX/
LPX/ EXL/ EXJ/ LGX/ JGX/ JPX/ RDV, 75DPX/ LPX / EXL/ EXJ/
LGX/ JGX/ JPX/ RDV, 496, 093, 099		 - - D-70982
Flat File, Depth Gauge

For all saw chain
Depth gauge: .025" / 0.64 mm

Flat file and File handle and Depth gauge Part No.
D-70998

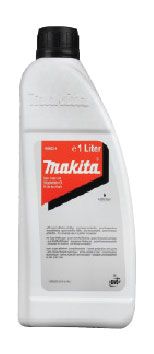

Chain Oil

Item Size Part No.
Item With Makita chain oil, chain oiling is formulated to adhere to the
bar and chain and to reduce wear. Adhesion additive helps keep sap and pitch from clinging to the bar and chain. (Not available in Austria)		 100 ml 182229-1
199897-3
1 L 195093-1

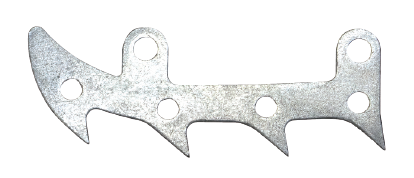

Spike bumper
Model Part No.
DUC254 199067-4
Makita reserves the right to change specification of products without notice. Standard equipment and specifications may differ from country to country. Some products published here may not be sold in your country. The contents of the leaflets can be different from current products since they are original.

Copyright © 2026 Makita Power Tools (Malaysia) Sdn. Bhd. 201301001778 (1031615-M). All Rights Reserved. Web designed by Entertop.

Loading...
