Other Accessory and Attachment
Total: 180 record(s) at page 2 of 15

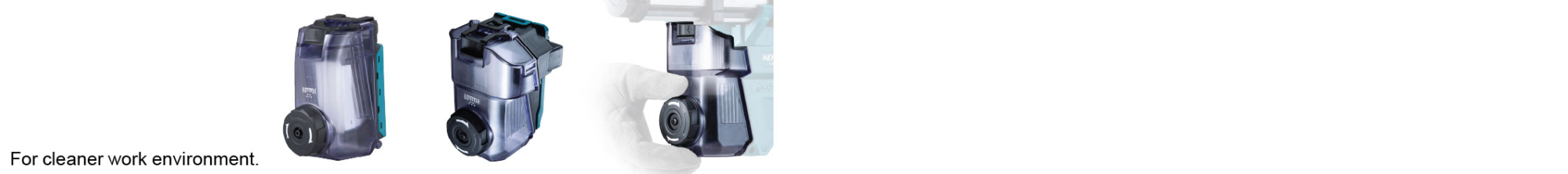

Dust case for dust extraction system
| Description | Part No |
| DX01 | 196163-9 |
| DX05 | 199595-9 |
| DX10 | 127214-7 |
| DX06, DX08, DX12 | 199555-1 |
| DX15 | 199586-0 |
| DX16 | 1911P5-0 |

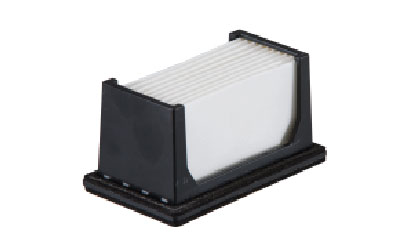

Filter for dust extraction system
For cleaner work environment.
| Shape | Description | Part No |
 |
DX01, DX06, DX08, DX10, DX12, DX15 | 199557-7 |
| DX05, DX16 | 199596-7 |

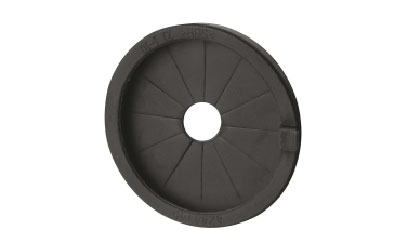

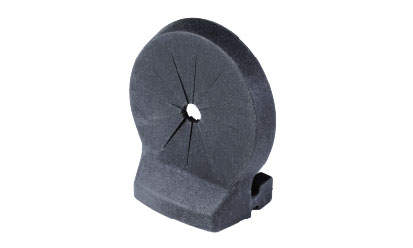

Sealing cap for dust extraction system
| Shape | Description | Part No |
 |
DX01, DX06, DX05, DX08, DX10, DX12 | 424474-5 |
 |
DX01, DX06, DX05, DX15 | 422784-4 |
| DX16 | 422992-7 |

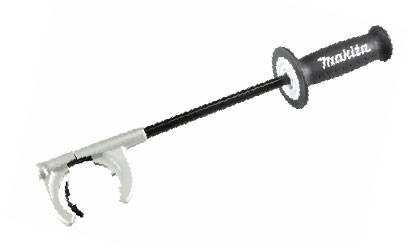

Side grip, handle for hammer drills
| Still photo | Name | Related models | Part No. |
 |
Grip assembly set | DDF484, DF002G, DHP484, HP002G | 191E41-8 |
 |

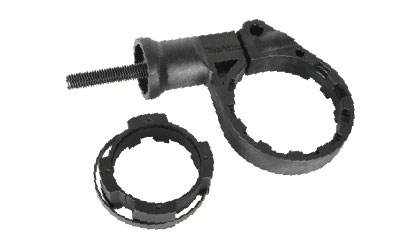

Grip base set | HR1841F | 194581-5 |
 |

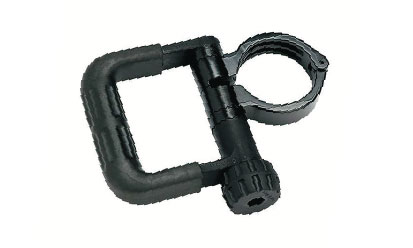

Side handle 73 set | HR005G, HR4003C, HR4013C | 196792-8 |

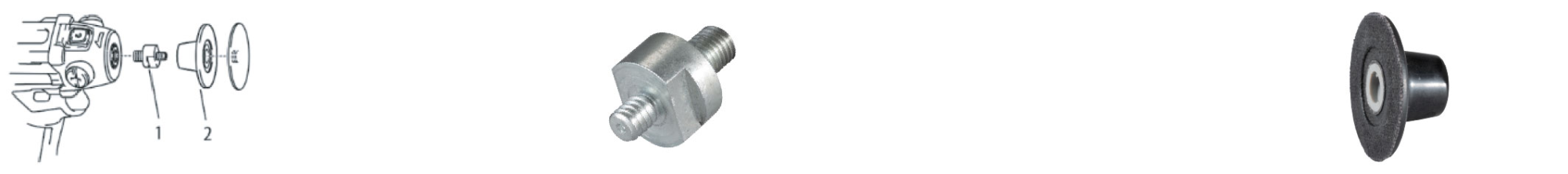

Sanding pad for twist-on/ twist-off system
| Models | Rubber Pad for Twist-on/ Twist-off System | ||||||||
| 1. Adapter for Rubber Pad | 2. Rubber Pad | ||||||||
| Thread Size | Thread Size | Wrench Size | Parts No | Pad Type | Thread Size | Pad Size (mm) | Max RPM | Part No | |
| DPV300 PV301D | 5/8''-24 UNF | 1/4''-20 UNC | 13 | 743126-2 | For Twist-on/ twist-off system | 1/4''-20 UNC | 50 | 16,000 | 743124-6 |

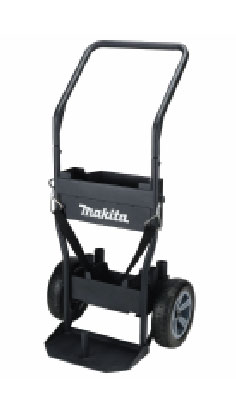

Hammer carrier
| Name | Related models | Part No. |
| Hammer carrier | HM004G | JM00000674 |
Hammer bit grease and machine grease
| Still photo | Name | Note | Related models | Part No. |
 |

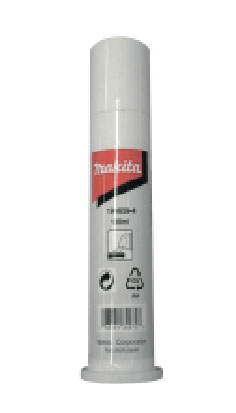

Grease vessel set | Hammer bit grease 100ml | All Rotary Hammer, Demolition Hammer and Electric Breaker | 194683-7 |
 |

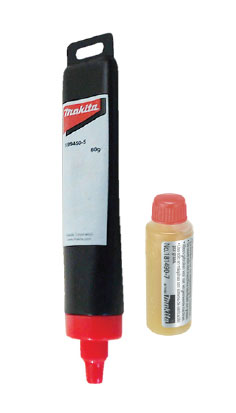

Grease set | 80ml | DHR171, HR140D, HR166D, HR3200C, HR3210C, HR3210FCT, HR3540C, HR3541FC, HR4002, HR4501C, HR4510C, HR4511C | 1914C6-5 |
| - | HM0810, HM0810T, HM1201 | 1914C5-7 | ||
| Oil vessel set | 100ml | HM1306 | 1914A4-5 | |
 |

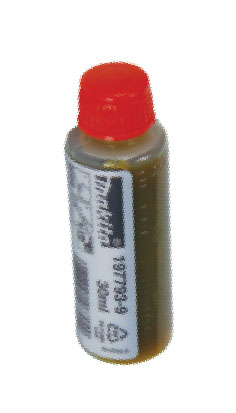

Oil vessel set | Machine grease 26g | HR001G, HR007G, HR010G, HR140D, HR166D, HR2320T, HR2631FT, HR2652 | 195127-0 |
Inner flange & lock nut
(For depressed center wheel, diamond wheel and Cutting wheel )
* Do not use Ezynut with Makita Super Flange or Makita angle grinder with “F” on the end of the model No. Those flanges are so thick that the entire threaded
cannot be retained by the spindle.
Applicable models:Makita 180mm/230mm angle grinders, and following models equipped with M14 spindle
| Wheel size | Brake | Models | Spindle thread | for Depressed center wheel (Type:27, 28, 29, 42 ) | for Abrasive cut-off wheel (Type:41) | for Diamond cut-off wheel | Lock nut | Ezynut (Toolless Lock nut) | |||||||
| Size | Arbor size (mm) | Inner flange | Size | Arbor size (mm) | Inner flange | Size | Arbor size (mm) | Inner flange | Size | Part No. | |||||
| Part No. | Part No. | Part No. | Part No. | ||||||||||||
| 100 mm | Without Brake System | - | M10x1.5 | 29 | 16 | 224491-3 | 29 | 16 | 224491-3 | 29 | 16/20 | 224491-3 | 10-29 | 224610-1 | - |
| M10x1.25 | 30 | 16 | 224270-9 | 30 | 16 | 224270-9 | 30 | 16/20 | 224270-9 | 10-29 | 224578-1 | - | |||
| M10x1.25 | 35 | 16 (5/8'') | 224377-1 | 35 | 16 (5/8'') | 224377-1 | 35 | 16 (5/8'') | 224377-1 | 10-29 | 194608-1 | - | |||
| M10x1.5 | 29 | 16 | 224491-3 | 29 | 16 | 224491-3 | 29 | 16/20 | 224491-3 | 10-29 | 224610-1 | - | |||
| With Brake System | M10x1.5 | 30 | 16 | 224483-2 | 30 | 16 | 224483-2 | 30 | 16/20 | 224483-2 | 10-29 | 224610-1 | - | ||
| 115 mm / 125 mm | Without Brake System | - | M14x2 (DIN) | 45 | 22.23 (7/8'') | 224490-5 | 45 | 22.23 (7/8'') | 224490-5 | 45 | 22.23 (7/8'') | 224490-5 | 14-45 | 224485-8 | *195354-9 |
| 224554-5 | |||||||||||||||
| 42 | 224485-8 | ||||||||||||||
| 224554-5 | |||||||||||||||
| With Brake System | M14x2 (DIN) | 42B | 22.23 (7/8'') | 224447-6 | 42B | 22.23 (7/8'') | 224447-6 | 42B | 22.23 (7/8'') | 224447-6 | 14-45 | 224485-8 | *195354-9 | ||
| 224554-5 | |||||||||||||||
| 150 mm | Without Brake System | - | M14x2 (DIN) | 42 | 22.23 (7/8'') | 224490-5 | 42 | 22.23 (7/8'') | 224490-5 | 42 | 22.23 (7/8'') | 224490-5 | 14-45 | 224485-8 | *195354-9 |
| 224554-5 | |||||||||||||||
| M14x2 (DIN) | 45 | 22.23 (7/8'') | 224490-5 | 45 | 22.23 (7/8'') | 224490-5 | 45 | 22.23 (7/8'') | 224490-5 | 14-45 | 224485-8 | *195354-9 | |||
| 224554-5 | |||||||||||||||
| 180 mm / 230 mm | Without Brake System | - | M14x2 (DIN) | 45 | 22.23 (7/8'') | 224490-5 | 45 | 22.23 (7/8'') | 224490-5 | 45 | 22.23 (7/8'') | 224490-5 | 14-45-8.5 | 224485-8 | *195354-9 |
| 14-45-8.5 | 224554-5 | ||||||||||||||
| 14-45-11 | 224543-0 | ||||||||||||||
| M14x2 (DIN) | 45 | 22.23 (7/8'') | 224490-5 | - | - | 45 | 22.23 (7/8'') | 224490-5 | 14-45-8.5 | 224485-8 | - | ||||
| 14-45-8.5 | 224554-5 | ||||||||||||||
| 14-45-11 | 224543-0 | ||||||||||||||
| M14x2 (DIN) | 45 | 22.23 (7/8'') | 224490-5 | 45 | 22.23 (7/8'') | 224490-5 | 45 | 22.23 (7/8'') | 224490-5 | 14-45-8.5 | 224485-8 | *195354-9 | |||
| 14-45-8.5 | 224554-5 | ||||||||||||||
| 14-45-11 | 224543-0 | ||||||||||||||
| With Brake System | GA7070, GA7071, GA9070, GA9071 |
M14x2 (DIN) | 42B | 22.23 (7/8'') | 224447-6 | 42B | 22.23 (7/8'') | 224447-6 | 42B | 22.23 (7/8'') | 224447-6 | 14-45-8.5 | 224485-8 | *195354-9 | |
| 224554-5 | |||||||||||||||
| M14x2 (DIN) | 42B | 22.23 (7/8'') | 224447-6 | - | - | - | 42B | 22.23 (7/8'') | 224447-6 | 14-45-8.5 | 224485-8 | *195354-9 | |||
| 224554-5 | |||||||||||||||
Hook & loop pad for polisher, sander
| Still photo | Name | Related models | Outer diameter mm (inch) | Part No. |
 |
Triangle plate complete set | DBO481 | - | 191Y22-2 |
 |
Rectangle plate complete set | - | 191Y23-0 | |
 |
Pad complete set | - | 191Y24-8 | |
 |
Pad 125 set | DPO500, DPO600, PO5000C, PO6000C | 125 | 197923-2 |
| Pad 150 set | 150 | 197929-0 | ||
 |
Pad 123 set | DBO180, BO5030, BO5031, BO5040, BO5041 | 123 | 743081-8 |
 |
Pad 130 set | BO6050 | 130 | 197317-1 |
 |
Pad 150 set | BO6050 | 150 | 197315-5 |
 |
Pad 150 set | BO6050 | 150 | 197314-7 |
 |
Pad 150 set | BO6050 | 150 | 197316-3 |
 |
Pad 220 set | DSL801 | 220 (8-5/8) | 199938-5 |
 |
Pad 210 set | DSL801 | 210 (8-1/4) | 199939-3 |
 |
199940-8 |
Pad complete for sander
| Still photo | Name | Related models | Part No. |
 |
Square pad set | BO005CG, BO006CG | 1914H9-4 |
 |
Triangle pad set | 1914J0-6 | |
 |
Pad 125 set | BO001CG, BO003CG | 1914J2-2 |
 |
Pad complete set | DBO481 | 191Y25-6 |
 |
Pad complete set | BO3710, DBO380 | 194929-1 |
 |
194930-6 | ||
 |
Pad complete set | BO4901 | 193523-6 |
| 193521-0 | |||
 |
Pad complete set | BO4556 | 158324-9 |
Felt pad for polisher, sander
| Still photo | Name | Related models | Outer diameter mm (inch) | Part No. |
 |
Felt pad 150 set | BO6050, DPO500, DPO600 | 150 (5-7/8) | 193288-0 |
 |
Felt pad set | BO5031, BO5041, DBO180, DPO500, DPO600, PO5000C, PO6000C | 125 (4-7/8) | 196152-4 |
Sponge pad for polisher, sander
| Still photo | Name | Related models | Outer diameter mm (inch) | Part No. |
 |
Sponge pad 80 set | DPV300, PV301D | 80 (3-1/8) | 191N90-9 |
 |
191N91-7 | |||
 |
Sponge pad 125 set | DBO180, DPO500, DPO600, BO5031, BO5041, PO5000C, PO6000C | 125 (5) | 794558-6 |
 |
Sponge pad 190 set | PV7001C | 190 (7-1/2) | 193470-1 |
