Jig Saw/ Recipro Sawing

Total: 53 record(s) at page 5 of 5

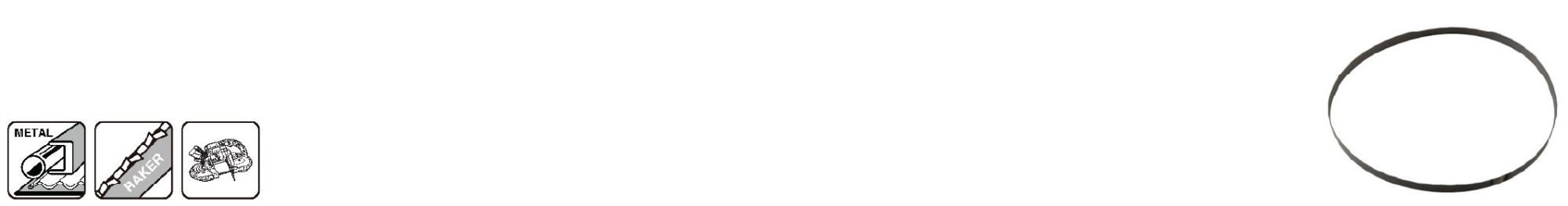

Band Saw Blade for 1140 mm Metal Raker Type

Range	Length mm	Width mm	Tooth type	Work material	Item material	TPI	Note	Sales pkg qty	Part No.
	1140	13	Raker set	Plastics, Non-ferrous metal, Mild steel	HCS	14	Material thickness: More than 5mm	3	792560-3
	1140	13	Raker set		HCS	18	Material thickness: 4-5mm	3	792559-8
	1140	13	Raker set		HCS	24	Material thickness: Less than 4mm	3	792558-0
	1140	13	Raker set	Plastics, Non-ferrous metal, Mild steel, Cast steel and cast iron, Hard steel and stainless steel	BiM	10	Material thickness: More than 5.5mm	1	B-30128
	1140	13	Raker set		BiM	14	Material thickness: More than 5mm	1	792557-2
	1140	13	Raker set		BiM	18	Material thickness: 4-5mm	1	792556-4

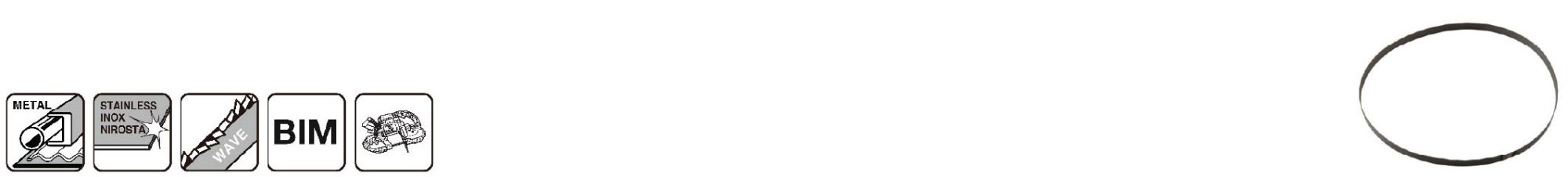

Band Saw Blade for 1140 mm Metal Wave Type

Range	Length mm	Width mm	Tooth type	Work material	Item material	TPI	Note	Sales pkg qty	Part No.
	1140	13	Wave set	Plastics, Non-ferrous metal, Mild steel, Cast steel and cast iron, Hard steel and stainless steel	BiM	14	Material thickness: More than 5mm	1	194691-8
	1140	13	Wave set		BiM	24	Material thickness: Less than 4mm	1	194692-6

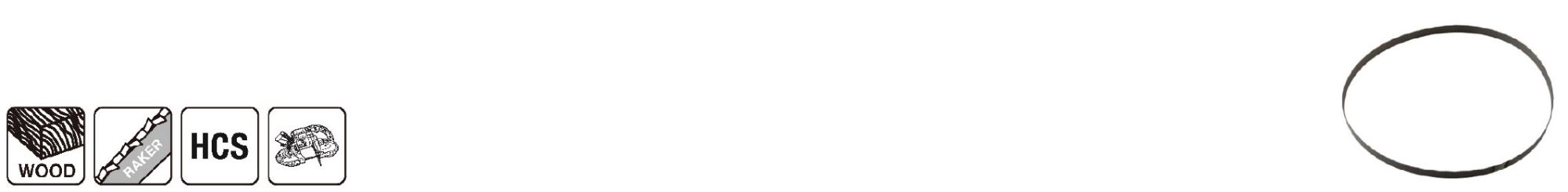

Band Saw Blade for 1140 mm Wood Raker Type

Range	Length mm	Width mm	Tooth type	Work material	Item material	TPI	Sales pkg qty	Part No.
	1140	13	Raker set	Wood	HCS	6	3	792567-9

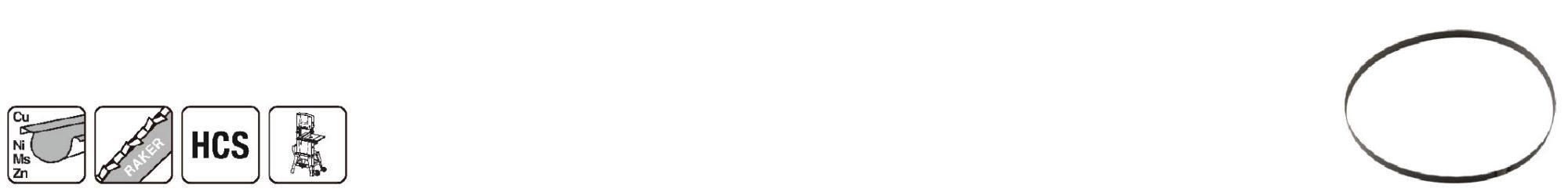

Band Saw Blade for 2240 mm Metal Raker Type

Range	Length mm	Width mm	Tooth type	Work material	Item material	TPI	Note	Sales pkg qty	Part No.
	2240	16	Raker set	Non-ferrous metal	HCS	14	Material thickness:More than 5mm	3	B-16695

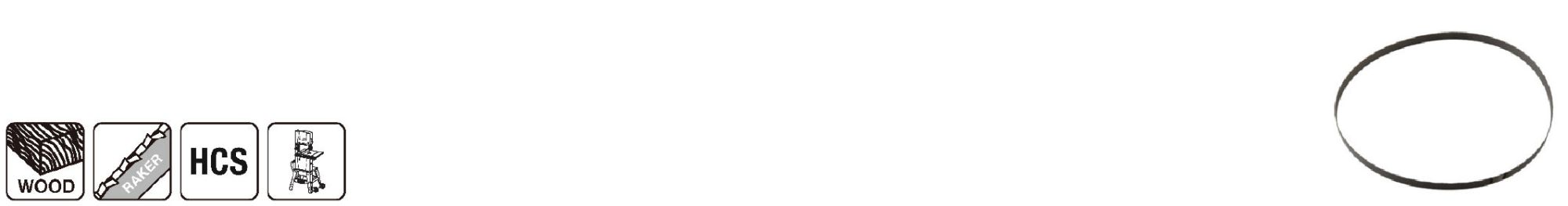

Band Saw Blade for 2240 mm Wood Raker Type

Range	Length mm	Width mm	Tooth type	Work material	Item material	TPI	Sales pkg qty	Part No.
	2240	6	Raker set	Wood for curve cut	HCS	6	3	B-16689
	2240	13	Raker set	Wood for universal cut	HCS	4	3	B-16673
	2240	16	Raker set	Wood for cross cut	HCS	4	3	B-16667
