Drilling (Masonry)
Total: 81 record(s) at page 1 of 7

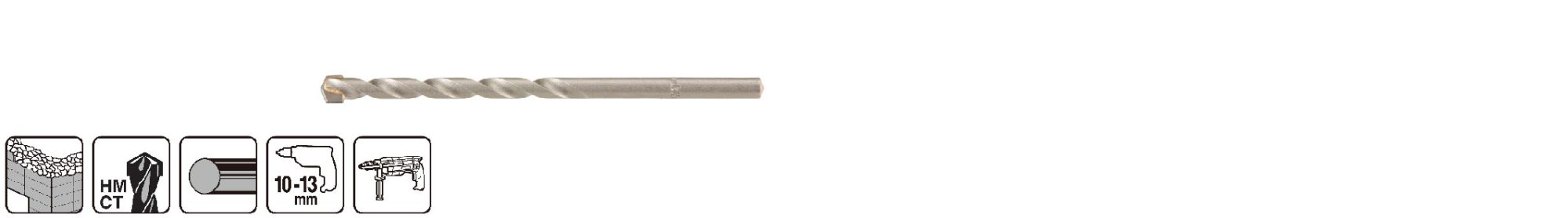

TCT Drill Bit with Straight Shank
| Range | Bit dia. mm | Length mm | Working length mm | Sales pkg qty | Part No. |
 |
3 | 60 | 30 | 1 | D-05228 |
| 4 | 70 | 35 | 1 | D-05234 | |
| 5 | 85 | 45 | 1 | D-05240 | |
| 6 | 100 | 60 | 1 | D-05256 | |
| 6 | 150 | 90 | 1 | D-05262 | |
| 7 | 100 | 55 | 1 | D-05278 | |
| 8 | 110 | 60 | 1 | D-05290 | |
| 8 | 150 | 90 | 1 | D-05309 | |
| 9 | 150 | 90 | 1 | D-05315 | |
| 10 | 150 | 90 | 1 | D-05321 | |
| 10 | 400 | 315 | 1 | D-18960 | |
| 11 | 150 | 90 | 1 | D-05337 | |
| 12 | 150 | 90 | 1 | D-05343 | |
| 12 | 400 | 315 | 1 | D-17697 | |
| 12 | 600 | 505 | 1 | D-17728 | |
| 13 | 150 | 85 | 1 | D-05359 | |
| 14 | 150 | 85 | 1 | D-05365 | |
| 14 | 400 | 315 | 1 | D-18976 | |
| 16 | 150 | 85 | 1 | D-05387 | |
| 16 | 400 | 315 | 1 | D-17706 | |
| 16 | 600 | 505 | 1 | D-17734 | |
| 18 | 400 | 315 | 1 | D-18982 | |
| 20 | 400 | 315 | 1 | D-17712 | |
| 20 | 600 | 505 | 1 | D-17740 |

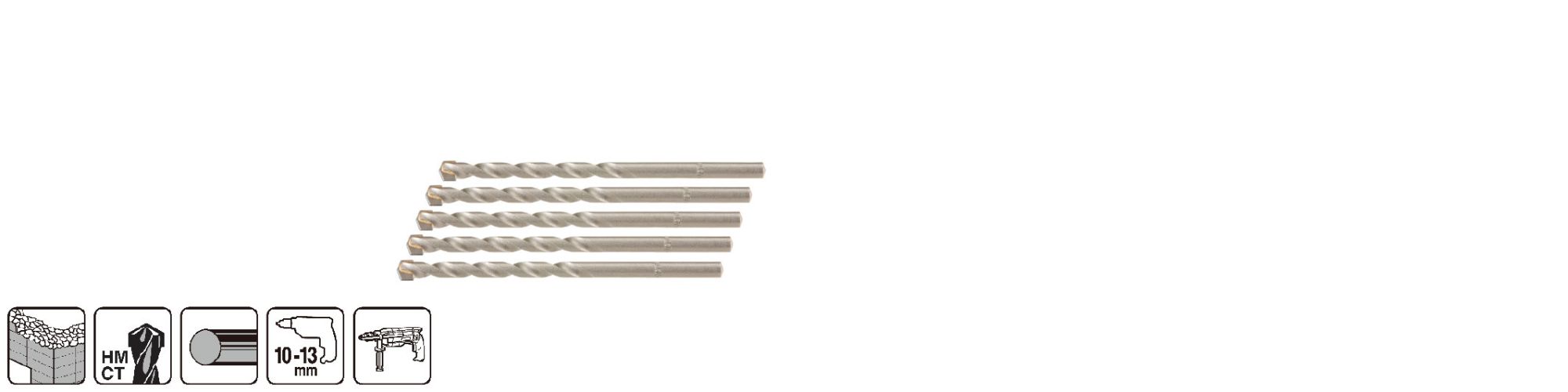

TCT Drill Bit with Straight Shank Multiple
| Range | Bit dia. mm | Length mm | Working length mm | Sales pkg qty | Part No. |
|
3 | 60 | 30 | 5 | D-71788 |
| 4 | 70 | 35 | 5 | D-71794 | |
| 5 | 85 | 45 | 5 | D-71803 | |
| 6 | 100 | 60 | 5 | D-71819 | |
| 6 | 150 | 90 | 5 | D-71825 | |
| 6.5 | 100 | 55 | 5 | D-71831 | |
| 7 | 100 | 60 | 5 | D-16508 | |
| 8 | 110 | 60 | 5 | D-16514 | |
| 8 | 110 | 60 | 5 | D-71847 | |
| 8 | 150 | 90 | 5 | D-71853 | |
| 10 | 150 | 90 | 5 | D-71869 |

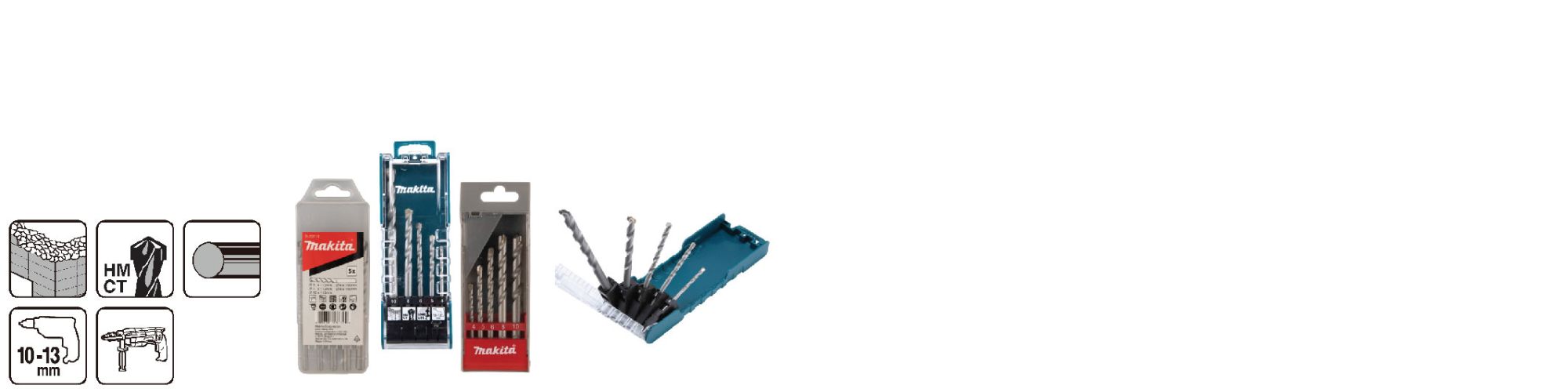

TCT Drill Bit with Straight Shank Assortment in Plastic Case
| Range | Size mm | Sales pkg qty | Part No. |
|
5x85, 5.5x100, 6.5x100, 8x150, 10x150 | 5 | D-36762 |
| 5x110, 6x110, 7x110, 8x110, 10x110 | 5 | D-20719 |

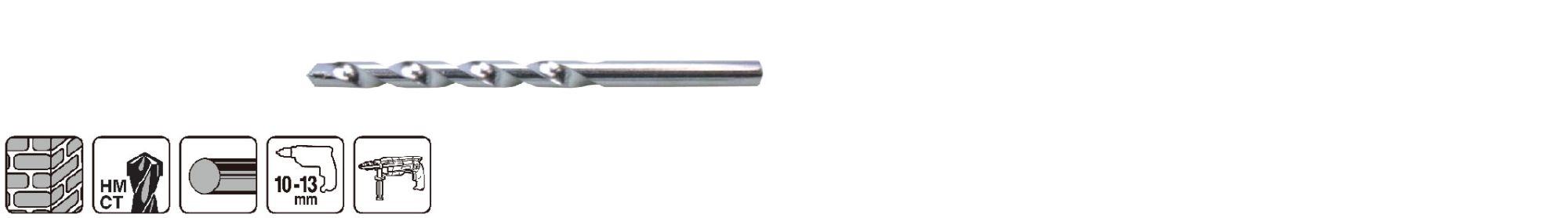

TCT Drill Bit with Straight Shank Brick
| Range | Bit dia. mm | Length mm | Working length mm | Sales pkg qty | Part No. |
|
3 | 60 | 30 | 1 | D-40727 |
| 4 | 75 | 40 | 1 | D-40749 | |
| 5 | 85 | 55 | 1 | D-40761 | |
| 5 | 150 | 100 | 1 | D-40777 | |
| 6 | 100 | 60 | 1 | D-40808 | |
| 6 | 150 | 100 | 1 | D-40814 | |
| 6 | 200 | 130 | 1 | D-40820 | |
| 6 | 400 | 350 | 1 | D-40836 | |
| 7 | 100 | 60 | 1 | D-40870 | |
| 7 | 150 | 100 | 1 | D-40886 | |
| 7 | 400 | 350 | 1 | D-40892 | |
| 8 | 120 | 80 | 1 | D-40901 | |
| 8 | 150 | 100 | 1 | D-40917 | |
| 8 | 200 | 130 | 1 | D-40923 | |
| 8 | 400 | 350 | 1 | D-40939 | |
| 9 | 120 | 80 | 1 | D-40945 | |
| 10 | 120 | 80 | 1 | D-40951 | |
| 10 | 200 | 130 | 1 | D-40973 | |
| 10 | 400 | 350 | 1 | D-40989 | |
| 11 | 150 | 100 | 1 | D-40995 | |
| 12 | 150 | 100 | 1 | D-41006 | |
| 12 | 200 | 130 | 1 | D-41012 | |
| 12 | 400 | 350 | 1 | D-41028 |

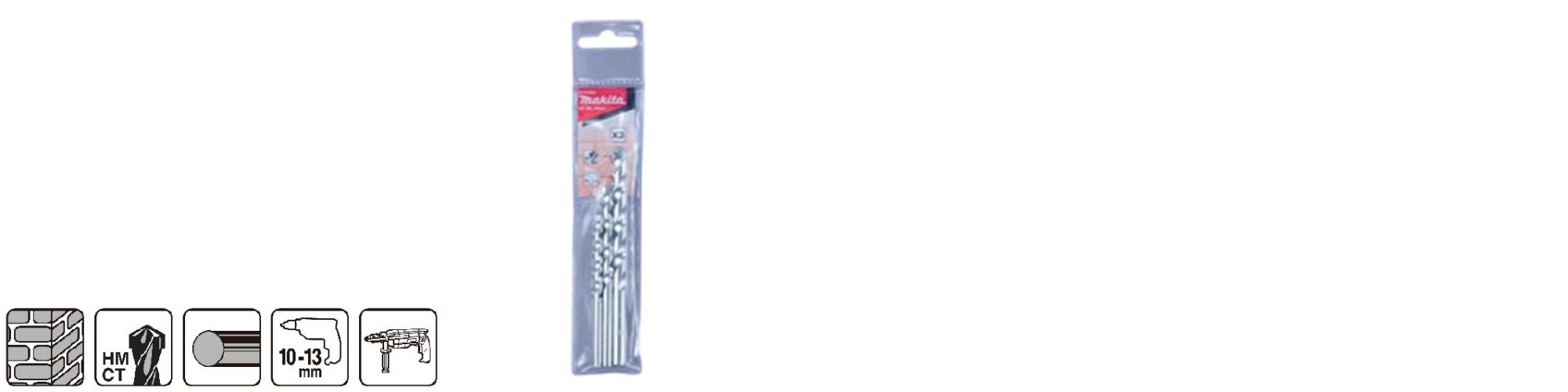

TCT Drill Bit with Straight Shank Brick Assortment
| Range | Size mm | Sales pkg qty | Part No. |
|
5x85, 6x100, 8x120 | 3 | D-41034 |

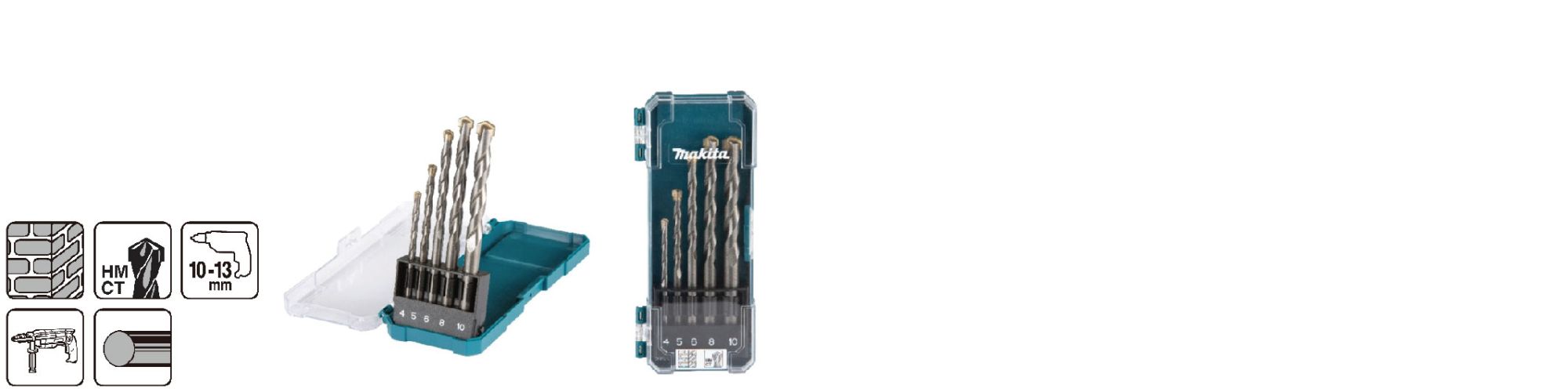

TCT Drill Bit with Straight Shank Brick Assortment in Plastic Case
| Range | Size mm | Sales pkg qty | Part No. |
|
4x75, 5x85, 6x100, 8x120, 10x120 | 5 | D-41040 |
| 4x75, 5x85, 6x100, 8x120, 10x120 | 5 | D-72877 |

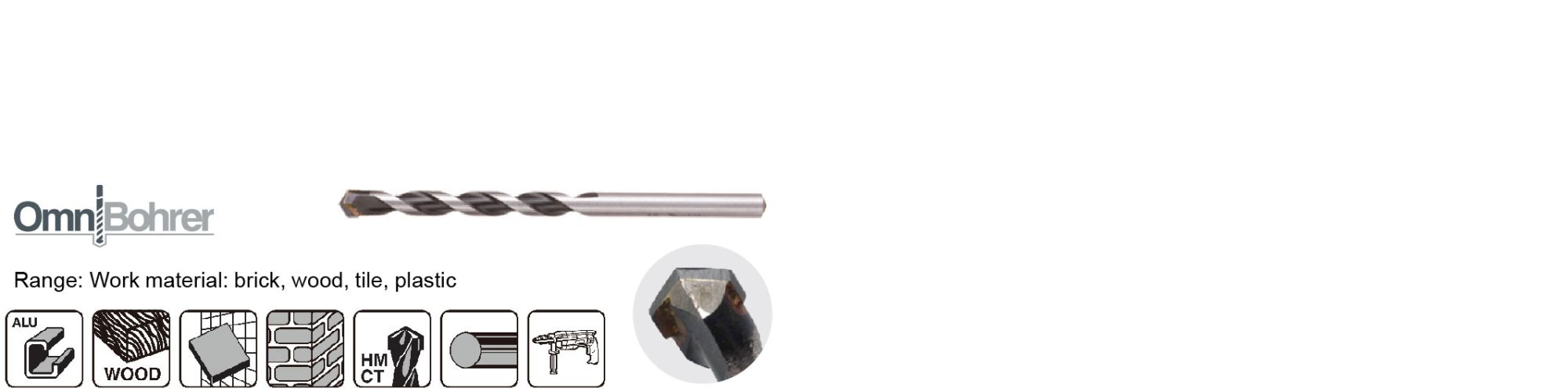

TCT Drill Bit with Straight Shank Multi Material
| Range | Bit dia. mm | Length mm | Working length mm | Sales pkg qty | Part No. |
|
3 | 60 | 28 | 1 | D-30287 |
| 4 | 70 | 35 | 1 | D-30293 | |
| 5 | 85 | 43 | 1 | D-30302 | |
| 5.5 | 85 | 43 | 1 | D-31027 | |
| 5.5 | 100 | 58 | 1 | D-31033 | |
| 5.5 | 150 | 108 | 1 | D-31049 | |
| 6 | 100 | 58 | 1 | D-30318 | |
| 6 | 150 | 108 | 1 | D-30324 | |
| 6.5 | 85 | 43 | 1 | D-31055 | |
| 6.5 | 100 | 58 | 1 | D-31061 | |
| 6.5 | 150 | 108 | 1 | D-31077 | |
| 7 | 100 | 53 | 1 | D-30330 | |
| 7 | 150 | 103 | 1 | D-30346 | |
| 8 | 110 | 57 | 1 | D-30352 | |
| 8 | 150 | 97 | 1 | D-30368 | |
| 9 | 150 | 97 | 1 | D-30374 | |
| 10 | 150 | 97 | 1 | D-30380 | |
| 10 | 400 | 300 | 1 | D-30396 | |
| 11 | 150 | 93 | 1 | D-30405 | |
| 12 | 150 | 93 | 1 | D-30411 | |
| 12 | 600 | 500 | 1 | D-30433 | |
| 13 | 150 | 85 | 1 | D-30449 | |
| 14 | 150 | 85 | 1 | D-30455 |

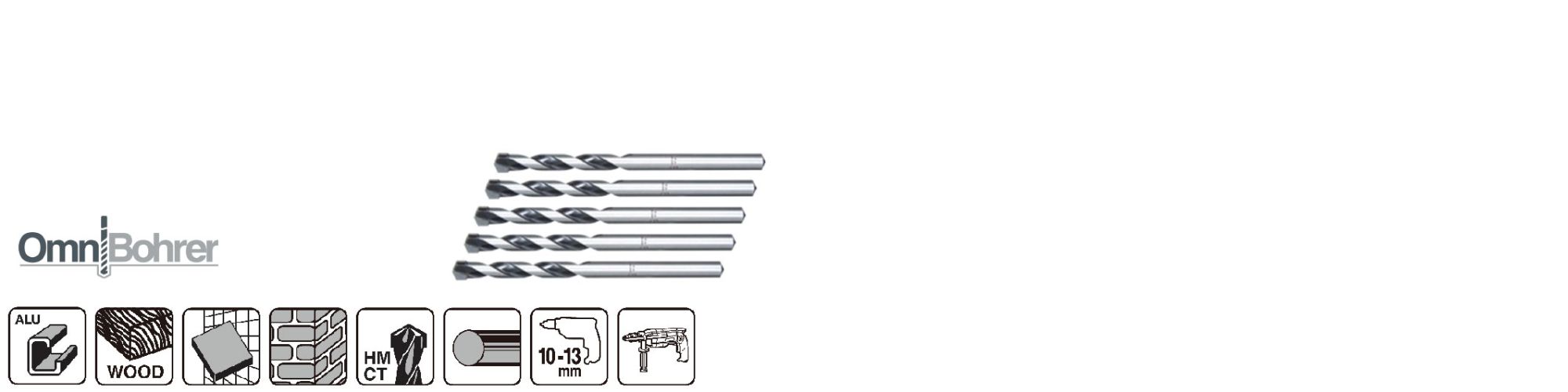

TCT Drill Bit with Straight Shank Multi Material Multiple
| Range | Bit dia. mm | Length mm | Working length mm | Sales pkg qty | Part No. |
|
3 | 60 | 28 | 5 | D-71875 |
| 4 | 70 | 35 | 5 | D-71881 | |
| 5 | 85 | 43 | 5 | D-71897 | |
| 6 | 100 | 58 | 5 | D-71906 | |
| 6 | 150 | 108 | 5 | D-71912 | |
| 8 | 110 | 57 | 5 | D-71928 | |
| 8 | 150 | 97 | 5 | D-71934 | |
| 10 | 150 | 97 | 5 | D-71940 |

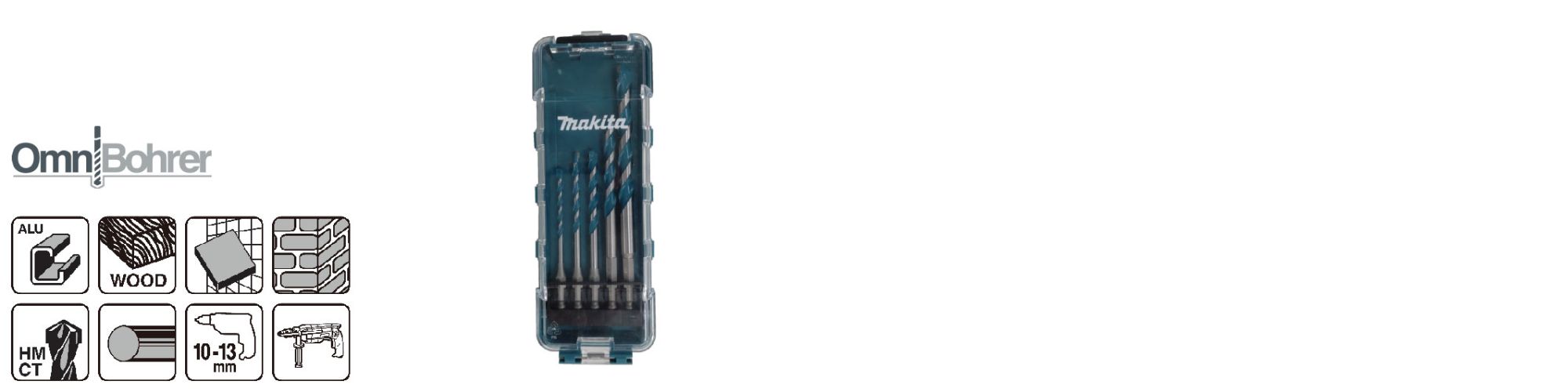

TCT Drill Bit with Straight Shank Multi Material Assortment in Plastic Case
| Range | Size mm | Sales pkg qty | Part No. |
|
4x70, 5x85, 6x100, 8x150, 10x150 | 5 | D-36712 |
| 5x85, 6x100, 8x110, 10x150, 12x150 | 5 | D-30477 |

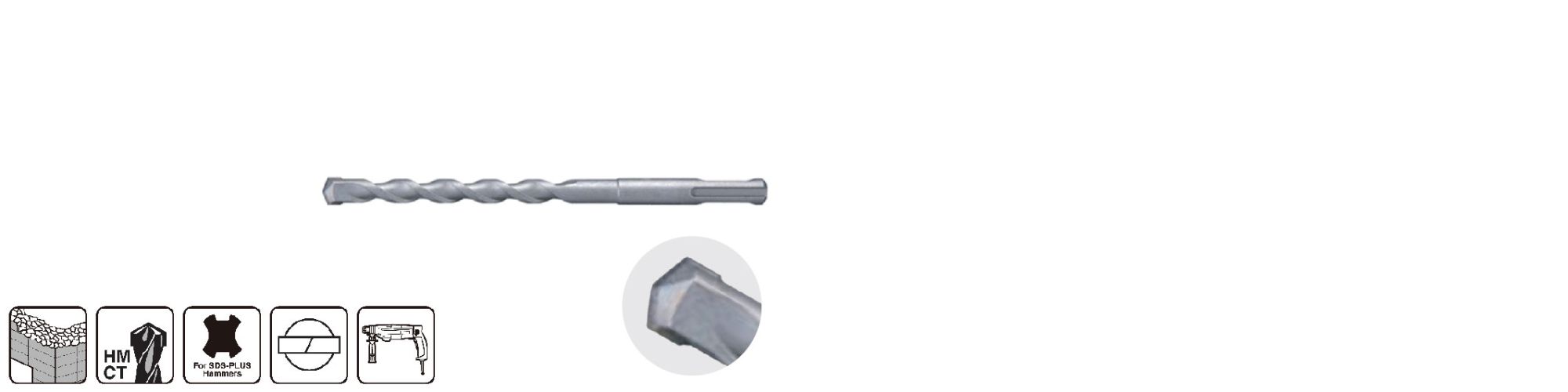

TCT Drill Bit for SDS-PLUS Hammers
| Range | Bit dia. mm | Length mm | Working length mm | Sales pkg qty | Part No. |
|
3.5 | 90 | 30 | 1 | D-16950 |
| 3.5 | 110 | 50 | 1 | D-15665 | |
| 4 | 110 | 50 | 1 | D-00016 | |
| 5 | 110 | 50 | 1 | D-00022 | |
| 5 | 160 | 100 | 1 | D-00038 | |
| 5.5 | 110 | 50 | 1 | D-00044 | |
| 5.5 | 160 | 100 | 1 | D-16106 | |
| 5.8 | 110 | 50 | 1 | D-03268 | |
| 6 | 110 | 50 | 1 | D-00050 | |
| 6 | 160 | 100 | 1 | D-00066 | |
| 6 | 210 | 150 | 1 | D-00072 | |
| 6 | 260 | 200 | 1 | D-25666 | |
| 6.5 | 110 | 50 | 1 | D-00088 | |
| 6.5 | 160 | 100 | 1 | D-00094 | |
| 6.5 | 210 | 150 | 1 | D-45082 | |
| 7 | 110 | 50 | 1 | D-00103 | |
| 7 | 160 | 100 | 1 | D-00119 | |
| 8 | 110 | 50 | 1 | D-00125 | |
| 8 | 160 | 100 | 1 | D-00131 | |
| 8 | 210 | 150 | 1 | D-00147 | |
| 8 | 260 | 200 | 1 | D-00153 | |
| 8 | 460 | 400 | 1 | D-29206 | |
| 9 | 110 | 50 | 1 | D-08040 | |
| 9 | 160 | 100 | 1 | D-08056 | |
| 9 | 210 | 150 | 1 | D-00169 | |
| 9.5 | 210 | 150 | 1 | D-03274 | |
| 10 | 110 | 50 | 1 | D-09117 | |
| 10 | 160 | 100 | 1 | D-00175 | |
| 10 | 210 | 150 | 1 | D-00181 | |
| 10 | 260 | 200 | 1 | D-00197 | |
| 10 | 310 | 250 | 1 | D-00206 | |
| 10 | 460 | 400 | 1 | D-17538 | |
| 11 | 160 | 100 | 1 | D-00212 | |
| 12 | 160 | 100 | 1 | D-00228 | |
| 12 | 210 | 150 | 1 | D-00234 | |
| 12 | 260 | 200 | 1 | D-00240 | |
| 12 | 350 | 290 | 1 | D-16112 | |
| 12 | 460 | 400 | 1 | D-16271 | |
| 12.5 | 160 | 100 | 1 | D-14102 | |
| 12.7 | 160 | 100 | 1 | D-03280 | |
| 12.7 | 350 | 290 | 1 | D-03296 | |
| 13 | 160 | 100 | 1 | D-00256 | |
| 13 | 260 | 200 | 1 | D-25622 | |
| 13 | 350 | 290 | 1 | D-16128 | |
| 14 | 160 | 100 | 1 | D-00262 | |
| 14 | 210 | 150 | 1 | D-21331 | |
| 14 | 260 | 200 | 1 | D-00278 | |
| 14 | 350 | 290 | 1 | D-16134 | |
| 14 | 460 | 400 | 1 | D-17544 | |
| 14.3 | 160 | 100 | 1 | D-03997 | |
| 15 | 160 | 100 | 1 | D-00284 | |
| 15 | 260 | 200 | 1 | D-25638 | |
| 15 | 350 | 290 | 1 | D-16140 | |
| 15 | 460 | 400 | 1 | D-17550 | |
| 16 | 160 | 100 | 1 | D-03981 | |
| 16 | 210 | 150 | 1 | D-00290 | |
| 16 | 260 | 200 | 1 | D-16156 | |
| 16 | 310 | 250 | 1 | D-00309 | |
| 16 | 350 | 290 | 1 | D-16162 | |
| 16 | 460 | 400 | 1 | D-16287 | |
| 17 | 160 | 100 | 1 | D-16178 | |
| 17 | 210 | 150 | 1 | D-00315 | |
| 17 | 260 | 200 | 1 | D-16184 | |
| 17 | 350 | 290 | 1 | D-16190 | |
| 17.5 | 160 | 100 | 1 | D-03305 | |
| 18 | 160 | 100 | 1 | D-16209 | |
| 18 | 210 | 150 | 1 | D-00321 | |
| 18 | 260 | 200 | 1 | D-16215 | |
| 18 | 300 | 240 | 1 | D-00337 | |
| 18 | 350 | 290 | 1 | D-16221 | |
| 18 | 460 | 400 | 1 | D-17566 | |
| 19 | 210 | 150 | 1 | D-00343 | |
| 19 | 350 | 290 | 1 | D-16243 | |
| 19 | 460 | 400 | 1 | D-16293 | |
| 20 | 210 | 150 | 1 | D-00359 | |
| 20 | 260 | 200 | 1 | D-16259 | |
| 20 | 310 | 250 | 1 | D-00365 | |
| 20 | 350 | 290 | 1 | D-16265 | |
| 20 | 460 | 400 | 1 | D-15235 | |
| 22 | 260 | 200 | 1 | D-00371 | |
| 22 | 310 | 250 | 1 | D-08062 | |
| 22 | 460 | 400 | 1 | D-15241 | |
| 24 | 260 | 200 | 1 | D-25644 | |
| 24 | 460 | 400 | 1 | D-16302 | |
| 25 | 260 | 200 | 1 | D-00387 | |
| 25 | 310 | 250 | 1 | D-08517 | |
| 25 | 350 | 290 | 1 | D-03311 | |
| 25 | 460 | 400 | 1 | D-15257 | |
| 26 | 260 | 200 | 1 | D-00393 | |
| 26 | 310 | 250 | 1 | D-08078 | |
| 26 | 460 | 400 | 1 | D-15263 | |
| 28 | 460 | 400 | 1 | D-16318 | |
| 30 | 460 | 400 | 1 | D-17572 |

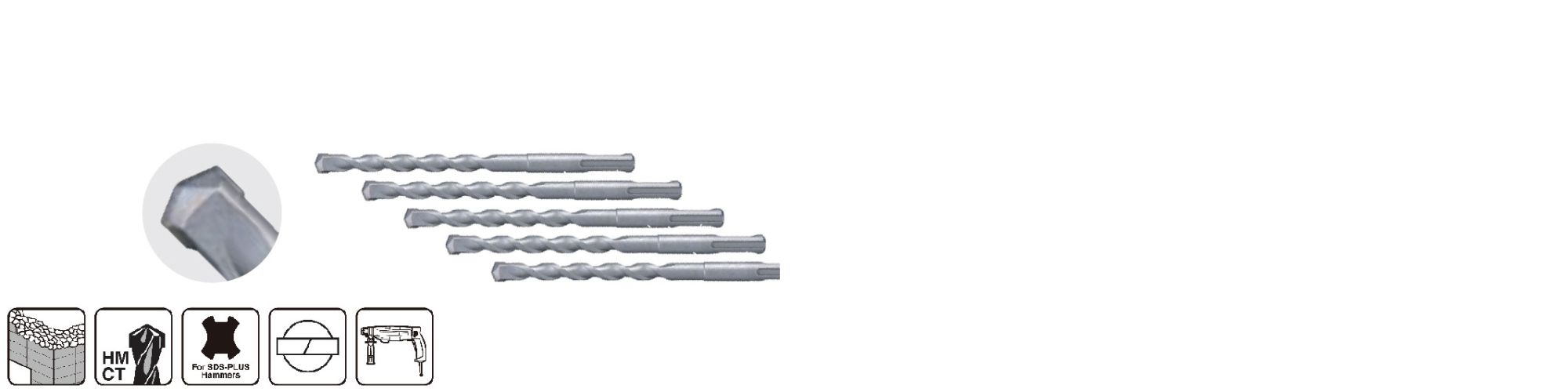

TCT Drill Bit for SDS-PLUS Hammers Multiple
| Range | Bit dia. mm | Length mm | Working length mm | Sales pkg qty | Part No. |
|
6 | 110 | 50 | 25 | D-61612 |
| 6 | 110 | 50 | 50 | D-61628 | |
| 8 | 110 | 50 | 25 | D-61634 | |
| 8 | 110 | 50 | 50 | D-61640 | |
| 10 | 110 | 50 | 25 | D-61656 | |
| 10 | 110 | 50 | 50 | D-61662 |

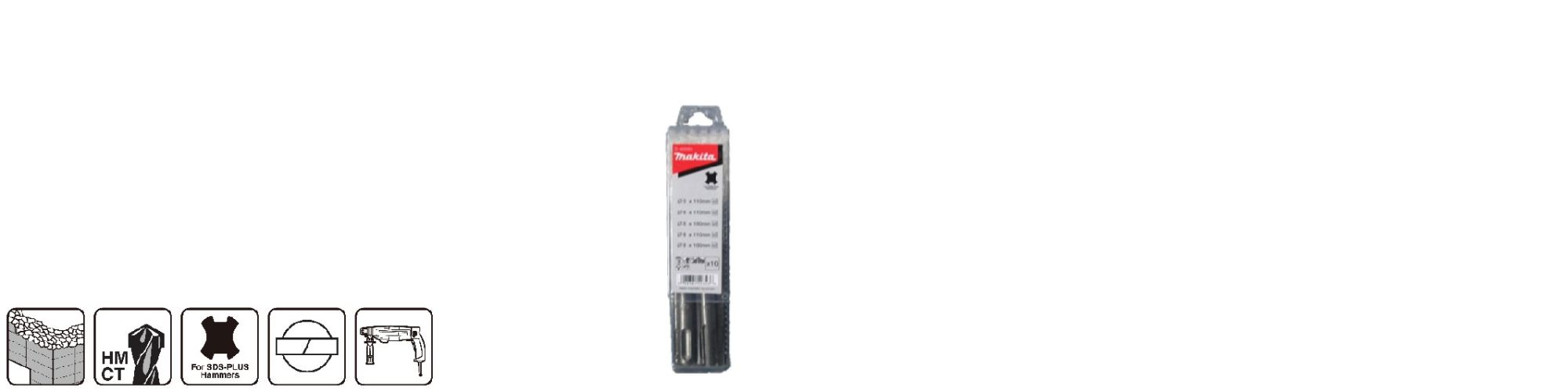

TCT Drill Bit for SDS-PLUS Hammers Assortment in Plastic Case
| Range | Size mm | Sales pkg qty | Part No. |
|
5x110, 6x110, 6x160, 8x110, 8x160 | 5 | D-00795 |
| 5x160, 6x160, 7x160, 8x160, 10x160 | 5 | D-20703 | |
| 5x160, 6x160, 6x160, 8x160, 8x160 | 5 | D-58914 | |
| 5.5x110, 6x160, 7x110, 7x160, 8x160 | 5 | D-03888 | |
| 6x110, 6.5x110, 8x160, 10x160, 12x160 | 5 | D-17784 | |
| 6x110, 6x160, 8x110, 8x160, 10x160 | 5 | D-61678 | |
| 5x110, 6x110, 6x160, 7x110, 7x160 | 25 | D-33853 |
