Diamond
Total: 63 record(s) at page 3 of 6

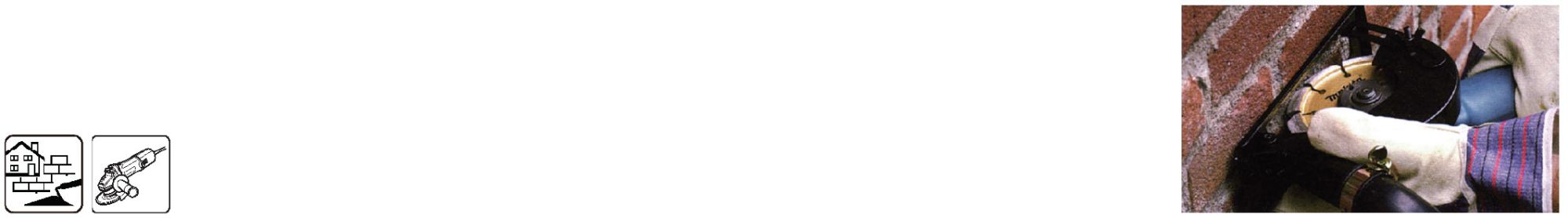

Diamond Wheel Tuck Point Mortar
| Range | Work Material | Outer dia. mm | Tip height mm | Hole dia. mm | Dry/Wet | Sales pkg qty | Part No. |
 |
Mortar | 125 | 8 | 22.23 | Dry | 1 | A-02705 |

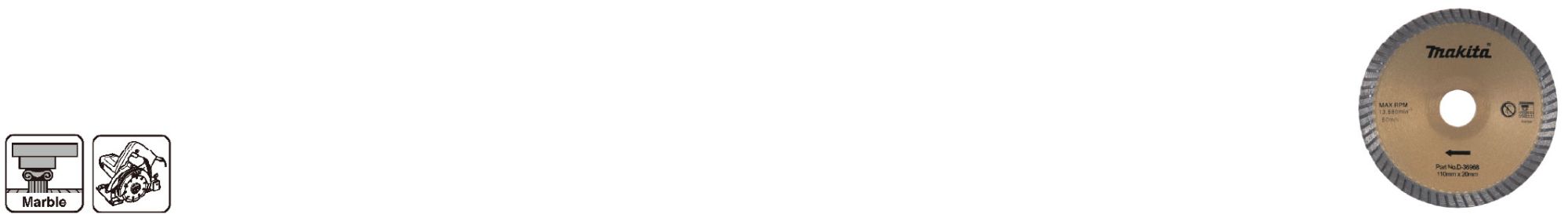

Curved Diamond Wheel Marble Corrugated
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Dry/Wet | Sales pkg qty | Part No. |
 |
Marble | 2 3 4 | 110 | 8 | 20 | Dry | 1 | D-36968 |

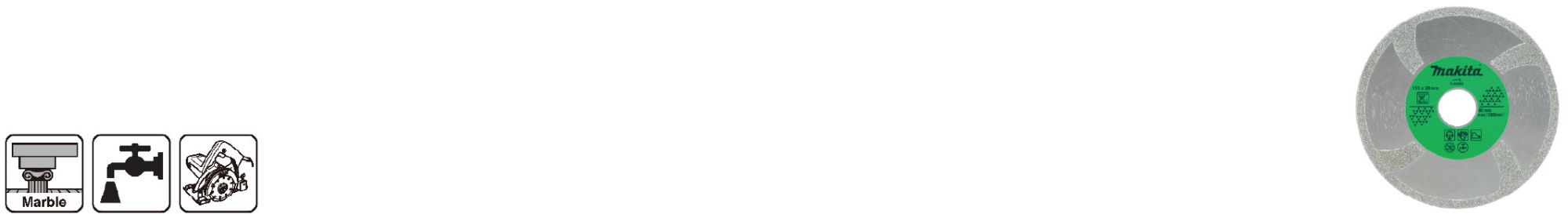

Electroplated Diamond Wheel Marble
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Dry/Wet | Sales pkg qty | Part No. |
|
Marble | 3 | 110 | 5 | 20 | Wet | 1 | D-45004 |

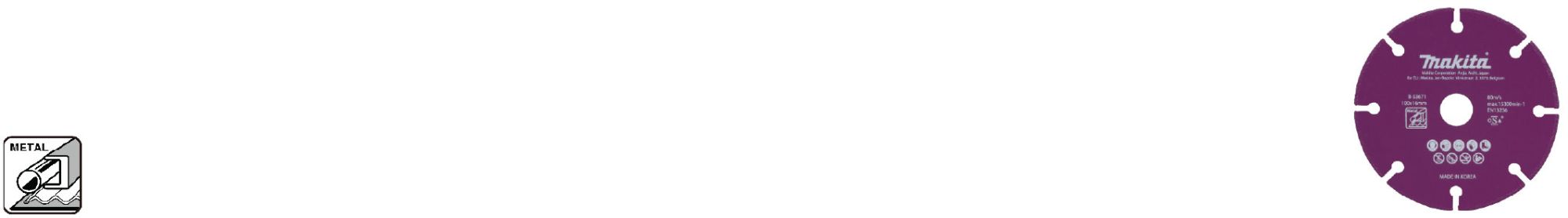

Vacuum Brazed Diamond Wheel Metal Segmented
| Range | Work Material | Outer dia. mm | Tip height mm | Hole dia. mm | Dry/Wet | Standard | Sales pkg qty | Part No. |
| Specialized | Metal | 100 | 1.8 | 16 | Dry | EN13236 | 1 | B-53671 |
| 115 | 1.8 | 22.23 | Dry | EN13236 | 1 | B-53687 | ||
| 125 | 1.8 | 22.23 | Dry | EN13236 | 1 | B-53693 | ||
| 180 | 1.8 | 22.23 | Dry | EN13236 | 1 | B-53702 |

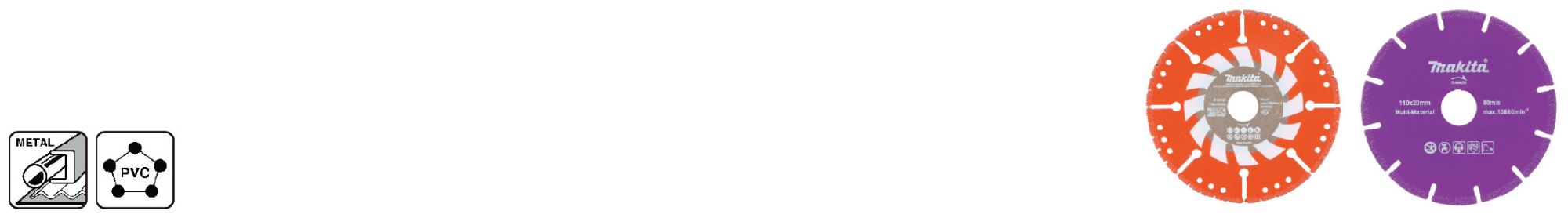

Vacuum Brazed Diamond Wheel Multi Material Segmented
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Ring mm | Dry/Wet | Note | Standard | Sales pkg qty | Part No. |
| Specialized | Metal, Plastic, Reinforced concrete | - | 115 | 5 | 22.23 | - | Dry | - | - | 1.00 | D-58883 |
| - | 180 | 5 | 22.23 | - | Dry | - | - | 1.00 | D-58899 | ||
| 1 2 3 4 | 110 | 5 | 20 | 16 | Dry | - | - | 1.00 | D-44426 | ||
| Metal, Plastic, Wood, Glass, Brick, Fiber cement board, concrete | 1 2 3 4 5 6 7 | 230 | 5 | 22.23 | - | Dry | - | - | 1.00 | A-89894 | |
| 1 2 3 4 5 6 7 | 100 | 3 | 16 | - | Dry | for Rescue | EN13236 | 1.00 | B-66933 | ||
| 1 2 3 4 5 6 7 | 115 | 3 | 22.23 | - | Dry | for Rescue | EN13236 | 1.00 | B-55304 | ||
| 1 2 3 4 5 6 7 | 230 | 3 | 22.23 | - | Dry | for Rescue | EN13236 | 1.00 | B-55326 |

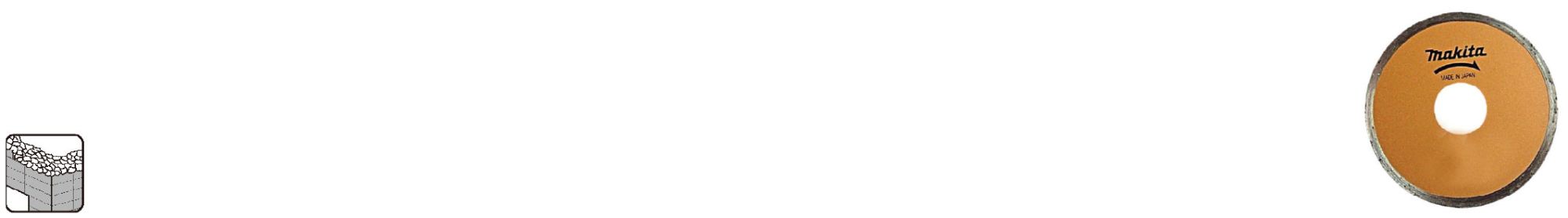

Diamond Wheel for 4103KB Concrete Continuous Rim
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Dry/Wet | Standard | For model | Sales pkg qty | Part No. |
|
Concrete | 1 2 3 4 6 | 80 | 3.5 | 20 | Dry | - | 4103KB | 1 | 792192-6 |
| 1 2 3 4 6 | 80 | 3.5 | 20 | Dry | EN13236 | 4103KB | 1 | B-22012 |

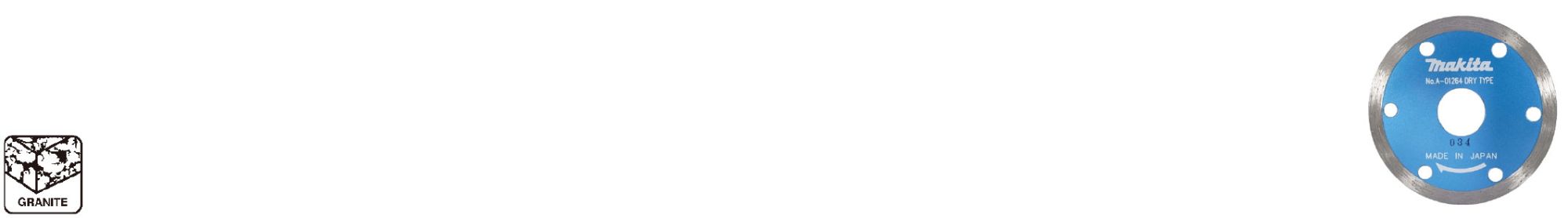

Diamond Wheel for 4103KB Granite Continuous Rim
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Dry/Wet | For model | Sales pkg qty | Part No. |
|
Granite | 1 2 3 4 6 | 80 | 5 | 20 | Dry | 4103KB | 1 | A-01264 |

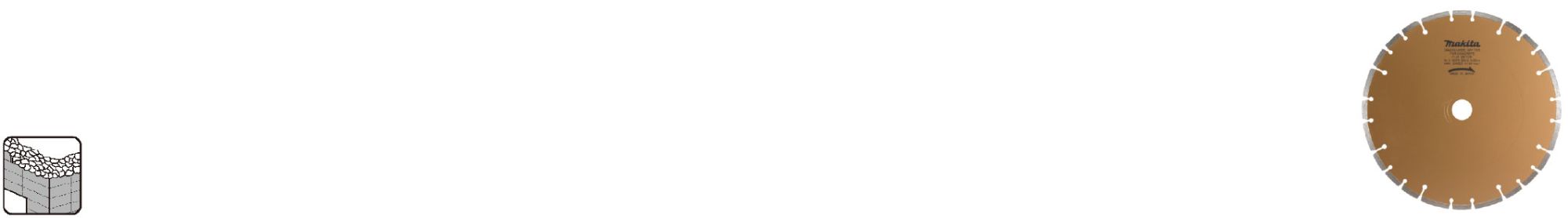

Diamond Wheel for Angle Cutter Concrete Segmented
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Ring mm | Dry/Wet | Sales pkg qty | Part No. |
|
Concrete | 2 3 4 5 | 305 | 7.5 | 30 | 20, 22.23, 25.4 | Dry | 1 | A-02478 |

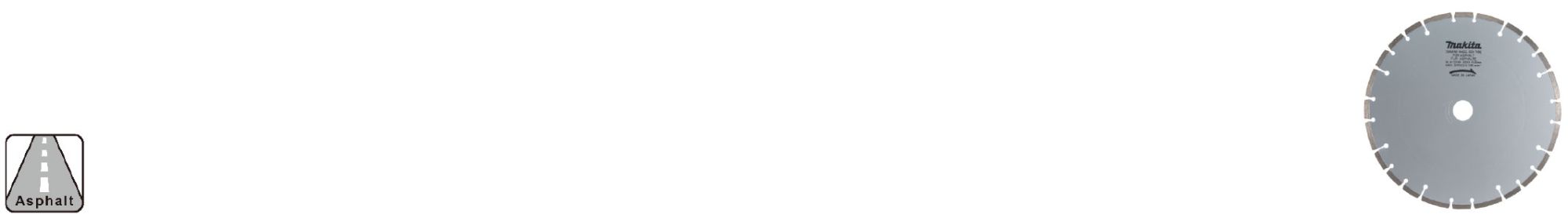

Diamond Wheel for Angle Cutter Asphalt Segmented
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Ring mm | Dry/Wet | Sales pkg qty | Part No. |
|
Asphalt | 5 | 305 | 7.5 | 30 | 20, 22.23, 25.4 | Dry | 1 | A-02484 |

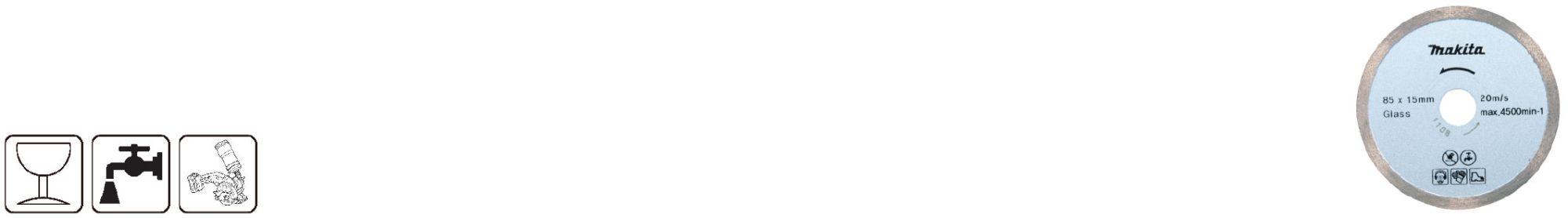

Diamond Wheel for Cordless Cutter Glass Continuous Rim
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Dry/Wet | Sales pkg qty | Part No. |
|
Glass | 6 7 | 80 | 4 | 15 | Wet | 1 | 792296-4 |

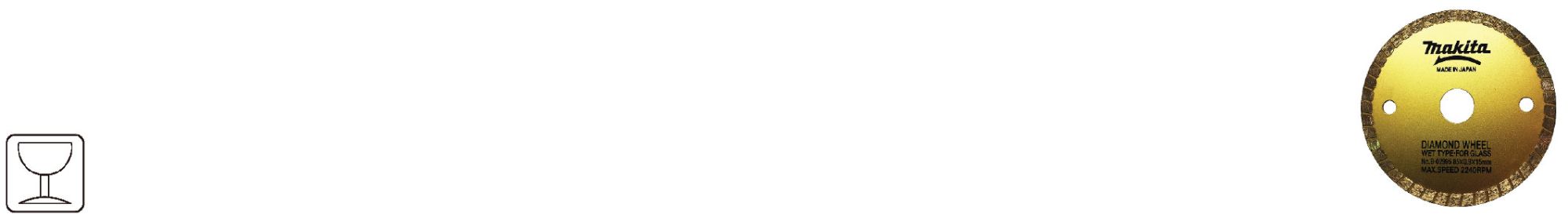

Diamond Wheel for Cordless Cutter Glass Corrugated
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Dry/Wet | Sales pkg qty | Part No. |
|
Glass | 3 4 5 6 7 | 85 | 5 | 15 | Dry | 1 | B-02995 |

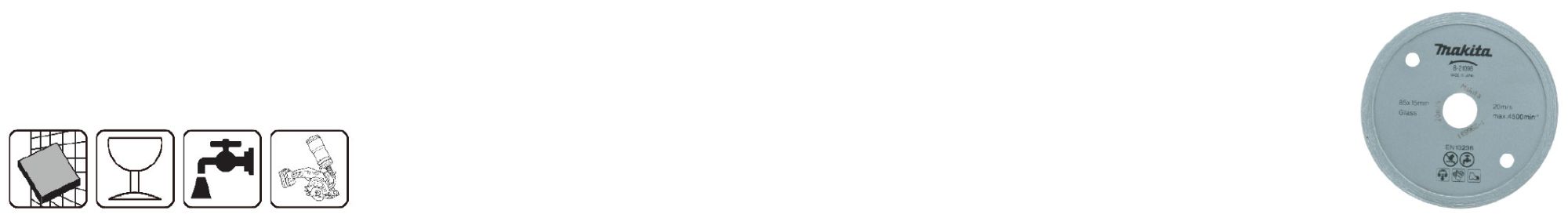

Diamond Wheel for Cordless Cutter Glass Tile Continuous Rim
| Range | Work Material | Material No. | Outer dia. mm | Tip height mm | Hole dia. mm | Dry/Wet | Standard | Sales pkg qty | Part No. |
|
Glass, Tile | 6 7 | 85 | 5.5 | 15 | Wet | - | 1 | B-21082 |
| 6 7 | 85 | 5 | 15 | Wet | EN13236 | 1 | B-21098 |
