Diamond

Total: 63 record(s) at page 2 of 6

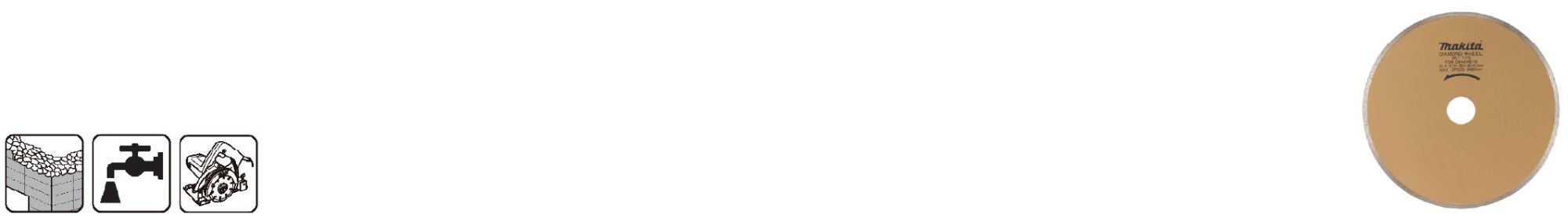

Diamond Wheel Concrete Continuous Rim

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Dry/Wet	Standard	Sales pkg qty	Part No.
	Concrete	1 2 3 4 5 6	110	4	20	Wet	-	1	A-07185
		1 2 3 4 5 6	180	4	25	Wet	-	1	792191-8
		1 2 3 4 5 6	180	4	25	Wet	-	1	A-80117
		1 2 3 4 6	125	5.5.	20	Wet	EN13236	1	B-21951
		1 2 3 6	110	4	20	Wet	-	1	A-85210

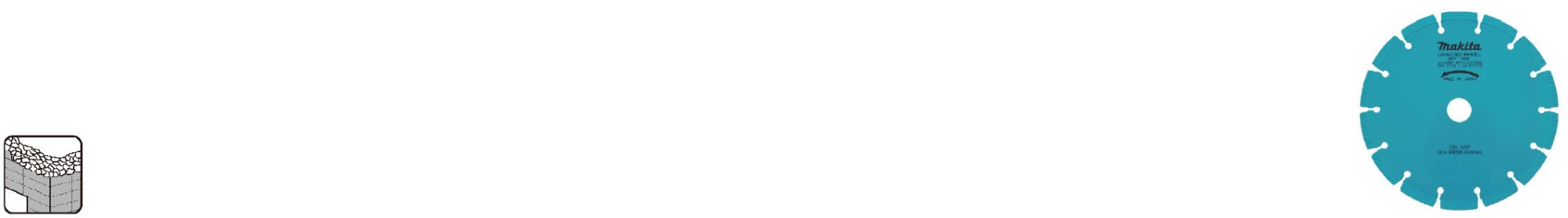

Diamond Wheel Concrete Segmented Wave

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Ring mm	Dry/Wet	Standard	Sales pkg qty	Part No.
	Concrete	1 2 3 4 5	115	7.5	22.23	-	Dry	-	1	B-02048
		1 2 3 4 5	125	7.5	22.23	-	Dry	-	1	B-02054
		1 2 3 4 5	180	8	22.23	-	Dry	-	1	B-02060
		1 2 3 4 5	230	7.5	22.23	-	Dry	-	1	B-02004
		2 3 4	230	7.5	22.23	-	Dry	EN13236	1	A-80173
		2 3 4 5	105	7.5	20	16	Dry	-	1	B-03028
		2 3 4 5	125	7.5	22.23	-	Dry	EN13236	1	A-80438
		2 3 4 5	180	7.5	22.23	-	Dry	-	1	A-83842

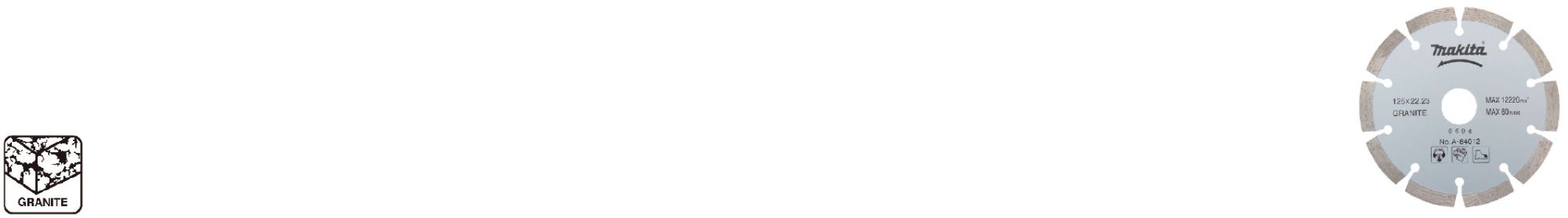

Diamond Wheel Granite Segmented

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Ring mm	Dry/Wet	Sales pkg qty	Part No.
	Granite	1 2 3 4 5	105	7.5	20	16	Dry	1	A-84090
		1 2 3 4 5	125	7.5	22.23	20	Dry	1	A-84012
		1 2 3 4 5	180	6	25.4	22.23	Dry	1	A-84028
		1 2 3 4 5	230	7	22.23	-	Dry	1	A-84408
		1 2 3 4	105	10	20	16	Wet	1	D-44351

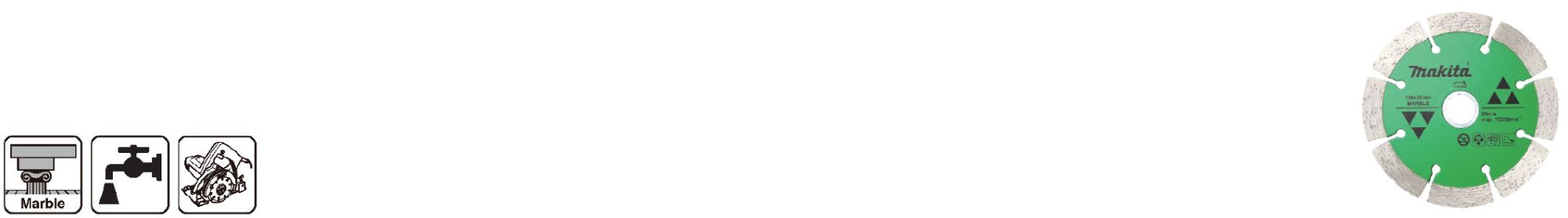

Diamond Wheel Marble Segmented

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Ring mm	Dry/Wet	Sales pkg qty	Part No.
1-star	Marble	1 2 3 4	105	10	20	16	Wet	1	D-44367

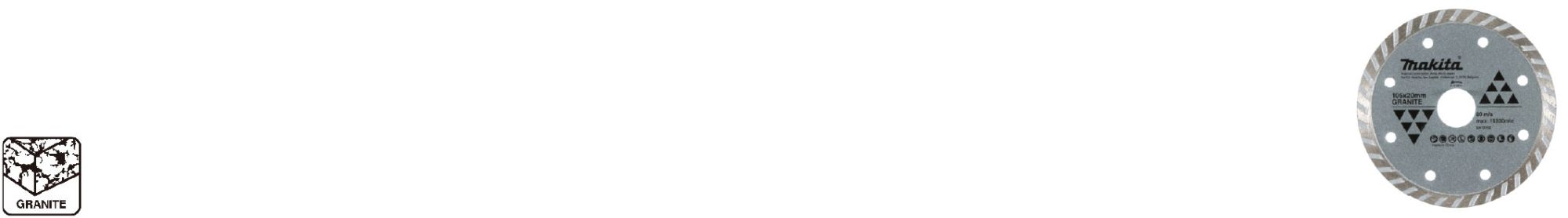

Diamond Wheel Granite Corrugated

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Ring mm	Dry/Wet	Standard	Sales pkg qty	Part No.
	Granite	1 2 3 4 5	105	7.25	20	16	Dry	EN13236	1	A-84040
		1 2 3 4 5	110	8	20	16	Dry	-	1	D-42662
		1 2 3 4 5	115	7.25	22.23	-	Dry	EN13236	1	A-84056
		1 2 3 4 5	125	7.15	22.23	20	Dry	EN13236	1	A-84062
		1 2 3 4 5	180	7.5	25.4	22.23	Dry	EN13236	1	A-84078

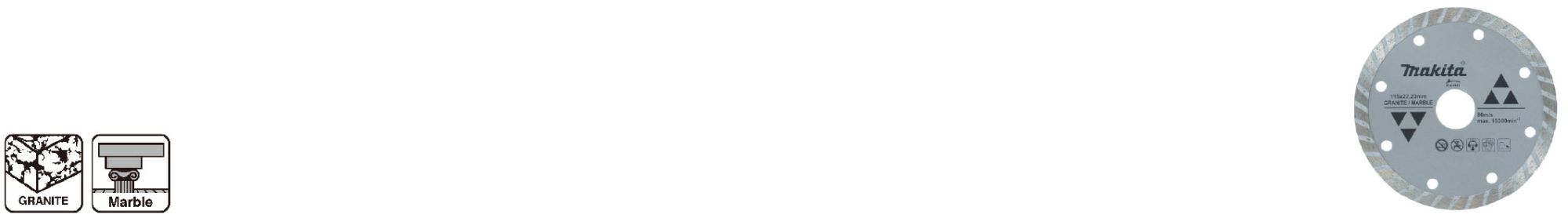

Diamond Wheel Granite Marble Corrugated

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Ring mm	Dry/Wet	Sales pkg qty	Part No.
	Granite, Marble	1 2 3 4	105	7	20	16	Dry	1	D-42553
		1 2 3 4	115	7	22.23	-	Dry	1	D-44301
		1 2 3 4	180	7	22.23	-	Dry	1	D-44317
		1 2 3 4	230	7	22.23	-	Dry	1	D-44323

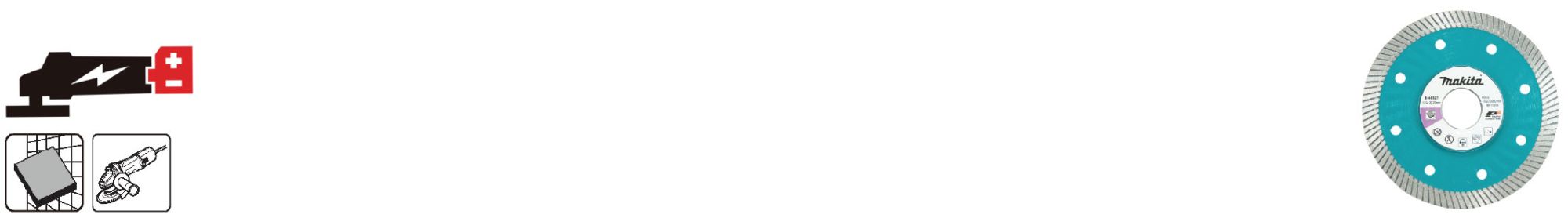

Diamond Wheel Tile Corrugated Ideal for Cordless Angle Grinder

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Ring mm	Dry/Wet	Standard	Sales pkg qty	Part No.
	Porcelain tile	2 3 4 6	105	10	22.23	16	Dry	EN13236	1	B-49030
		2 3 4 6	115	10	22.23	-	Dry	EN13236	1	B-46327
		2 3 4 6	125	10	22.23	-	Dry	EN13236	1	B-46333

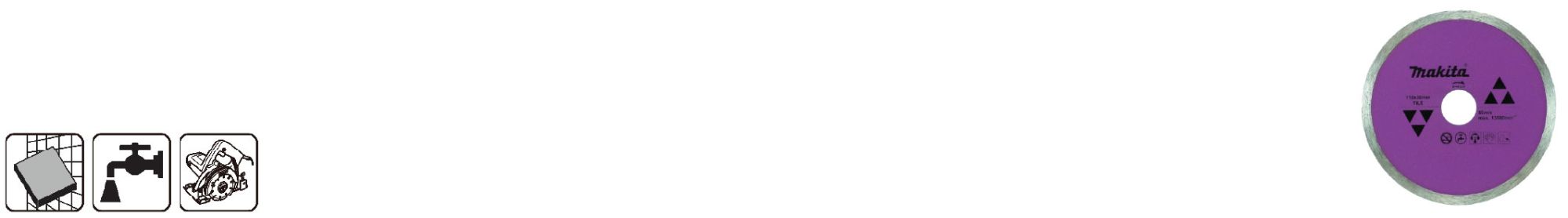

Diamond Wheel Tile Continuous Rim

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Ring mm	Dry/Wet	Sales pkg qty	Part No.
	Ceramic Tile	2 3 4 6	110	5	20	16	Wet	1	D-44258
	Ceramic Tile	2 3 4 6	180	5	25.4	-	Wet	1	D-44264
	Tile	-	105	5	20	16	Dry & Wet	1	D-78271
	Tile	-	180	5	25.4	22.23		1	D-78293

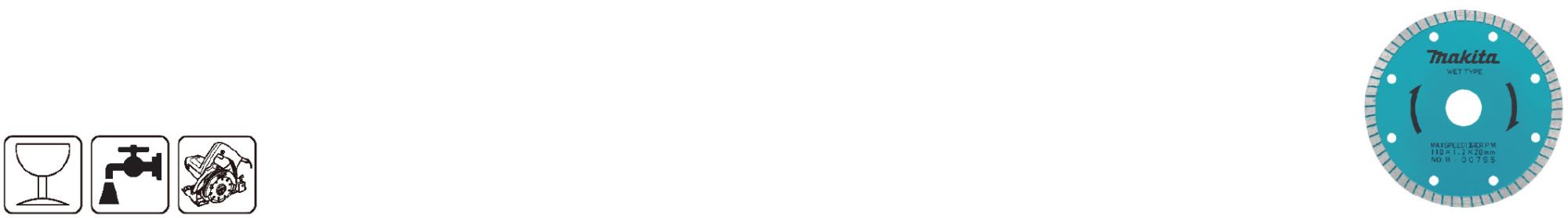

Diamond Wheel Glass Corrugated

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Dry/Wet	Standard	Sales pkg qty	Part No.
	Bulletproof Glass	3 4 5 6 7	110	5.75	20	Wet	EN13236	1	B-22028

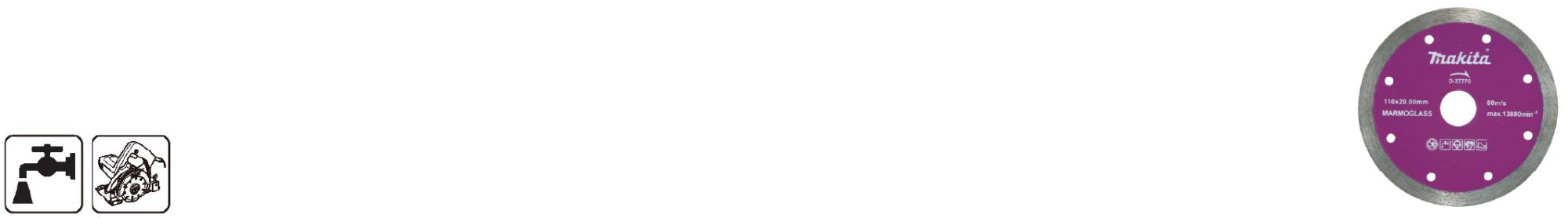

Diamond Wheel Marmoglass Continuous Rim

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Dry/Wet	Sales pkg qty	Part No.
	Marmoglass	6	110	8.5	20	Wet	1	D-37770

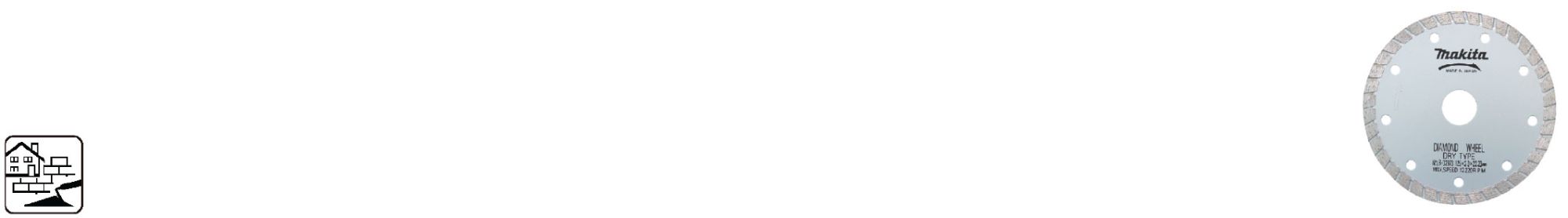

Diamond Wheel Mortar Corrugated

Range	Work Material	Material No.	Outer dia. mm	Tip height mm	Hole dia. mm	Ring mm	Dry/Wet	Sales pkg qty	Part No.
	Mortar	2 3 4 5	115	7.6	22.23	-	Dry	1	B-02967
		2 3 4 5	125	7.8	22.23	20	Dry	1	B-02973
		2 3 4 5	230	8.3	22.23	-	Dry	1	B-01806

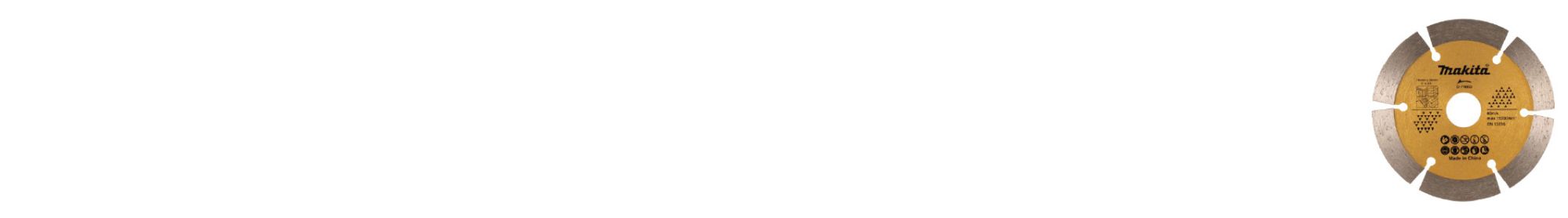

Diamond Wheel Universal Segmented

Range	Work Material	Outer dia. mm	Tip height mm	Hole dia. mm	Ring mm	Dry/Wet	Standard	Sales pkg q'ty	Part No.
	Concrete, Brick, Limestone, Roof tile	105	12	20	16	Dry & Wet	EN 13236	1	D-74083
