Product Detail
Features
- Easy operation
Developed specially for cutting only, allowing for lightweight design to provide excellent maneuverability - Open type for easy cutting of cable at desired position
- For cutting Al / Cu cable
- Automatic reverse function
The movable blade automatically returns to the set position after the cutting is completed - Adjustable blade return volume
The blade opening angle can be adjusted to suit the diameter of the cable to be cut - One LED job light with afterglow function
Specification
Thumbnail | |

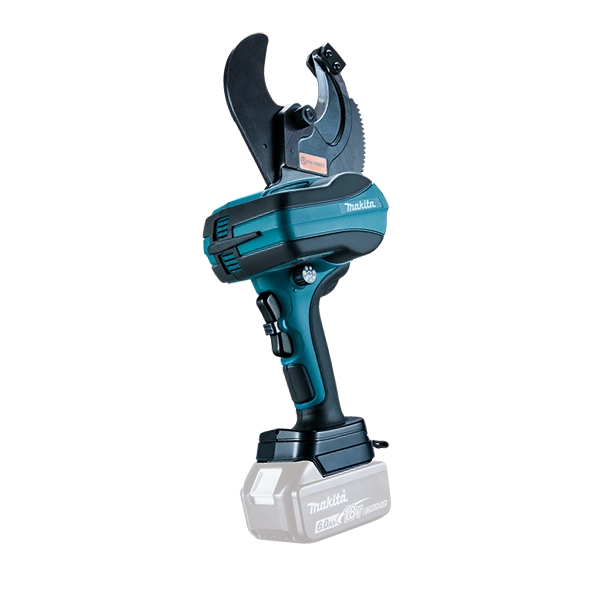

Model Name | DTC101ZK |
Product Name | 18V Cordless Cable Cutter |
Max Blade Opening Width | 50 mm (2”) |
Max Cable Cutting Capacity | 600V - CV: 500 mm² single-core (Ø 38 mm [1-1/2”]) 6600V - CV: 500 mm² single-core (Ø 45 mm [1-3/4”]) 600V - IV: 500 mm² single-core (Ø 35 mm [1-3/8”]) 600V - VVR: 150 mm² triple-core (Ø 47 mm [1-7/8”]) |
Dimensions (L x W x H) | 116 × 190 × 430 mm (4-9/16 × 7-1/2 × 17”) |
Net Weight | 3.6 kg (7.9 lbs.) |
